$108.00
The OMB.915.B08F21 is a fiberglass omnidirectional outdoor antenna, operating in the 915 MHz ISM band. The antenna has an 8 dBi high-peak gain, providing a large coverage area. Typical applications are in ISM, WLAN, RFID, SigFox, LoRa, and LPWA networks.
The omnidirectional antenna collinear dipole design means it radiates uniformly in the azimuth with a high gain, providing coverage over long distances, thus minimizing the number of cells or nodes needed in a network.
The UV-resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It has been designed to withstand a high wind load. The integrated aluminum mounting bracket is perfect for directly mounting the antenna onto a pole or a wall.
The connector is industry standard N-type female but can be customized subject to MOQ. Other frequencies and gains are also available.
Wind-resistance >150 mph (>241 km/h)
| Weight | 6 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Model Number | OMB.915.B08F21 |
| Brand | Taoglas |
| Dimensions | 1474 mm (58.03 in.) |
| Temperature | Operating: –40 °C to 60 °C Storing: –40 °C to 80 °C |
| Antenna Placement | External Antennas |
| Antenna Application | Crypto Mining |
| Antenna Technology | 433/868/915 MHz |
| Antenna Frequency | 915 MHz |
| Mounting | Pole Mount |
| Antenna Connector | N-Type (F) |
| Color | White |
| Certifications | RoHS (EU) |
| Antenna Type | Omni (Omni-Directional) |
| Antenna Frequency Type | LoRa-433/868/915 MHz |
| Gain | 8 dBi |
| Connector Type | N Type Female |
| Application | LoRa/LoRaWAN |
| Material Connector | Fiberglass |
| Nominal Impedance | 50Ω |
| Power | 50W |

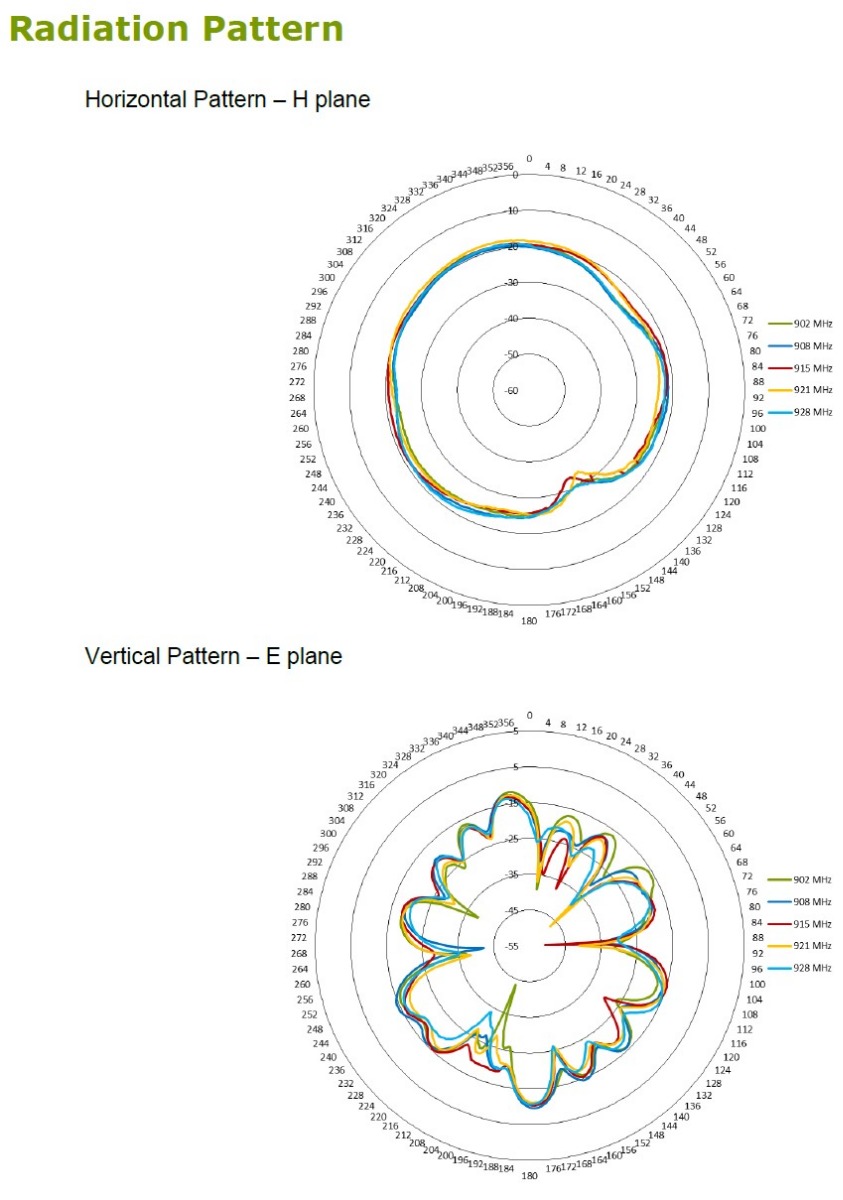

| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 14° |
| Style Type | Omni-Directional |
| Center Frequency | 915 MHz |

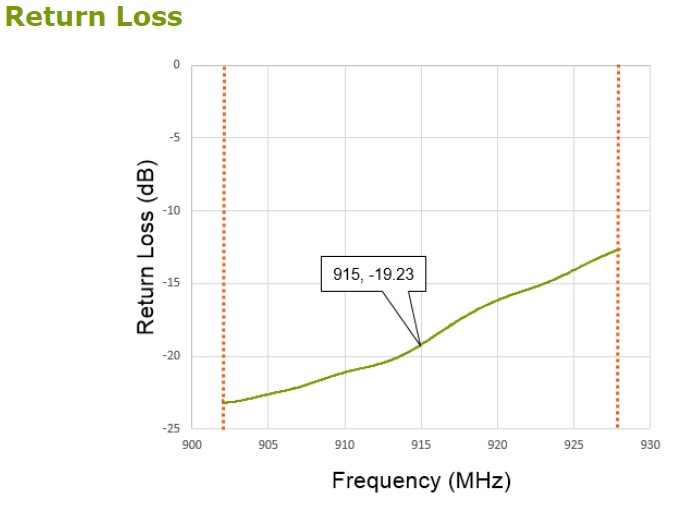

| VSWR | ≤1.5 |
| Form Factor | Outdoor, Outdoor Fiberglass |
| Sub-Type | Omni |
| Polarization | Vertical |
