Wind-resistance >150 mph (>241 km/h)
$999.00
The OMB.915.B12F21 is a fiberglass omni-directional outdoor antenna, operating in 915 MHz ISM band. The antenna has an 10 dBi, high-peak gain, providing a large coverage area. Typical applications are in ISM, WLAN, RFID, SigFox, LoRa, and LPWA networks.
The omni-directional antenna collinear dipole design means it radiates uniformly in the azimuth with a high gain, providing coverage over long distances, thus minimizing the number of cells or nodes needed in a network.
The UV-resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It has been designed to withstand a high wind load. The integrated aluminum mounting bracket is perfect for directly mounting the antenna onto a pole or a wall.
The connector is industry standard N-type female, but can be customized subject to MOQ. Other frequencies and gains also available.
| Weight | 6 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Model Number | OMB.915.B12F21 |
| Brand | Taoglas |
| Dimensions | 2240 mm (88.19 in.) |
| Temperature | Operating: –40 °C to 60 °C Storing: –40 °C to 80 °C |
| Antenna Placement | External Antennas |
| Antenna Application | Crypto Mining |
| Antenna Technology | ISM |
| Antenna Frequency | 915 MHz |
| Mounting | Pole Mount |
| Antenna Connector | N-Type (F) |
| Color | White |
| Certifications | REACH (EU), RoHS (EU) |
| Antenna Type | Omni (Omni-Directional) |
| Antenna Frequency Type | LoRa-433/868/915 MHz |
| Gain | 10 dBi |
| Connector Type | N Type Female |
| Application | LoRa/LoRaWAN |
| Material Connector | Fiberglass |
| Nominal Impedance | 50Ω |
| Power | 200W |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 12° |
| Style Type | Omni-Directional |
| Center Frequency | 915 MHz |

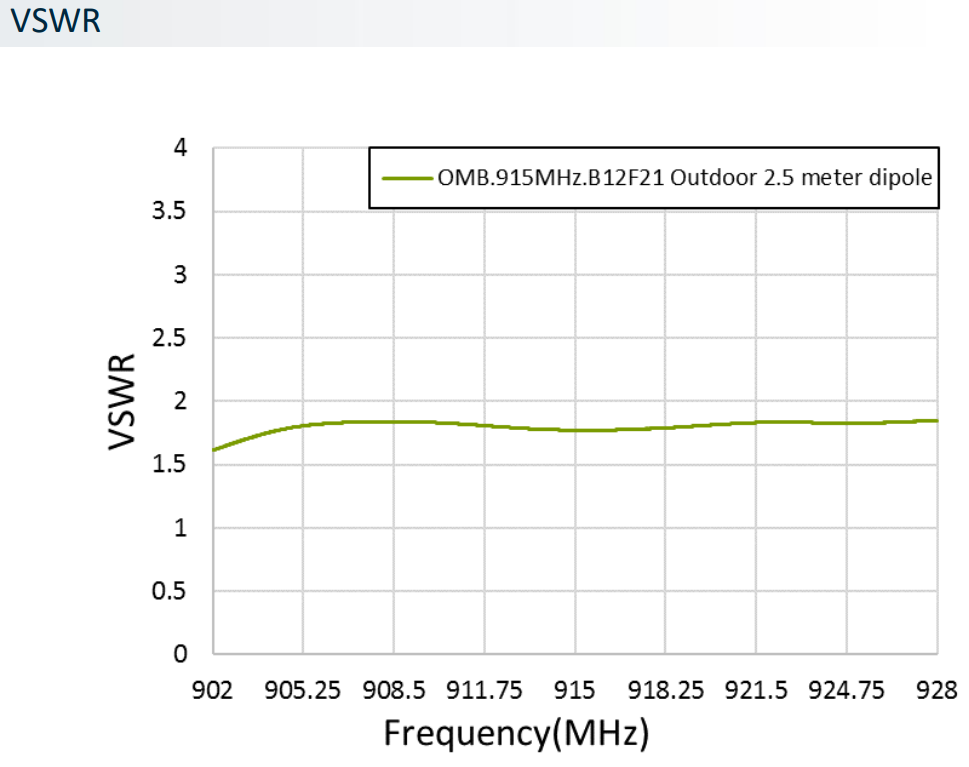

| VSWR | <2:1 |
| Form Factor | Outdoor, Outdoor Omni |
| Sub-Type | Omni |
| Polarization | Vertical |
