LTE wide-band flex antenna
$12.00
The patent-pending FXUB63 flexible wideband antenna has been designed to cover all working frequencies in the 698–3000 MHz spectrum, and covering all Cellular, 2.4 GHz Wi-Fi, ISM, and AGPS. The antenna has a flexible body with excellent efficiencies on all bands, ground independent, with cable and connector for easy installation.

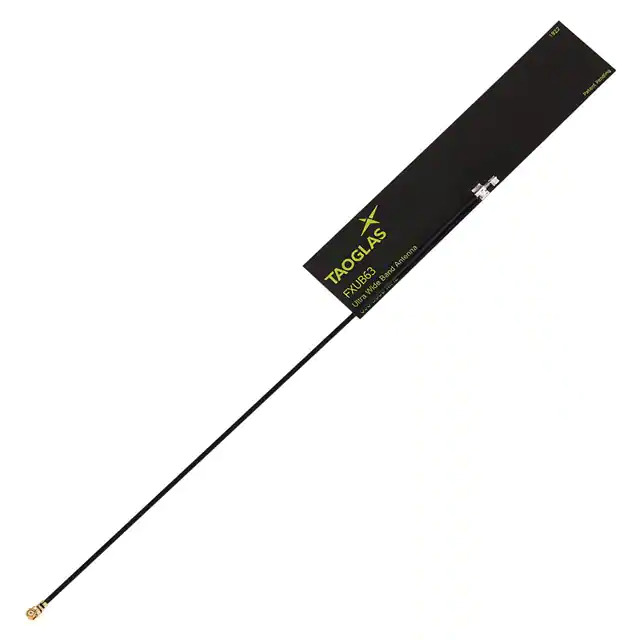

The FXUB63 flexible polymer antenna, at 96×21×0.2 mm, is ultra-thin and wideband with high efficiencies across the bands. It is assembled by a simple peel-and-stick process, attaching securely to non-metal surfaces via 3M adhesive. It enables designers to use only one antenna to cover all common LTE frequencies.
The FXUB63 antenna is a durable, flexible polymer antenna with a peak gain of 5 dBi, an efficiency of more than 45% across the bands, and is designed to be mounted directly onto a plastic or glass cover. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product. It is ground-plane independent and delivered with a cable and connector for easy connection to the wireless module or customer PCB.
Cables and connectors are customizable. Like all such antennas, care should be taken to mount the antenna at least 10 mm from metal components or surfaces, and ideally, 20 mm for best radiation efficiency.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 3.78 × 0.83 × 0.01 in |
| Polarization | Linear |
| Brand | Taoglas |
| Model Number | FXUB63.24.0150B |
| Dimensions | 96 mm × 21 mm × 0.2 mm (3.78 in. × 0.826 in. × 0.007 in.) |
| Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Antenna Placement | External Antennas |
| Antenna Technology | Cellular, 4G/3G/2G, LTE |
| Antenna Frequency | 4G Bands |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 6 (800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1700/1800 MHz), Band 11 (1500 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 21 (1500 MHz), Band 24 (1600 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 27 (450 MHz), Band 28 (700 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz), Band 85 (700 MHz) |
| Mounting | Adhesive Mount |
| Cable Length | 150 mm (5.9 in.) |
| Antenna Connector | I-PEX MHF 1 |
| Color | Black |
| Certifications | REACH (EU), RoHS (EU) |
| Antenna Type | Window/Adhesive Mount |
| Antenna Frequency Type | 4G LTE/3G Cellular |
| Gain | 5 dBi |
| Connector Type | u.FL/I-PEX |
| Material Connector | Polymer |
| Nominal Impedance | 50Ω |
| Power | 5W |
| Center Frequency | 698–3000 MHz |
| VSWR | 2.3 Max. |
| Form Factor | Adhesive Mount |
| Sub-Type | Surface Mount |
| Efficiency | >45% |
