☔ IP68 rated
🍃 Wind-resistance 100 mph (160 km/h)
⚓ With 9.3 dBi gain, the Maritime 10 is a single-cellular antenna that can keep you connected even farther away from the shore.
🚤 Small and 5G-ready, this antenna is a future-proof choice for any maritime applications.
📶 The antenna is designed for cellular bands but also covers both 2.4 GHz and 5 GHz Wi-Fi frequencies. To use the antennas for Wi-Fi, you will require an SMA to RP-SMA adapter.
$349.00
5G can reach speeds 10× faster than 4G LTE. Download movies in seconds.
Certified quality protection from dust, water, and UV allows you to use it even in poor weather conditions.
Increased signal strength for a stronger connection and less interference.

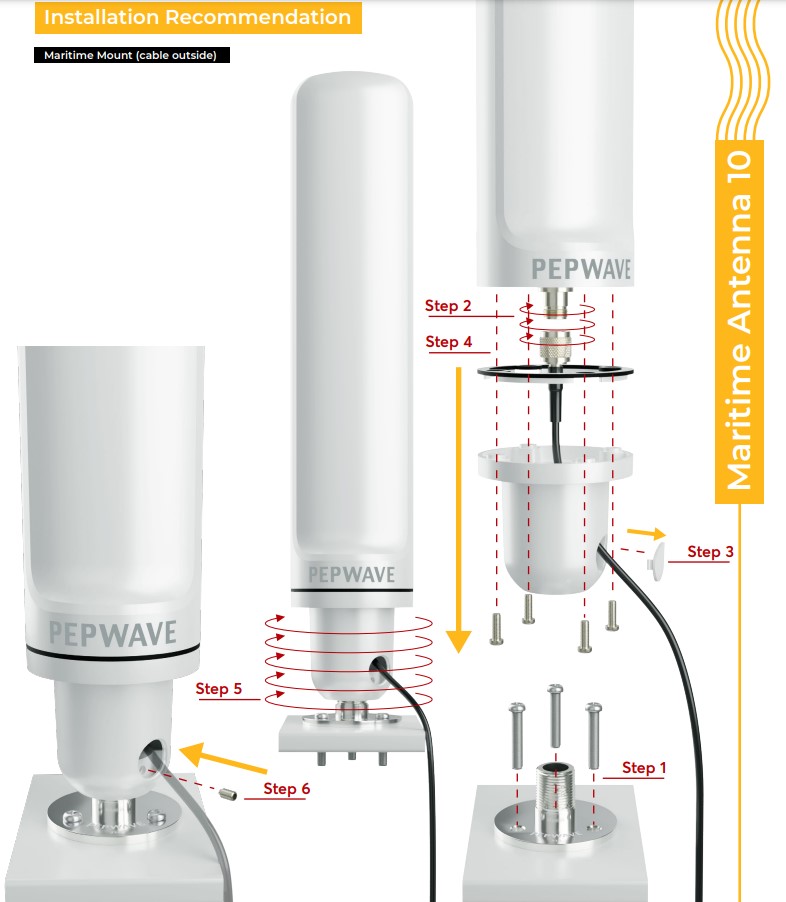

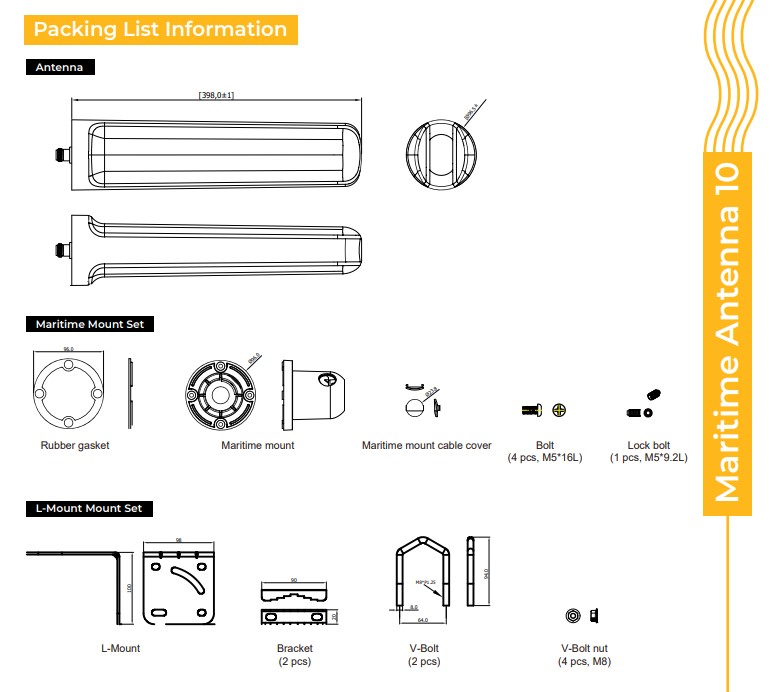

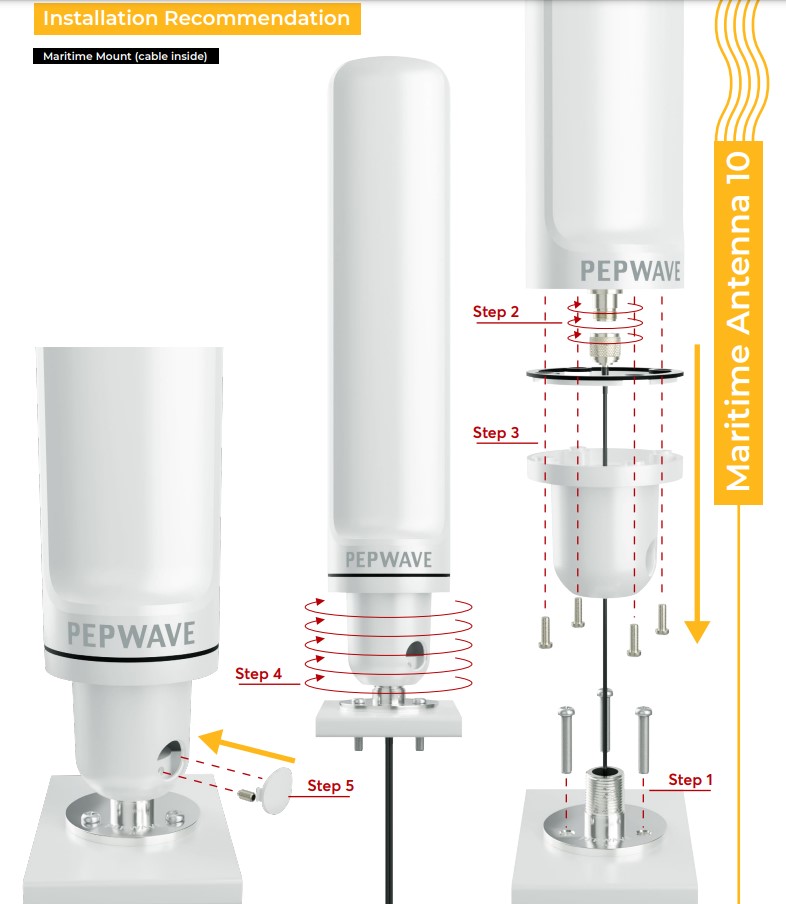

Includes everything you need for maritime and deck mounting, as well as an L-bracket for horizontal or vertical pole mounting. (Does not include cable.)
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 19.04 × 3.78 × 0.75 in |
| VSWR | <2.8 at 617–960 MHZ; <2.1 at 1710–4200 MHz |
| Polarization | Linear |
| Brand | Peplink |
| Model Number | ANT-MR-10-N-W |
| Dimensions | 483.5 mm × 96 mm (19.04 in. × 3.78 in.) |
| Temperature | –40 °C to 80 °C (–40 °F to 176 °F) |
| Antenna Placement | External Antennas |
| Application | Maritime |
| Antenna Technology | Cellular, 5G, 5G/4G MIMO, LTE |
| Antenna Frequency | 4G Bands, 5G Bands |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 6 (800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1700/1800 MHz), Band 11 (1500 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 21 (1500 MHz), Band 24 (1600 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz), Band 85 (700 MHz) |
| Mounting | Deck/Flange/Marine Mount, Pole Mount |
| Antenna Connector | N-Type (F) |
| Color | White |
| Certifications | REACH (EU), RoHS (EU), WEEE (EU) |
| Antenna Type | Omni (Omni-Directional) |
| Antenna Frequency Type | 5G/LTE, 4G LTE/3G Cellular |
| Gain | 9 dBi |
| Connector Type | N Type Female |
| Application | Maritime |
| Material Connector | PC |
| Nominal Impedance | 50Ω |
| Power | 10W |
| Style Type | Omni-Directional |
| Center Frequency | 600–4200 MHz |
| Form Factor | Outdoor Omni |
| Sub-Type | Omni |
