Peplink Maritime 20G Antenna | ANT-MR-20G-S-W-6 | 5G/4G LTE | GPS | White | SMA Male | Dual-Band Wi-Fi Support with Adapter

IP68 rated
🍃 Wind-resistance 100 mph (160 km/h)

With two cellular channels, the Maritime 20G is a 5G-ready antenna to serve maritime deployments with its ultra-wide bandwidth.
🚤 Equipped with high-gain LNA, the built-in GPS receiver is ideal for tracking.
📶 The antenna is designed for cellular bands but also covers both 2.4 GHz and 5 GHz Wi-Fi frequencies. To use the antennas for Wi-Fi, you will require an SMA to RP-SMA adapter.

$449.00

  • Note: The listed price includes all applicable import duties and tariffs—no hidden fees at checkout.

Description

5G ready

5G can reach speeds 10× faster than 4G LTE. Download movies in seconds.

IP68 rated and UV proof

Certified quality protection from dust, water, and UV allows you to use it even in poor weather conditions.

Designed for long range

Increased signal strength for a stronger connection and less interference.

GPS support

Includes active and high-performance GPS receiver ideal for location tracking.

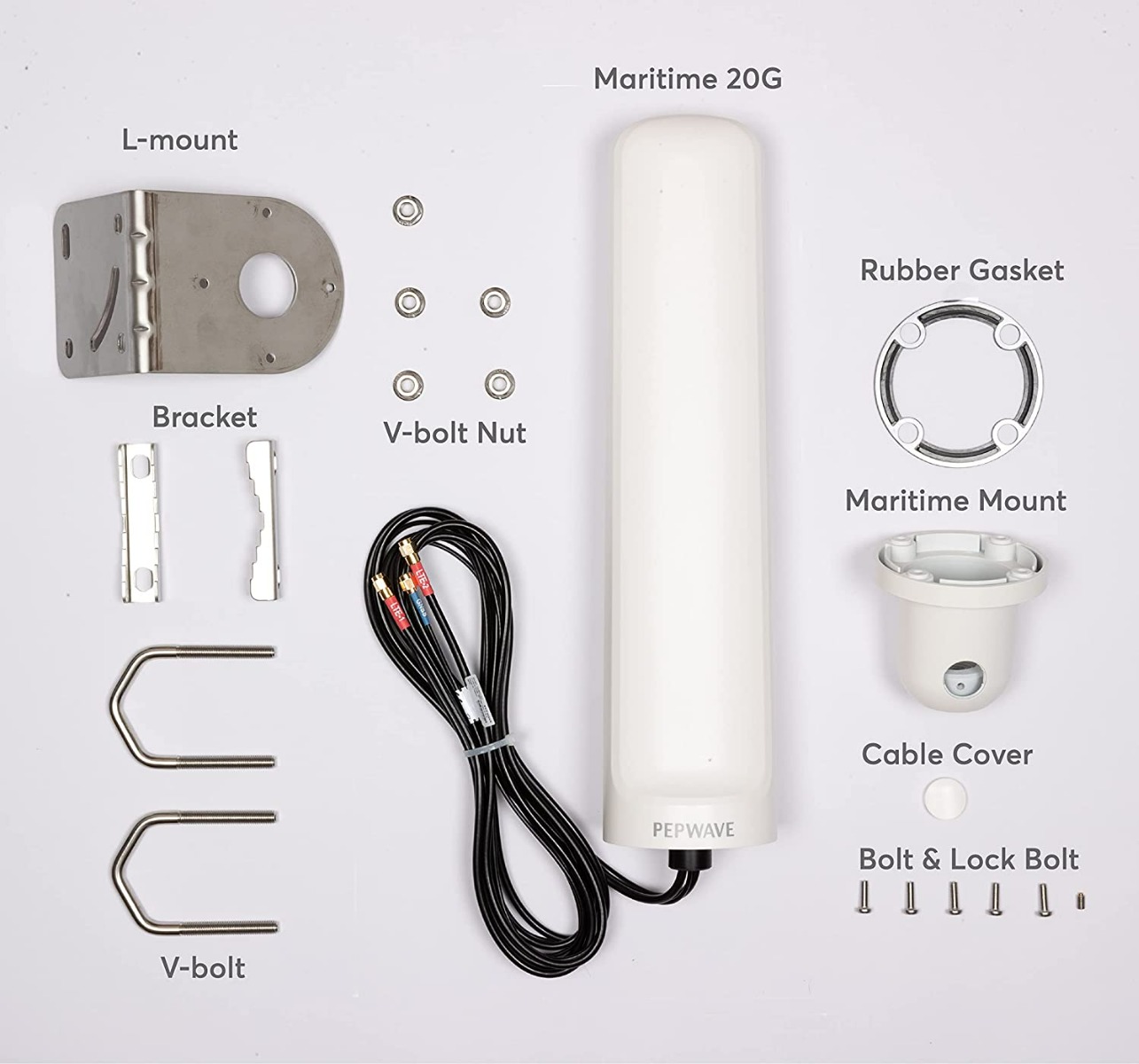

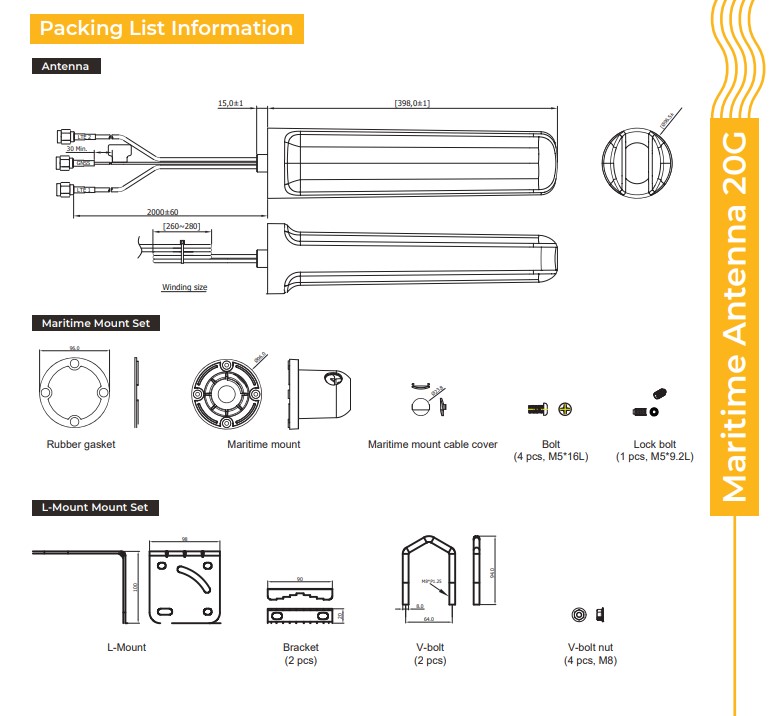

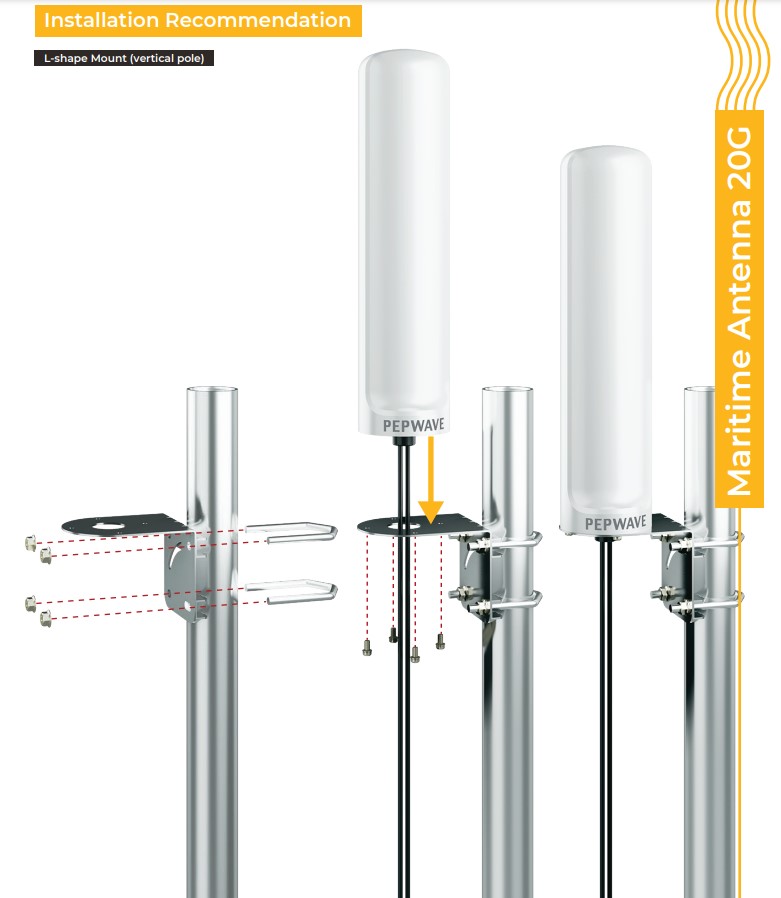

Versatile installation options

Includes everything you need for maritime and deck mounting, as well as an L-bracket for horizontal or vertical pole mounting.

Additional information

Weight 5.5 lbs
Dimensions 19.04 × 3.78 × 0.75 in
VSWR

<2.5 at 410–470 MHz; <3.0 at 617–960 MHZ; <2.5 at 1710–4200 MHz

Polarization

Linear

Brand

Peplink

Model Number

ANT-MR-20G-S-W-6

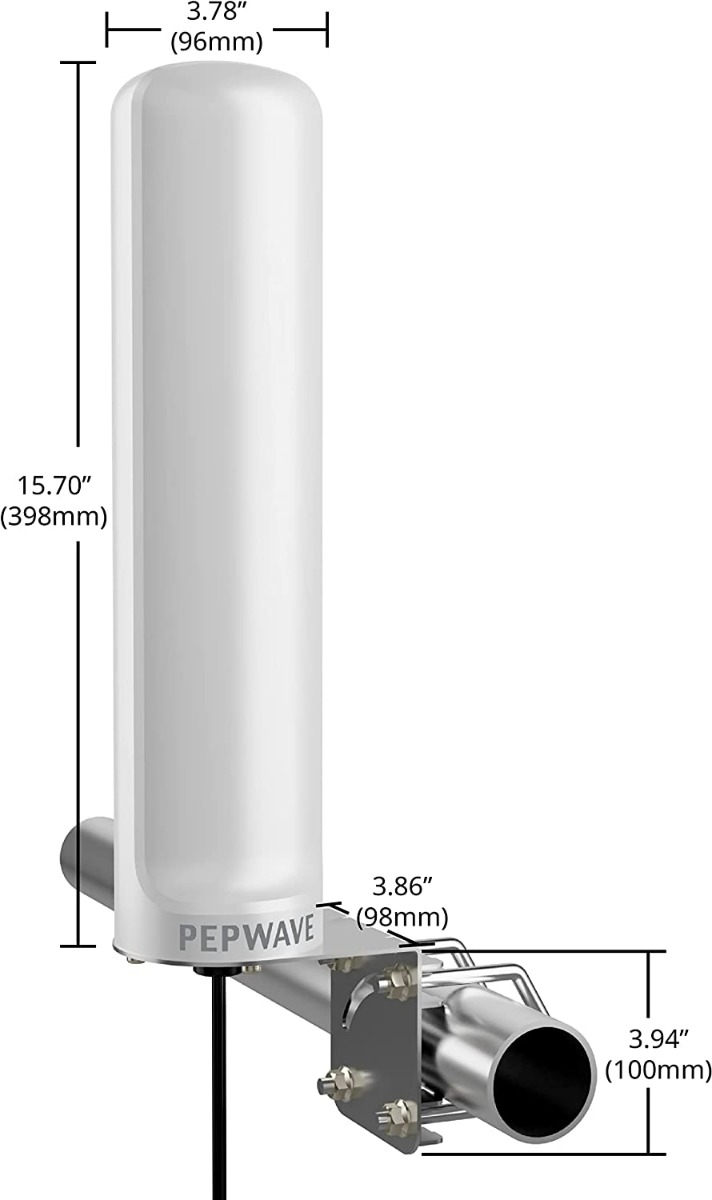

Dimensions

483.5 mm × 96 mm (19.04 in. × 3.78 in.)

Temperature

–40 °C to 80 °C (–40 °F to 176 °F)

Antenna Placement

External Antennas

Application

Maritime

Antenna Technology

Cellular, 5G, 5G/4G MIMO, LTE, LTE MIMO, GPS

Antenna Frequency

400–6000 MHz, 4G Bands, 5G Bands

4G/LTE/3G Frequency Band

Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 6 (800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1700/1800 MHz), Band 11 (1500 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 21 (1500 MHz), Band 24 (1600 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 27 (450 MHz), Band 28 (700 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz), Band 85 (700 MHz)

Mounting

Deck/Flange/Marine Mount, Pole Mount

Cable Length

2 m (6.6 ft)

Antenna Connector

SMA (M) Straight

Color

White

Certifications

REACH (EU), RoHS (EU), WEEE (EU)

Antenna Type

Omni (Omni-Directional)

Antenna Frequency Type

5G/LTE, 4G LTE/3G Cellular

Gain

7 dBi

Connector Type

SMA Male

Application

Maritime

Material Connector

PC

Nominal Impedance

50Ω

Power

10W

Style Type

Omni-Directional

Center Frequency

410–6000 MHz

Form Factor

Outdoor Omni

Sub-Type

Omni
