$22.00

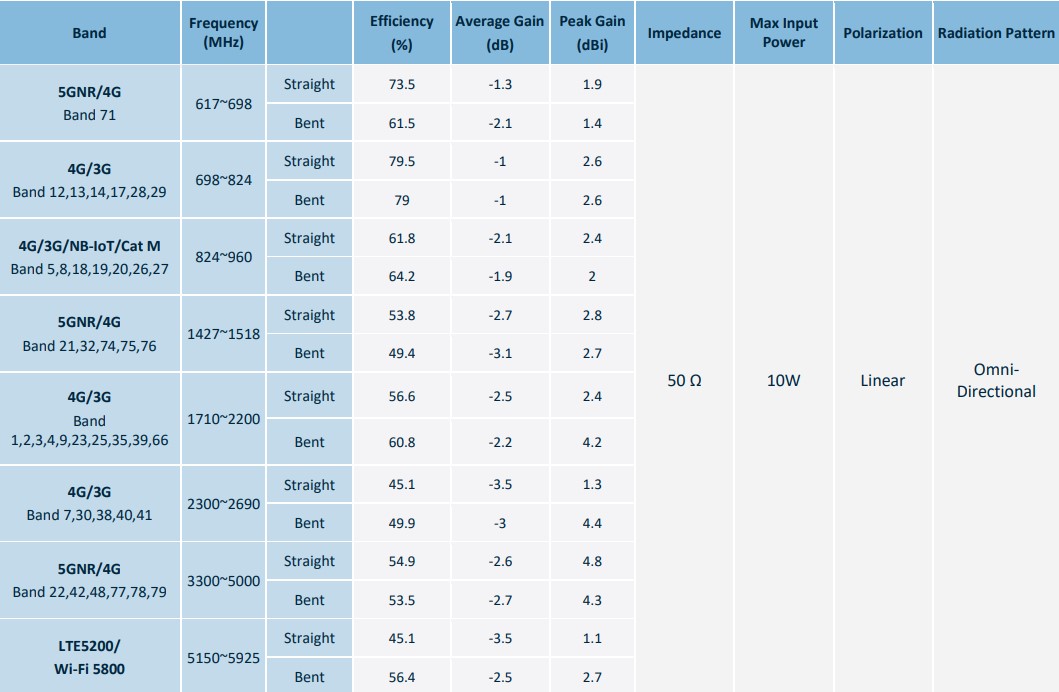

The Taoglas TG.66 is a hinged monopole antenna designed to cover all global 5G/4G frequencies between 600 MHz and 6GHz. Despite its miniature size, just 70.3 x 10 mm, the TG.66 has omnidirectional radiation patterns and provides stable gain across the hemisphere. The TG.66 has a rotatable, hinged 90° SMA connector, allowing covert installation on all types of gateways and routers at straight or bent angles. The TG.66 performs excellently at 5G bands with efficiencies above 45% across the entire 5G/4G spectrum when positioned on the edge of a small ground plane of just 120 x 45 mm in size. The TG.66 utilizes a sleek, robust PC enclosure, and its small size allows it to be mounted where space is at a premium. The SMA male hinge mechanism allows full rotation, helping avoid other antennas or objects and with isolation by pointing the antennas in different directions when used in MIMO systems or when other antennas are present on the same device. The TG.66 has been evolved from the highly successful TG.09 and is part of the ever-growing portfolio of 5G antennas offered by Taoglas.
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 2.8 × 0.39 × 1 in |
| Polarization | Linear |
| Brand | Taoglas |
| Model Number | TG.66.A113 |
| Dimensions | 71 mm × 10 mm |
| Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Antenna Placement | External Antennas |
| Antenna Technology | Cellular, 5G, 5G/4G MIMO, 4G/3G/2G, LTE, LTE MIMO |
| Antenna Frequency | 600–6000 MHz, 3G Bands, 4G Bands, 5G Bands |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 4 (AWS: 1700/2100 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1700/1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 17 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 27 (450 MHz), Band 28 (700 MHz), Band 29 (700 MHz), Band 30 (2300 MHz), Band 32 (1500 MHz), Band 38 (2600 MHz), Band 39 (1900 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 43 (3700 MHz), Band 48 (3500 MHz), Band 66 (1700/2100 MHz), Band 71 (600 MHz), Band 75 (1500 MHz), Band 76 (1500 MHz) |
| Mounting | Connector Mount |
| Antenna Connector | SMA (M) Right-Angle |
| Color | Black |
| Certifications | REACH (EU), RoHS (EU) |
| Antenna Type | Omni (Omni-Directional) |
| Antenna Frequency Type | 5G/LTE, 4G LTE/3G Cellular |
| Gain | 1 dBi, 2 dBi, 3 dBi, 4 dBi |
| Connector Type | SMA Male |
| Material Connector | PC345 |
| Nominal Impedance | 50 Ω |
| Power | 10 W |
| Style Type | Swivel |
| Center Frequency | 600–6000 MHz |
| Form Factor | Rotatable Hinge |
| Sub-Type | Omni |
| Efficiency | >45% |
| Memory | 1 GB |
