☔ IP67 and IP69K rated
The Quectel 5-in-1 5G omni-directional antenna is designed for ease of integration wth connection via four SMA male connectors. The pole/wall/suction mount provides flexibility for deployment, while the device’s IP67 and IP69K ASA enclosure provide high durability.
VSWR
Antenna 1:
3.5 at 410–470 MHz
4.6 at 610–700 MHz
3.9 at 700–810 MHz
3.0 at 820–960 MHz
2.8 at 1420–1520 MHz
2.1 at 1700–2170 MHz
1.6 at 2300–2400 MHz
1.7 at 2400–2500 MHz
1.8 at 2500–2690 MHz
2.1 at 3300–4200 MHz
1.6 at 4400–5000 MHz
2.0 at 5150–5850 MHz
Antenna 2:
6.2 at 410–470 MHz
4.1 at 610–700 MHz
2.6 at 700–810 MHz
2.2 at 820–960 MHz
3.0 at 1420–1520 MHz
2.6 at 1700–2170 MHz
1.4 at 2300–2400 MHz
1.4 at 2400–2500 MHz
2.1 at 2500–2690 MHz
2.2 at 3300–4200 MHz
1.7 at 4400–5000 MHz
1.9 at 5150–5850 MHz
Antenna 3:
5.1 at 410–470 MHz
4.6 at 610–700 MHz
3.1 at 700–810 MHz
2.6 at 820–960 MHz
2.6 at 1420–1520 MHz
2.3 at 1700–2170 MHz
1.5 at 2300–2400 MHz
1.5 at 2400–2500 MHz
2.2 at 2500–2690 MHz
2.2 at 3300–4200 MHz
1.7 at 4400–5000 MHz
1.9 at 5150–5850 MHz
Antenna 4:
5.4 at 410–470 MHz
5.3 at 610–700 MHz
3.7 at 700–810 MHz
3.2 at 820–960 MHz
3.2 at 1420–1520 MHz
2.0 at 1700–2170 MHz
1.6 at 2300–2400 MHz
1.7 at 2400–2500 MHz
2.3 at 2500–2690 MHz
2.1 at 3300–4200 MHz
1.7 at 4400–5000 MHz
1.8 at 5150–5850 MHz
Efficiency
Antenna 1:
23.1% at 410–470 MHz
33.7% at 610–700 MHz
52.7% at 700–810 MHz
57.5% at 820–960 MHz
43.0% at 1420–1520 MHz
58.4% at 1700–2170 MHz
66.6% at 2300–2400 MHz
56.5% at 2400–2500 MHz
59.1% at 2500–2690 MHz
66.7% at 3300–4200 MHz
69.9% at 4400–5000 MHz
62.3% at 5150–5850 MHz
Antenna 2:
26.0% at 410–470 MHz
27.7% at 610–700 MHz
41.7% at 700–810 MHz
48.6% at 820–960 MHz
38.2% at 1420–1520 MHz
53.3% at 1700–2170 MHz
66.4% at 2300–2400 MHz
56.0% at 2400–2500 MHz
56.6% at 2500–2690 MHz
64.1% at 3300–4200 MHz
64.6% at 4400–5000 MHz
62.6% at 5150–5850 MHz
Antenna 3:
27.3% at 410–470 MHz
30.8% at 610–700 MHz
48.7% at 700–810 MHz
54.6% at 820–960 MHz
52.2% at 1420–1520 MHz
54.6% at 1700–2170 MHz
67.1% at 2300–2400 MHz
64.4% at 2400–2500 MHz
54.5% at 2500–2690 MHz
66.9% at 3300–4200 MHz
63.5% at 4400–5000 MHz
62.6% at 5150–5850 MHz
Antenna 4:
23.3% at 410–470 MHz
33.4% at 610–700 MHz
62.4% at 700–810 MHz
60.9% at 820–960 MHz
44.8% at 1420–1520 MHz
59.7% at 1700–2170 MHz
66.9% at 2300–2400 MHz
55.3% at 2400–2500 MHz
53.9% at 2500–2690 MHz
65.9% at 3300–4200 MHz
63.9% at 4400–5000 MHz
59.1% at 5150–5850 MHz
$43.87
Antenna 1 peak gain:
–0.5 dBi at 410–470 MHz
1.2 dBi at 610–700 MHz
5.6 dBi at 700–810 MHz
5.6 dBi at 820–960 MHz
4.8 dBi at 1420–1520 MHz
3.5 dBi at 1700–2170 MHz
3.9 dBi at 2300–2400 MHz
3.5 dBi at 2400–2500 MHz
4.2 dBi at 2500–2690 MHz
3.6 dBi at 3300–4200 MHz
4.9 dBi at 4400–5000 MHz
3.0 dBi at 5150–5850 MHz
Antenna 2 peak gain:
–0.3 dBi at 410–470 MHz
2.2 dBi at 610–700 MHz
4.9 dBi at 700–810 MHz
4.4 dBi at 820–960 MHz
4.0 dBi at 1420–1520 MHz
4.8 dBi at 1700–2170 MHz
2.5 dBi at 2300–2400 MHz
4.7 dBi at 2400–2500 MHz
4.7 dBi at 2500–2690 MHz
5.3 dBi at 3300–4200 MHz
4.4 dBi at 4400–5000 MHz
4.0 dBi at 5150–5850 MHz
Antenna 3 peak gain:
–0.5 dBi at 410–470 MHz
0.2 dBi at 610–700 MHz
1.8 dBi at 700–810 MHz
3.1 dBi at 820–960 MHz
3.1 dBi at 1420–1520 MHz
4.8 dBi at 1700–2170 MHz
2.7 dBi at 2300–2400 MHz
4.6 dBi at 2400–2500 MHz
5.1 dBi at 2500–2690 MHz
6.2 dBi at 3300–4200 MHz
5.0 dBi at 4400–5000 MHz
3.7 dBi at 5150–5850 MHz
Antenna 4 peak gain:
0.4 dBi at 410–470 MHz
1.4 dBi at 610–700 MHz
3.1 dBi at 700–810 MHz
3.5 dBi at 820–960 MHz
2.8 dBi at 1420–1520 MHz
5.3 dBi at 1700–2170 MHz
4.3 dBi at 3300–4200 MHz
4.4 dBi at 4400–5000 MHz
4.2 dBi at 5150–5850 MHz
| Weight | 2 lbs |
|---|---|
| Dimensions | 7.32 × 6.93 × 5.91 in |
| Temperature | Operating: –40 °C to 85 °C (–40 °F to 185 °F); Storage: 18 °C to 27 °C (64.4 °F to 80.6 °F) |
| Polarization | Linear |
| Brand | Quectel |
| Model Number | YEMX425J1A |

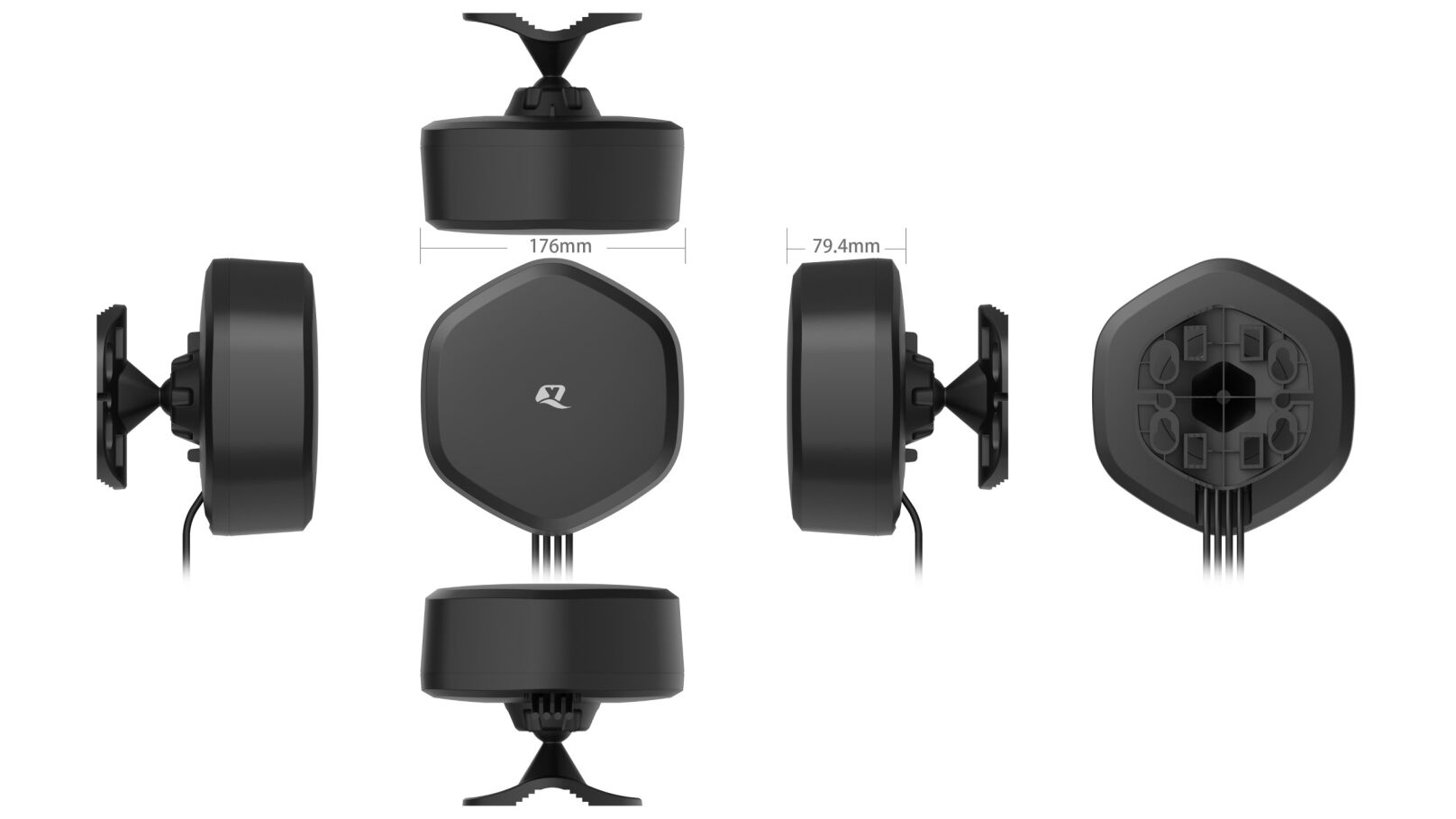

| Dimensions | 186 mm × 176 mm × 150 mm (7.32 in. × 6.93 in. × 5.91 in.) |
| Antenna Placement | External Antennas |
| Antenna Technology | 5G, 4G/3G/2G, LTE |
| Antenna Frequency | 400–470 MHz, 617–960 MHz, 3.3–6 GHz |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz), Band 5 (850 MHz), Band 8 (900 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 26 (850 MHz), Band 28 (700 MHz), Band 38 (2600 MHz), Band 40 (2300 MHz), Band 41 (2500 MHz), Band 42 (3500 MHz), Band 48 (3500 MHz), Band 71 (600 MHz) |
| Mounting | Pole Mount, Wall Mount |
| Cable Length | 450 mm (1.48 ft) |
| Antenna Connector | SMA (M) Straight |
| Color | Black |
| Certifications | REACH (EU), RoHS (EU) |
| Antenna Type | Omni (Omni-Directional) |
| Antenna Frequency Type | 4-in-1, 5G/LTE |
| Gain | 0 dBi or less, 1 dBi, 2 dBi, 3 dBi, 4 dBi, 5 dBi, 6 dBi |
| Connector Type | SMA Male |
| Material Connector | ASA |
| Nominal Impedance | 50 Ω |
| Style Type | Omni-Directional |
| Center Frequency | 410–470 MHz/617–2690 MHz/3.3–6 GHz |
| VSWR | <6.2 |
| Form Factor | Omni |
| Sub-Type | Pole Mount |
| Efficiency | 23.1–69.9% |
