Seeed Studio 318020613 Lora-915 Fiberglass Antenna | Omni-Directional | 1 m (3.3 ft) Cable | White | Pole Mount

IP68 rated

🛡️ Robust construction: Built to withstand harsh outdoor environments.
🔧 Gateway compatibility: Compatible with the SenseCAP Outdoor Gateway and SenseCAP M1 Indoor Gateway.
🔹 Mounting hardware included: Comes with hardware for easy mounting.
🔌 Adapted cable: Includes a one-meter N-female to RP-SMA plug cable

$69.00

Related Products

Description

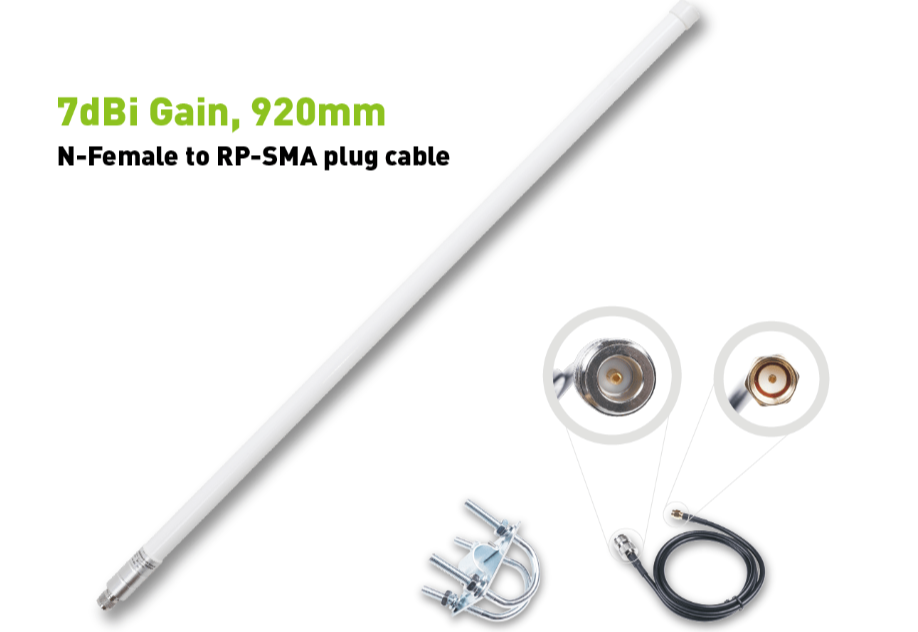

For applications requiring extended range in urban or large land environments, the outdoor Long Range Fiberglass antenna offers a robust solution. With an average gain of 7 dBi and a frequency range of 900–930 MHz, this antenna enhances the power and range of Long Range Base stations. Measuring 92 cm in length, it is designed to withstand harsh outdoor conditions and includes hardware for pole and wall mounting.

The antenna features an N-J Double tooth connector and comes with an N-Female to RP-SMA plug cable for easy connection to SenseCAP Gateways.

Additional information

Weight 3 lbs
Dimensions 0.39 × 0.39 × 3.62 in
Polarization

Linear, Vertical

Brand

Seeed Studio

Model Number

318020613

Dimensions

⌀10 mm × 92 mm (⌀0.39 in. × 3.62 in.)

Temperature

–30 °C to 65 °C (–22 °F to 149 °F)

Antenna Placement

External Antennas

Antenna Technology

LoRa

Antenna Frequency

915 MHz

Mounting

Pole Mount, Wall Mount

Cable Length

1 m (3.3 ft)

Antenna Connector

N-Type (F)

Color

White

Certifications

RoHS (EU)

Antenna Type

Omni (Omni-Directional)

Antenna Frequency Type

LoRa-433/868/915 MHz

Gain

7 dBi

Connector Type

N-Type Male Double Tooth

Nominal Impedance

50 Ω

Power

>2 W

Style Type

Omni-Directional

Center Frequency

915 MHz

Form Factor

Wall/Pole Mount

Sub-Type

Omni

Efficiency

>60%
