☔ IP65 rated
5-in-1 antenna containing:
$59.00

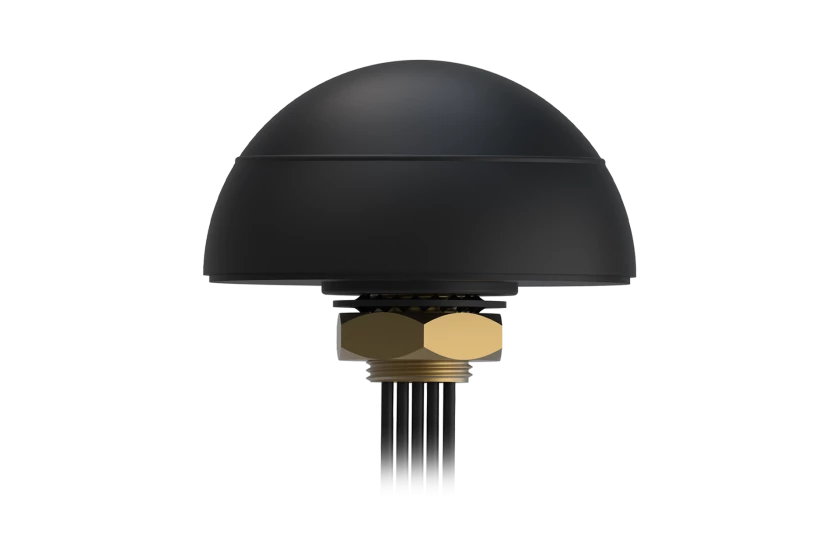

The Teltonika PR1KCO28 5-in-1 Roof Antenna is designed for use with the Teltonika RUT series
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 4.33 × 4.33 × 2.17 in |
| Center Frequency | LTE: 698–960/1710–2690 MHz; GNSS: 1575.42–1610 MHz; Wi-Fi: 2400–2483.5/4900–5825 MHz |
| Polarization | Linear, RHCP |
| Brand | Teltonika |
| Model Number | PR1KCO28 |
| Dimensions | ⌀110 mm × 55 mm (⌀4.33 in. × 2.17 in.) |
| Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Antenna Placement | External Antennas |
| Antenna Technology | LTE, LTE MIMO, GNSS, Wi-Fi |
| Antenna Frequency | 698–960 MHz, 960 MHz, 1575 MHz, 1710–2690 MHz, 1710–6000 MHz, 2.4/4.9–6 GHz |
| Mounting | Screw Mount, Vehicle Mount |
| Cable Length | 3 m (10 ft) |
| Antenna Connector | SMA (M) Straight, RP-SMA (M) Straight |
| Color | Black |
| Certifications | RoHS (EU) |
| Antenna Frequency Type | 5-in-1, 4G LTE/3G Cellular, Multi-Band Wi-Fi, Cellular/GNSS-GPS Combo, GNSS-GPS/Glonass/Galileo, 2.4/5 GHz, 2.4/5/6 GHz |
| Gain | 2 dBi, 3 dBi, 28 dBi |
| Connector Type | RP-SMA Male and SMA Male |
| Material Connector | ABS |
| Nominal Impedance | 50 Ω |
| Style Type | Dome |
| VSWR | ≤1.5 (GNSS), < 3.0 (Cellular), <2.5 (Wi-Fi) |
| Form Factor | Screw Mount |
| Sub-Type | Dome |
