📶 Maximum Connectivity: Supports 4x LTE/5G, 2x Wi-Fi, and 1x GPS across a 600-6000MHz frequency range, ensuring comprehensive signal coverage.
🌟 Maximum Gain: Provides high gain of up to 6.6dBi, allowing for maximum signal strength, especially when a router is installed directly into the antenna enclosure.
🚧 5G Ready: Wide frequency range support includes B71 and is ready for 5G connections.
💧 Maximum Durability: Features an IP67-rated, UV-resistant plastic enclosure that protects against moisture, water intrusion, salt spray, and corrosion.
💰 Maximum Value: Cost-effective solution for getting maximum outdoor performance from cellular and 5G routers.
$381.00

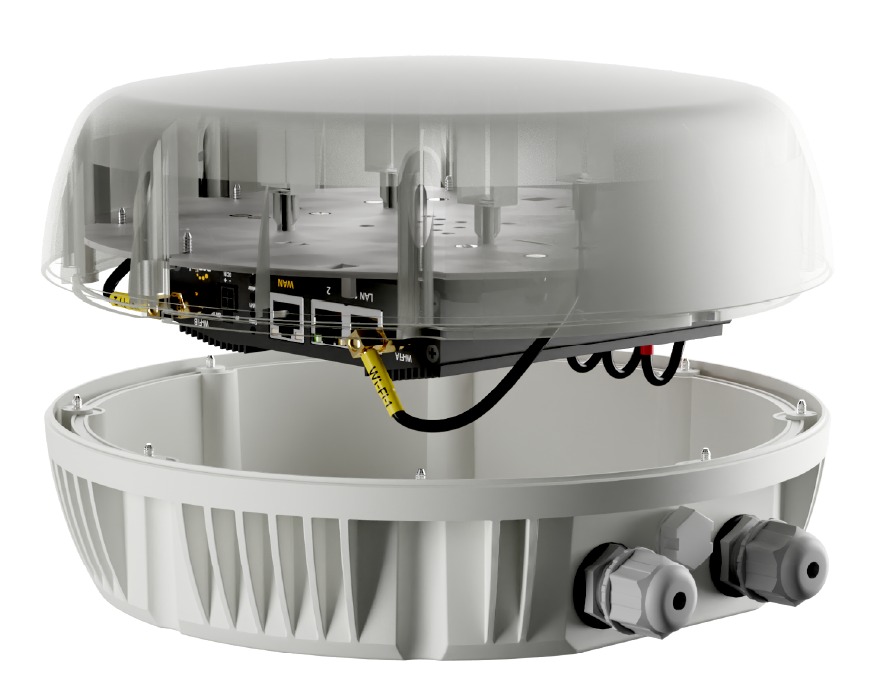

The Peplink Antenna MAX (ANT-MAX) is a UV-resistant, IP68-rated antenna designed for maximum performance from cellular and 5G routers in outdoor environments, offering 4xLTE/5G, 2x Wi-Fi, and 1xGPS connectivity.
For more technical information, please see the datasheet.
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.17 × 9.92 × 1.02 in |
| Tariff COO | United States |
| Brand | Peplink |
| Model Number | ANT-MAX |
| Dimensions | 106 mm × 252 mm × 26 mm (4.17 in. × 9.92 in. × 1.02 in.) |
| Antenna Technology | Cellular, 5G, 5G/4G MIMO, LTE, LTE MIMO, GPS, Wi-Fi |
| Mounting | Adhesive Mount, Deck/Flange/Marine Mount, Vehicle Mount |
| Antenna Connector | SMA (M) Straight, RP-SMA (M) Straight |
| Color | Black, White |
| Polarization | Linear |
| Form Factor | Wall/Pole Mount |
