🌍 Hybrid Connectivity: Combines Starlink and cellular power in a single, integrated enclosure for maximum performance.
📶 Integrated Antennas: Built-in 4x 5G/LTE, 2x Wi-Fi, and GPS antennas eliminate external RF cables and signal loss.
🚗 Designed for Mobility: Ideal for vehicles, rooftops, poles, and custom rack systems with flexible deployment options.
🛡 Built to Last: Engineered with UV- and salt-resistant plastics and a metal base for heat dissipation to withstand high wind loads.
🔋 Internal Power Module: Includes extra room for a user-installed internal power module powered via DC or PoE input for both the Peplink router and Starlink Mini.
$763.00

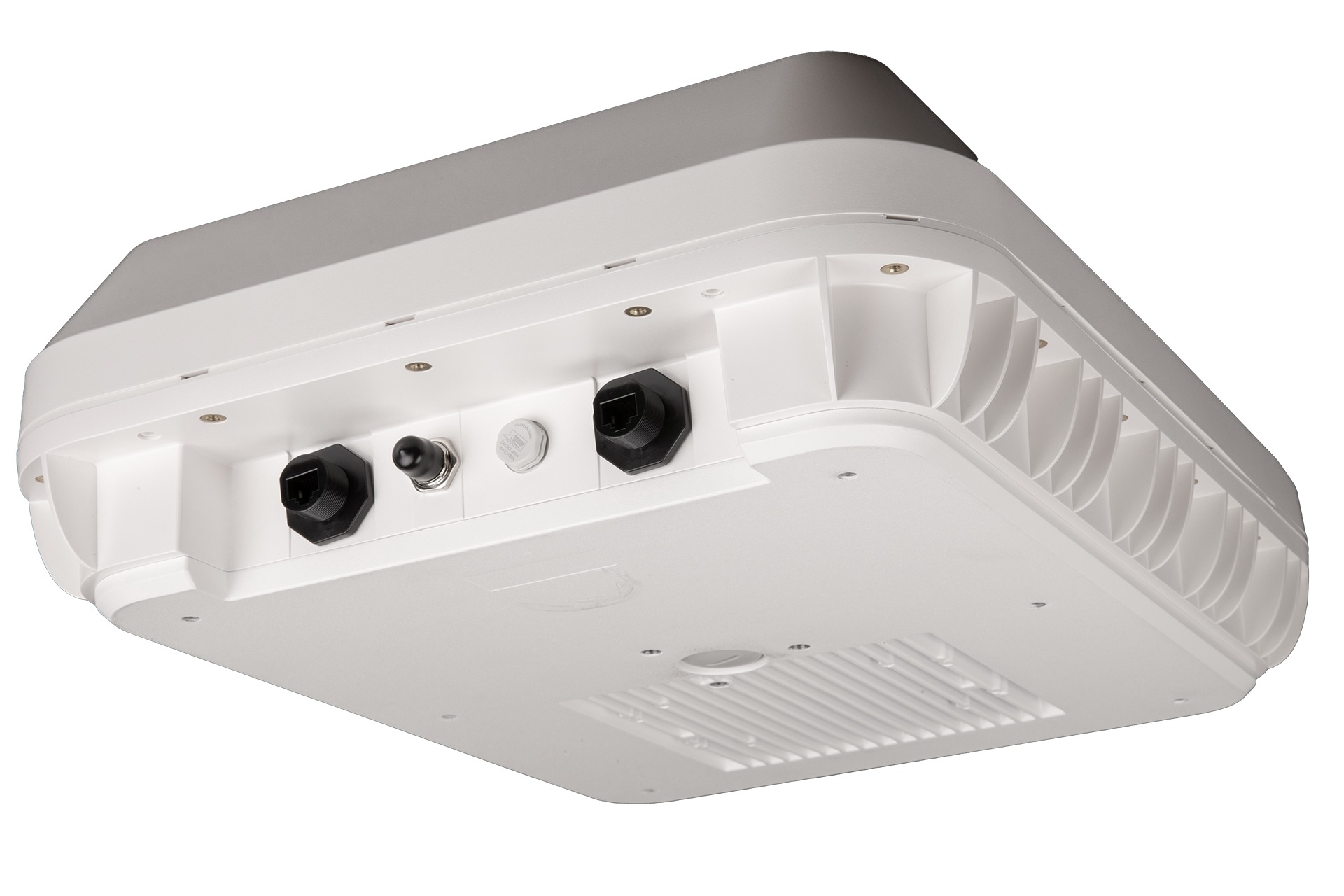

The Peplink ANT-MAX-S is a rugged, weatherproof enclosure featuring an integrated 7-in-1 antenna (4x 5G/LTE, 2x Wi-Fi, GPS) designed to house compatible Peplink routers and the Starlink Mini for a complete, all-in-one connectivity solution.
For more technical information, please see the datasheet.
| Weight | 1 lbs |
|---|---|
| Dimensions | 17.6 × 14.5 × 5.3 in |
| Tariff COO | United States |
| Brand | Peplink |
| Model Number | ANT-MAX-S |
| Dimensions | 448 mm × 368 mm × 135 mm (17.6 in. × 14.5 in. × 5.3 in.) |
| Antenna Technology | 4G/3G/2G, LTE MIMO, GNSS |
| Mounting | Vehicle Mount |
| Antenna Connector | SMA (M) Right-Angle, RP-SMA (M) Right-Angle |
| Gain | 7 dBi |
| Polarization | Linear |
| Form Factor | Mount |
