Taoglas TG.08.0113 Monopole Passive Antenna | Cellular/GNSS-GPS Combo | GND Plane Required

Description

Features

• BeiDou 1561 MHz, GPS 1575 MHz, GLONASS 1602 MHz.
• 698~960 MHz, 1710~2700 MHz 2G/3G/4G.
• Efficiency >53% on all bands (30 cm × 30 cm metal Ground Plane edge).
• Rotatable hinge design for optimal reception.
• SMA(M) high efficiency at 698–960 MHz, 1561 MHz, 1575.42 MHz, 1602 MHz, and 1710–2700 MHz.

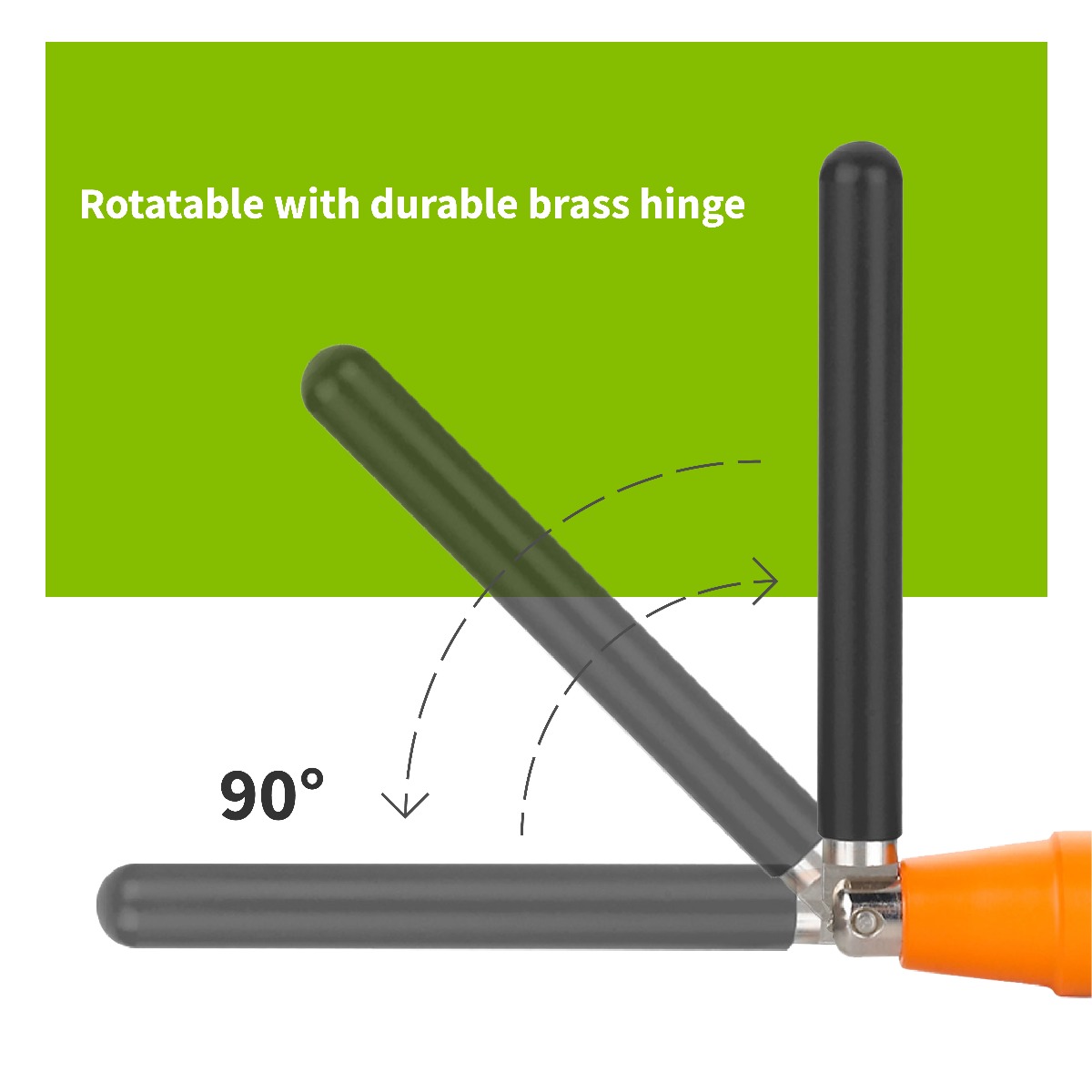

• Rotatable 360 degrees with durable brass hinge.
• Compatible with
  • 2G (GSM/DCS/PCS)
  • 3G (CDMA/WCDMA/UMTS/HSPA)
  • 4G (700LTE/2700LTE)
  • GNSS (GPS/GLONASS/BEIDOU)

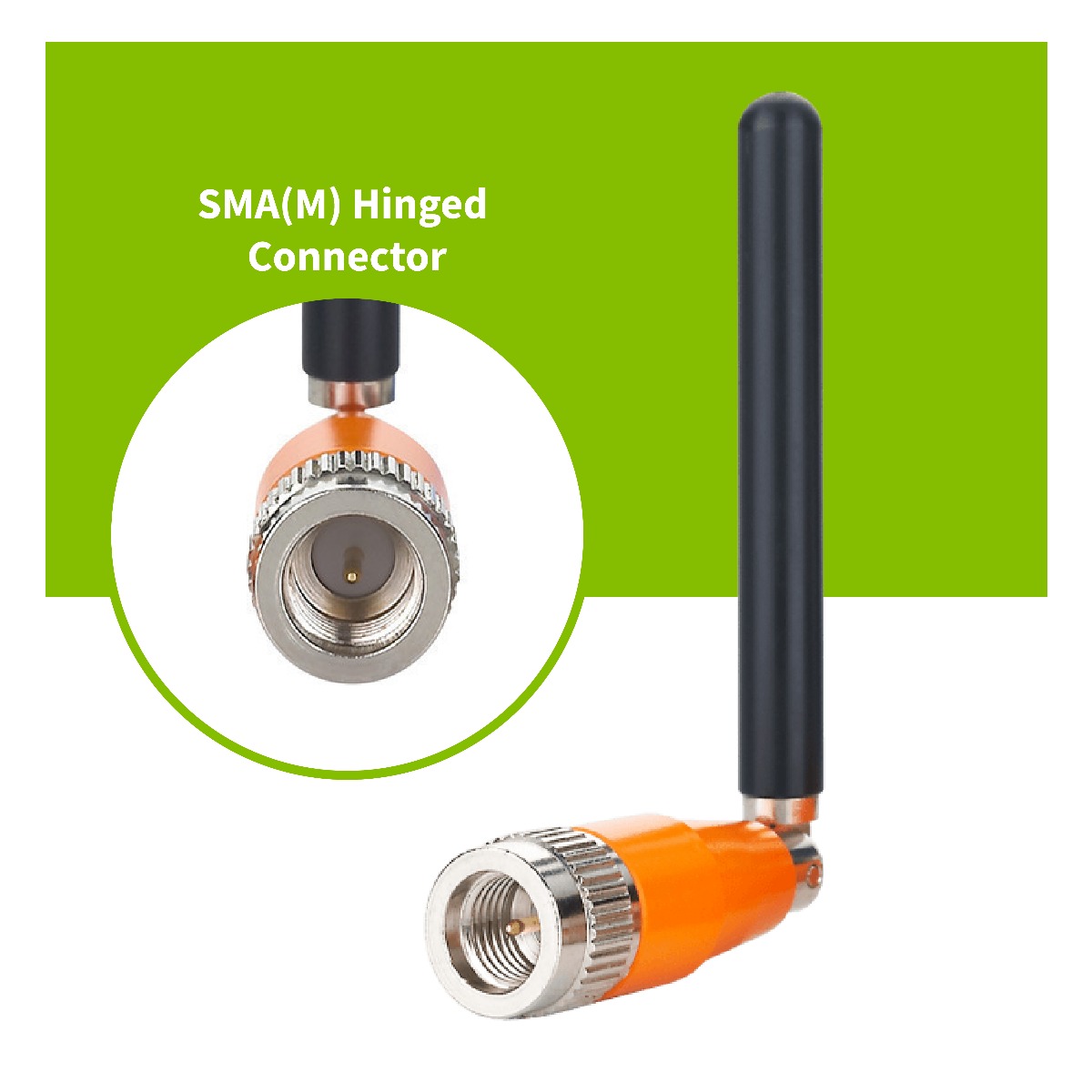

• Standard SMA(M) RP connector.

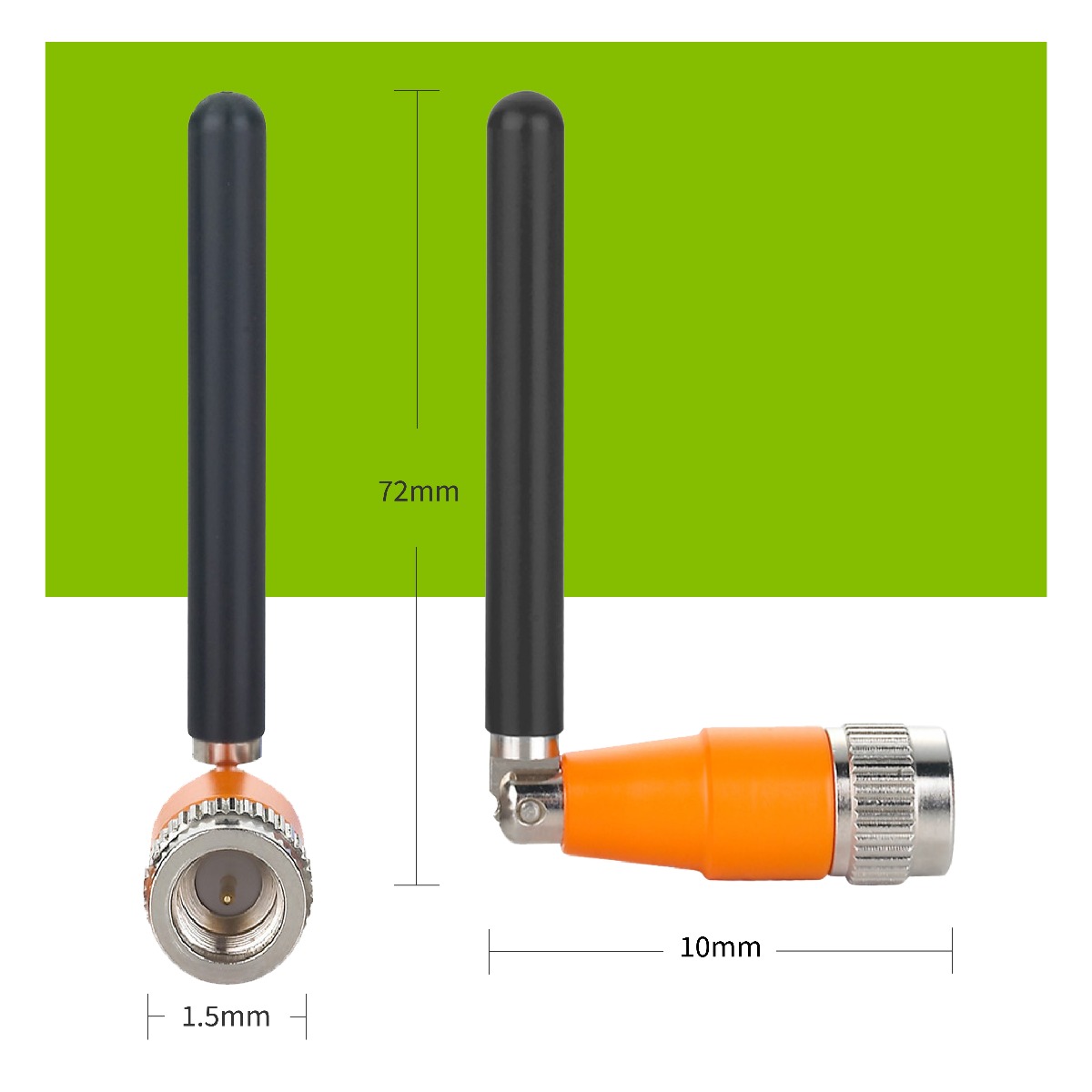

• Low profile with 72 ±1.5 mm length.
• ROHS compliant

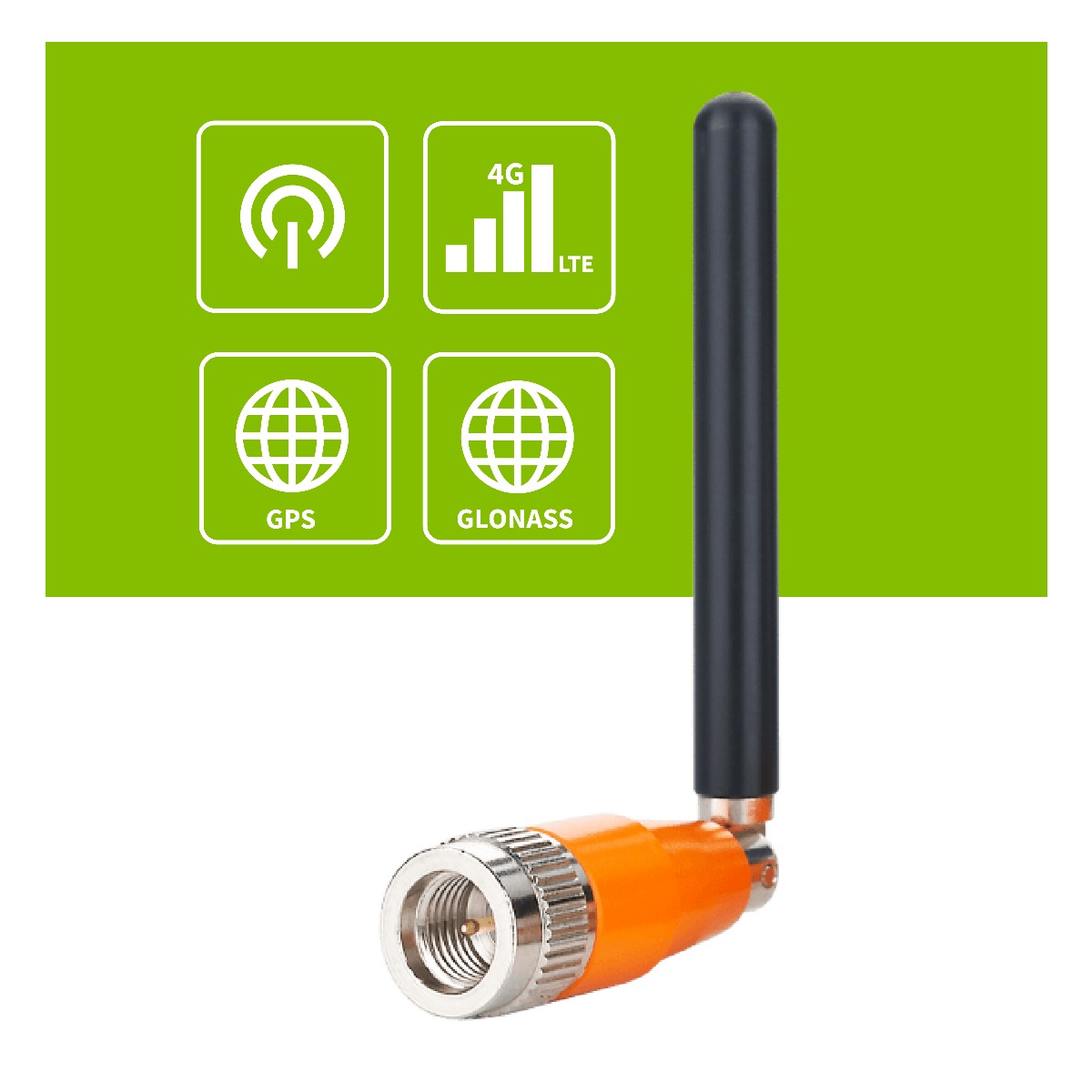

The compact TG.08 with hinged rotatable SMA connector is an impressive high-efficiency monopole antenna, providing wide coverage among cellular and GNSS frequencies.

With its cellular and GNSS function plus compact design, TG.08 can fit and function perfectly with routers, vehicle tracking devices, telematics devices, and remote monitoring systems. Also, it is ideal for use with cellular modules with assisted GPS functionality that can be implemented in various devices.

This 72-mm long monopole antenna works efficiently from 700 MHz–2700 MHz, widely covering 2G/3G/4G bands, as well as GPS/GLONASS/BEIDOU. At its maximum efficiency when connected to ground plane, it can achieve 73% and 67% at GPS and LTE bands, respectively.

As all monopole antennas, TG.08 works best while connecting directly to the ground-plane of the device main-board, or with the device’s metal enclosure.

The robust brass hinge enables TG.08 to be oriented in all directions, providing users to maximize performance with minimum effort.
