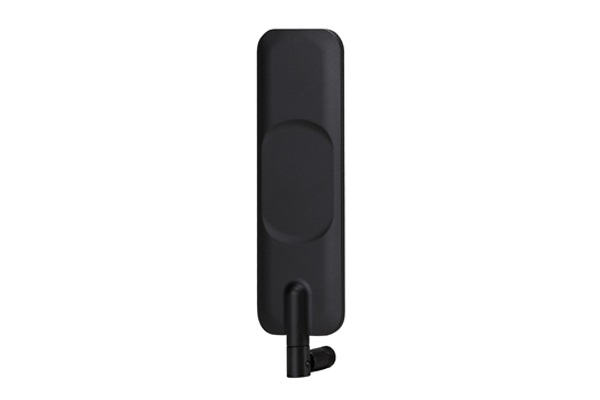

The hinged Apex II TG.35 Ultra-Wideband Dipole Antenna has been designed to cover all Cellular, ISM and Wi-Fi working frequencies in the 700-6000 MHz spectrum.
$34.50
Features:
The hinged Apex II TG.35 Ultra-Wideband Dipole Antenna has been
designed to cover all Cellular, ISM and Wi-Fi working frequencies
in the 700-6000 MHz spectrum. It has the highest wide-band
efficiency in its range of any terminal antenna on the market
today.
The Apex II has been primarily designed for use with 4G LTE
modules and devices that require the highest possible efficiency
and peak gain to deliver best in class throughput on all major
cellular (2G/3G/4G) bands worldwide for access points, terminals
and routers. Vital for applications such as high speed video and
real-time streaming, or high capacity MIMO networks on public
transportation.
The antenna is a ground plane independent antenna, meaning it
does not need to be connected to the ground-plane of a device to
radiate efficiently, on the other hand neither is it seriously
detuned by connecting to a ground-plane, thus avoiding a problem
notorious to smaller antennas.
It comes with a SMA (M) connector and swivel mechanism that
allows the antenna part to be rotated to fit in tight
environments. The 90° hinge structure has been improved and
strengthened so that the antenna in a 90° position would not fall
down to 180° in vibration environment.
The Apex II exhibits high efficiency and is backward compatible
with 2G and 3G cellular applications such as GSM, LTE, UMTS, WI-FI
and even has GPS included for Assisted GPS and/or E911
applications.
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 8.82 × 2.27 × 0.51 in |
| Polarization | Linear |
| Brand | Taoglas |
| Model Number | TG.35.8113 |
| Dimensions | 224 mm × 57.6 mm × 13 mm (8.82 in. × 2.27 in. × 0.51 in.) |
| Temperature | -40° to 85°C |
| Antenna Technology | 4G/3G/2G |
| Antenna Frequency | 4G Bands |
| 4G/LTE/3G Frequency Band | Band 1 (2100 MHz) |
| Mounting | Connector Mount |
| Antenna Connector | SMA (M) Hinged |
| Antenna Type | Dipole (Rubber Duck) |
| Antenna Frequency Type | 4G LTE/3G Cellular |
| Connector Type | SMA |
| Application | Cellular / GPS / Wi-Fi |
| Material Connector | ABS |
| Nominal Impedance | 50Ω |
| Power | 5 W |
| Center Frequency | see datasheet |
| VSWR | see datasheet |
| Form Factor | Rotatable Hinge |
| Sub-Type | Rubber Duck |
