Gold plated brass pins, rubber O-ring

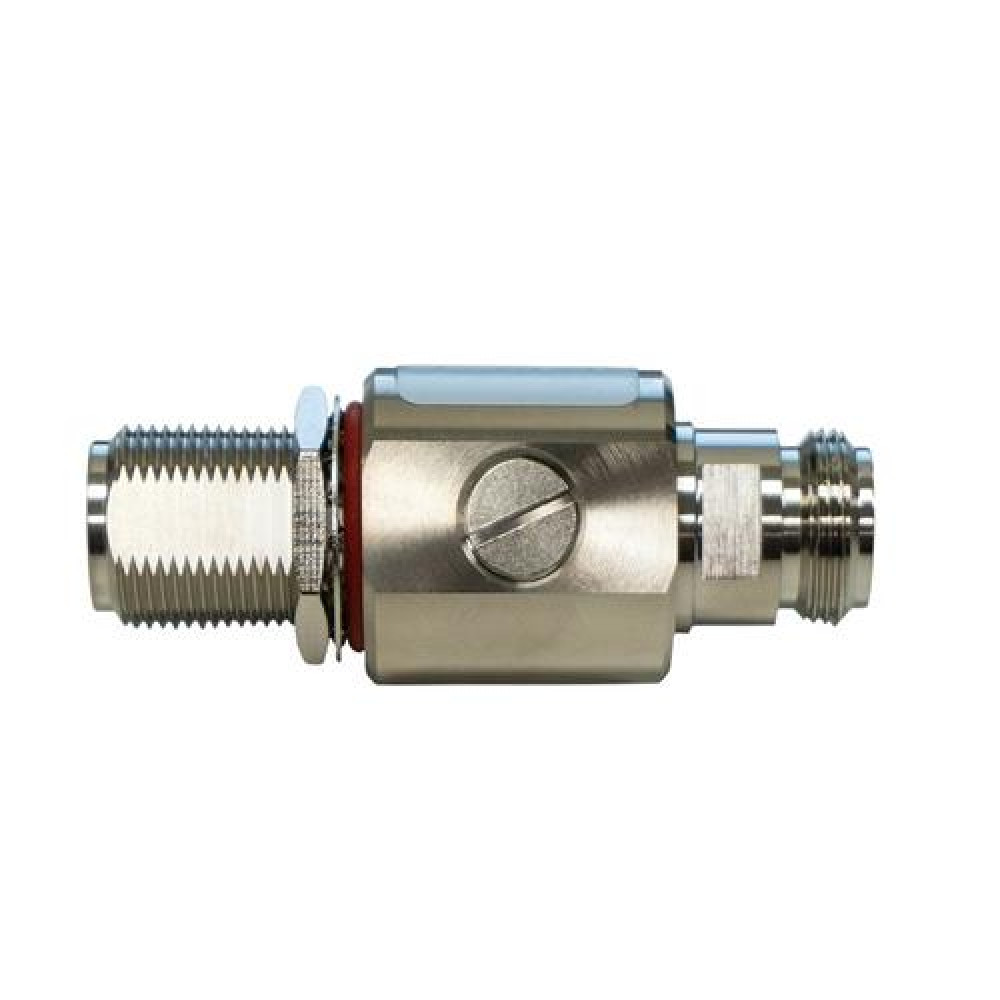

⚡ Lightning surge protection: The RSRF-LSP-50 RF lightning surge protector is designed to shield Cel-Fi donor antenna and booster systems from lightning strikes and voltage surges, protecting your outdoor antenna.
🔒 50-ohm signal booster: This kit is suitable for 50-ohm signal booster systems, ensuring compatibility with your setup.
📡 Excellent VSWR: Featuring an excellent VSWR (Voltage Standing Wave Ratio) of 1.2:1, it aids in signal quality preservation.
🔌 N-female connectors: The surge protector comes with N-Female to N-Female connectors for seamless integration into your signal booster system.
🌐 Broad frequency range: It covers a wide DC ~3 GHz frequency range, accommodating various signal frequencies.
🛠 Inclusive kit: The kit includes a 5-foot jumper cable with N-type connectors and a 5-foot copper grounding wire with ring terminals, providing you with essential components for straightforward installation.
$86.00
The RSRF-LSP-50 RF lightning surge protector safeguards your Cel-Fi donor antenna and booster systems from the impact of a lightning strike. Because the donor antenna is mounted outdoors and usually at the highest point on a home or building, it’s susceptible to lightning and voltage surges caused by static build-up. We suggest using this simple device with our fixed cellular booster kits that come with an outdoor antenna.
The RSRF-LSP-50 RF connects near the donor antenna using the 5-foot jumper cable. Assemble the booster cable to the N-type connector on the opposite side of the surge protector. A 5-foot copper grounding wire secures the protector to a solid grounding point.
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2.22 × 0.89 × 0.89 in |
| Brand | Nextivity |
| Model Number | RSRF-LSP-50 |
| Dimensions | 56.5 mm × 22.7 mm × 22.7 mm (2.22 in. × 0.89 in. × 0.89 in.) |
| Temperature | –55 °C to 155 °C (–67 °F to 311 °F) |
| Accessory Type | RF Lightning Protector |
| Product Family | Nextivity Accessories |
| Accessory Connector | N-Type |
| Cable Connector 1 | N-Type Female |
| Cable Connector 2 | N-Type Female |
| Connector Type | N-Type Female to N-Type Female |
| Material Connector | Tri-Metal Plated Brass |
| Cable Material | PVC |
| Cable Type | 5 ft. RS240 N-Male Jumper |
| Cable Length | 1.5 m (5 ft) |
| Operation Voltage | 230 V |
| Nominal Impedance | 50 Ω |
| Frequency | 0–3 GHz |
| Insertion Loss | ≤0.4 dB |
| VSWR | ≤1.2:1 |
