VIA Technologies EPIA-M840-12E SBC | VIA Nano

Description

1.2GHz Nano E Mini-ITX Board with 1.2GHz Nano E CPU, 1 PCIe x4, 8 COMs, 1 CF, 2 GLAN, 2 LVDS (w/ ATX Power Connector)

The VIA EPIA-M840 packs the latest VIA Nano E-Series processor, dual Gigabit LAN, eight COM ports and two dual channel 24-bit LVDS channels making an ideal solution for a range of embedded applications including the latest industrial automation, kiosk, POI and HMI applications.

The VIA EPIA-M840 is available in both active and passive cooling configurations with a choice of either a fanless 1.2GHz or a performance oriented 1.6GHz VIA Nano E-Series processor. The VIA VX800 media system processor supports 2 of DDR2 DIMM system memory and provides DirectX9 integrated graphics, crystal clear HD audio and Gigabit networking and advanced video acceleration for MPEG-2, WMV9 and VC1 video formats, plus a VMR capable HD video processor.

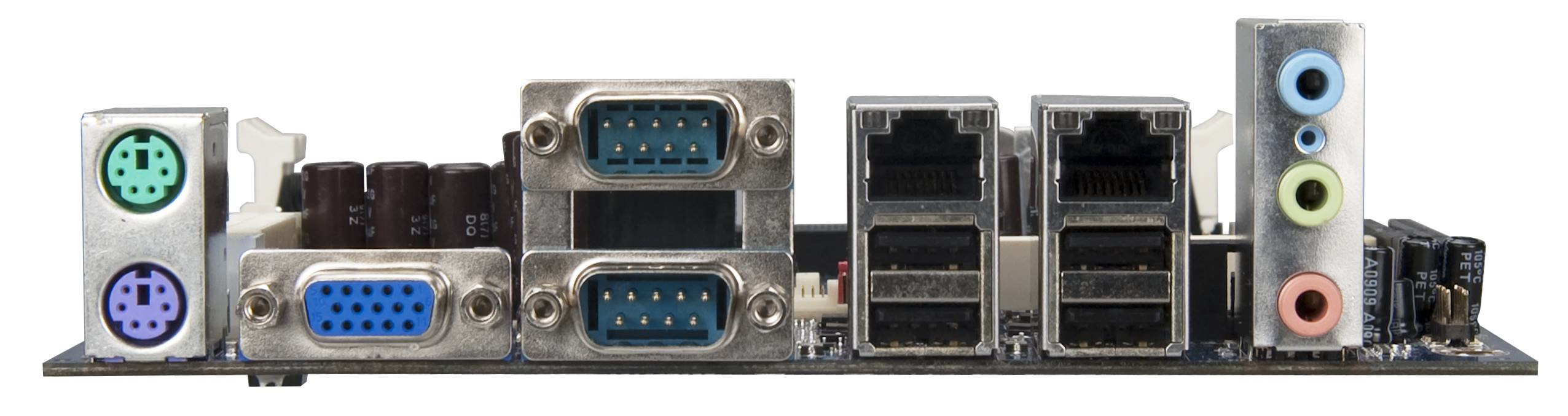

Rear panel I/O includes dual Gigabit LAN ports, PS/2 support, a VGA port, two RS-232 5v/12v selectable COM ports, four USB 2.0 ports and audio jacks. On board pin headers provide 2× dual channel 24-bit LVDS support (including backlight control), an additional six COM ports, a further two USB ports, LPT support, Digital I/O, SIR and LPC headers, a PCIe x4 slot and Compact Flash socket.

VIA Nano E Series processor
Active and Passive cooling configurations
Integrated VIA Chrome9 HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
Support for VGA and dual channel LVDS displays
Supports Dual Gigabit Ethernet
Supports PCIe x4 slot
Eight COM ports
Six USB 2.0 ports
Supports HD audio
Designed for advanced Industrial Automation, Kiosk and HMI applications
