$210.00

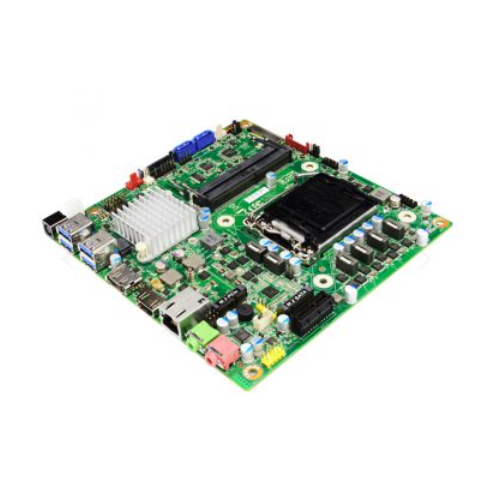

The Jetway JNF893-H310’s thin Mini-ITX form factor board adopts the Intel® 8th generation Core™ i7/i5/i3, Pentium, and Celeron processors. The board supports DDR4 2400/2666 MHz SODIMM memory up to 64 GB, and features an integrated Intel® i219-V gigabit Ethernet controller. Two SATAIII (6 Gb/s) ports and one M.2 (M-key, 2242/2260/2280) offer storage devices. One M.2 (E-key, 2230), four USB 3.1 ports, four USB 2.0 ports and one COM port provide versatile expansion. The JNF893-H310 offers one HDMI 1.4 port, one DP port, and one LVDS (option with eDP) which can support up to two independent displays. Because of the above features, JNF893-H310 is one of the best selections for kiosk and AIO applications.
| Weight | 2 lbs |
|---|---|
| Dimensions | 6.69 × 6.69 × 0.2 in |
| Temperature | Operating: 0 °C to 60 °C (32 °F to 140 °F); Storing: –20 °C to 85 °C (–4 °F to 185 °F) |
| Chipset Maker | Intel |
| Brand | Jetway |
| Model Number | JNF893-H310 |
| Dimensions | 170 mm × 170 mm |
| Form Factor | Mini ITX |
| Processor Series | Intel® Core™ |
| Power | 19 V DC |
| CPU | Intel® Core™ 8th Gen |
| Chipset | Intel H310 |
| Motherboard Type | Mini ITX |
| Memory Socket | 2× 260-pin DDR4-2666 SO-DIMM Unbuffered Max. 64 GB |
| Storage | 2× SATA3 6 Gb/s, 1× M.2 (M-key, SATA, 2242/2260/2280) |
| Warranty | 2 Years |
| Memory | 8 GB |
