$340.00
The Jetway JNF796M-Q370 has a mini-ITX form factor that adopts 8th/9th generation Intel® Core i7/i5/i3, Pentium, and Celeron processors. The board supports two DDR4 2400/2666 MHz SO-DIMMs, up to 64 GB. It includes an integrated Intel® Gigabit Ethernet controller.
JNF796M-Q370 offers two 10/100/1000 Base-TX Ethernet devices for network transmission. Five SATAIII (6 Gb/s) interfaces and one M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe offering storage devices. M.2 2230 (PCIex1/USB 2.0) supports CNVi. Four USB 3.1 gen. 2 ports, six USB 3.1 gen. 1 ports, two USB 2.0 ports, and six COM ports provide versatile expansion.

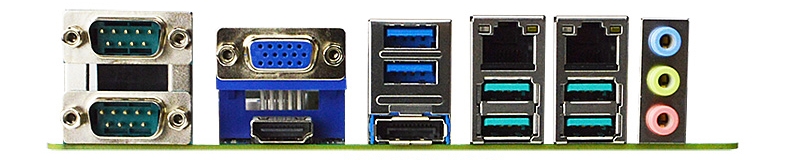

The PCIex16 slot can support Jetway risers for different expansions. The JNF796M-Q370 offers one HDMI 1.4 port, one DP 1.4 port, one VGA port, and one 24-bit dual-channel LVDS that can support up to threee independent displays. Due to the above features, JNF796M-Q370 is suitable for edge computing, digital signage, industrial PCs, factory automation, public sector, digital security, and surveillance applications.
| Weight | 2 lbs |
|---|---|
| Dimensions | 6.69 × 6.69 × 0.2 in |
| Temperature | Operating: 0 °C to 60 °C (32 °F to 140 °F); Storing: –20 °C to 85 °C (–4 °F to 185 °F) |
| Chipset Maker | Intel |
| Model Number | JNF796M-Q370 |
| Brand | Jetway |
| Dimensions | 170 mm × 170 mm |
| Form Factor | Mini ITX |
| Processor Series | Intel® Core™ |
| Cooling | 3× 4-Pin Headers |
| Power | 24-Pin ATX |
| CPU | Intel® LGA 1151 Socket |
| Chipset | Intel Q370 |
| Motherboard Type | Mini ITX |
| Bios | AMI 128 MB |
| Software Support | Windows, Linux |
| Memory Socket | 2× DDR4-2400/2666 SO-DIMM Dual-Ch. Max. 64 GB |
| Storage | 5× SATA3 6 Gb/s (RAID 0/1/5/10), 1× M.2 (M-key, SATA, 2242/2280), 1× M.2 (E-key 2230) |
| Warranty | 2 Years |
