The VIA VAB-600 pico-ITX to jump start in-vehicle innovation, as well as a broad range of mobile and healthcare applications
Original price was: $134.99.$116.00Current price is: $116.00.

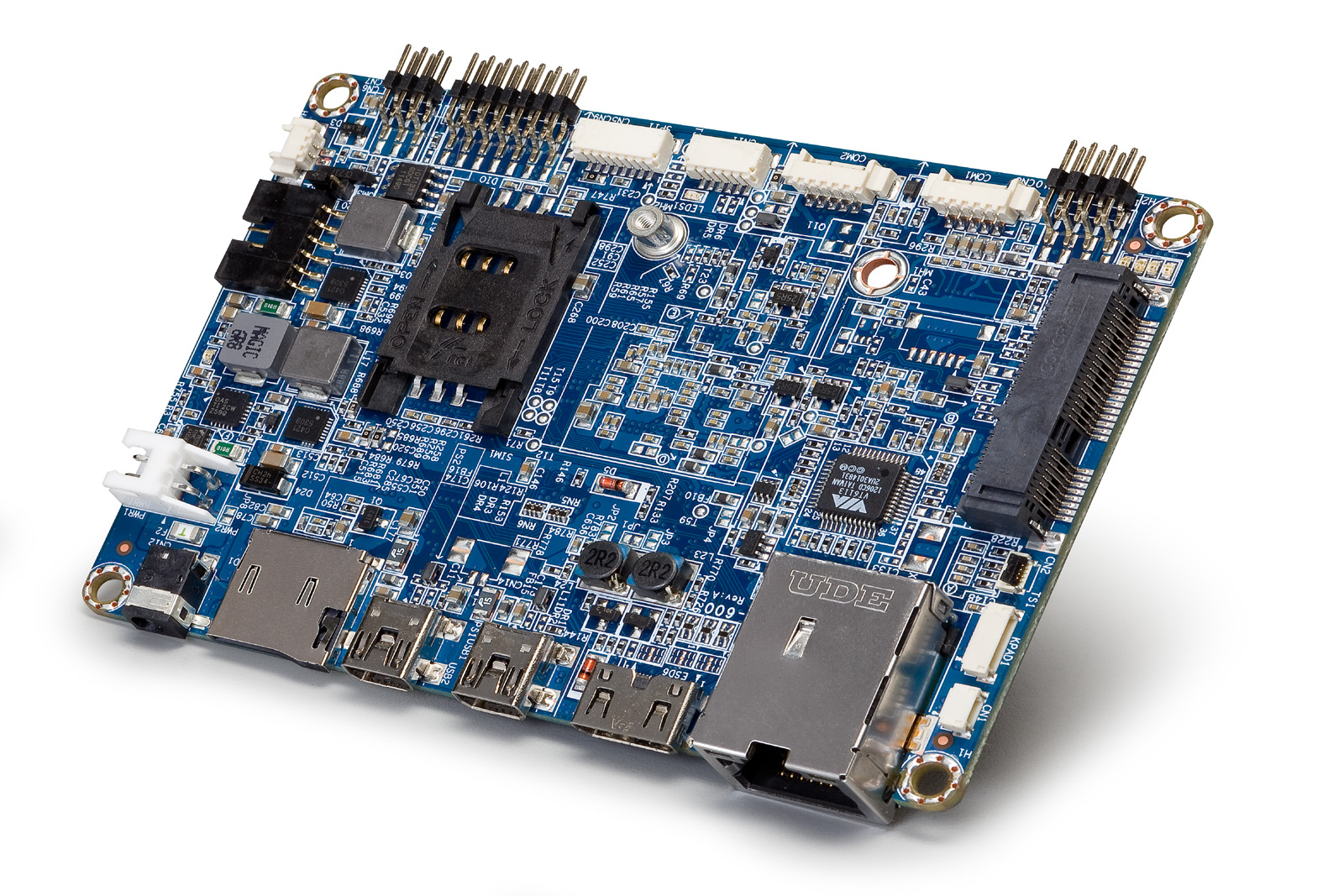

Pico-ITX board with 800MHz Cortex-A9 CPU
4GB eMMC flash, 1GB SDRAM, 2 Mini-USB 2.0, Mini-HDMI, 2 COM, LAN,
12~24V DC-in power
Based on the ultra compact Pico-ITX form factor,
measuring 10 cm x 7.2 cm, the VIA VAB-600 combines a wide
operating temperature range (0°C up to 60°C) with
extremely low power consumption and optional 3G connectivity to
fuel in-vehicle innovation as well as a wide range of mobile and
healthcare applications.
The VIA VAB-600 Pico-ITX board packs a rich feature set with
superb multimedia performance, including a built-in Multi-standard
decoder for playback support of the most demanding video formats
in resolutions up to 1080p. Leveraging VIA’s hardware design
expertise, the VIA VAB-600 includes a broad range of on-board
pin-headers to provide optional 3G or WiFi connectivity, touch
screen support and the choice of either battery (optional) or
12V~24V DC-in power in an ultra-compact design ideal for mobile
and in-vehicle applications.
The VIA VAB-600 is also available
with board support packages (BSP) for Android and embedded Linux
(Kernel 3.0.8) operating systems.
| Weight | 2 lbs |
|---|---|
| Dimensions | 3.94 × 2.83 × 0.2 in |
| Chipset Maker | VIA |
| Model Number | VAB-600 |
| Brand | VIA Technologies |
| Dimensions | 100 mm × 72 mm |
| Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Form Factor | SBC |
| Cooling | None |
| Power | 12 V to 24 V |
| CPU | ARM Cortex-A9 |
| Speed | 800 MHz |
| System Memory | 4 GB eMMC |
| Motherboard Type | Pico ITX |
| Software Support | Linux, Android |
| Memory Socket | 1 GB DDR3-1066 |
| Warranty | 1 Year |
