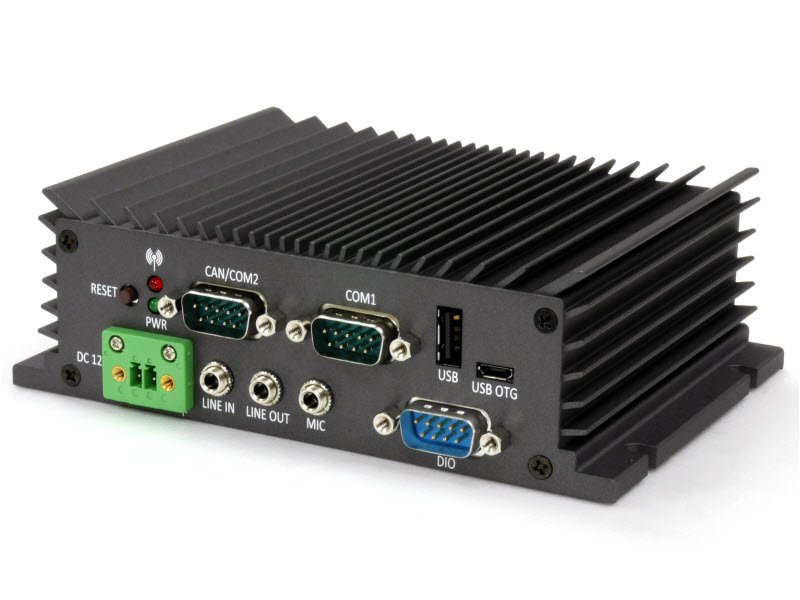

VIA Technologies AMOS-820 Pico ITX Embedded PC | 1 GHz NXP ARM Cortex-A9 | AMOS-820-1Q10A2
VIA Technologies AMOS-820 Pico ITX Embedded PC | 1 GHz NXP ARM Cortex-A9 | AMOS-820-1Q10A2 - Image 2
VIA Technologies AMOS-820 Pico ITX Embedded PC | 1 GHz NXP ARM Cortex-A9 | AMOS-820-1Q10A2 - Image 3
VIA Technologies AMOS-820 Pico ITX Embedded PC | 1 GHz NXP ARM Cortex-A9 | AMOS-820-1Q10A2 - Image 4
VIA Technologies AMOS-820 Pico ITX Embedded PC | 1 GHz NXP ARM Cortex-A9 | AMOS-820-1Q10A2 - Image 5

VIA Technologies AMOS-820 Pico ITX Embedded PC | 1 GHz NXP ARM Cortex-A9 | AMOS-820-1Q10A2

Fanless, ARM-based compact system with Freescale Cortex-A9 1 GHz, 4 GB flash, 1 GB DDR3 SDRAM, 3— USB 2.0, HDMI, LAN, micro SD slot, COM, CAN bus, DC-in power

$554.00

Related Products

You may also like…

Description

Ultra-compact ARM-based embedded system with quad-core VIA VAB-820 pico-ITX board with 1.0 GHz Freescale i.MX6 ARM Cortex-A9 SoC, 4 GB flash, 1 GB RAM, HDMI, LVDS, 4× USB 2.0 and USB OTG, 2COM, LAN, DC-in power, CAN bus, video-in.

  • 1.0 GHz quad-core Freescale i.MX 6Quad ARM Cortex-A9 SoC
  • Fanless operation and robust casting construction
  • Supports a wide operating temperature range, –20 °C up to 65 °C
  • Ultra-compact design (150 mm × 46 mm × 108 mm)
  • Three independent, integrated graphics processing units, plus capture-in support
  • Extremely low power consumption, 7 W under typical conditions
  • Rich connectivity and legacy I/O support, including dual CAN bus
  • Multiple mounting options, including VESA mounting brackets
  • Support for Linux and Android
  • Optional 3G, Wi-Fi and PoE (power over Ethernet)
  • 5–7 years longevity

Additional information

Weight 5.8 lbs
Dimensions 5.93 × 1.89 × 4.07 in
Chipset Maker

VIA
Brand

VIA Technologies
Model Number

AMOS-820-1Q10A2
Dimensions

150.5 mm × 48.1 mm × 103.3 mm
Temperature

–20 °C to 65 °C (–4 °F to 149 °F)
Form Factor

Embedded PC
Product Series

VIA AMOS
Processor Series

NXP ARM
Cooling

None
Power

12 V
CPU

NXP ARM Cortex-A9
Speed

1 GHz
System Memory

4 GB eMMC
Motherboard Type

Pico ITX
Software Support

Linux, Android
Memory Socket

1 GB DDR3-1066 Using 128M×16 Memory Devices
Storage

1× Micro SD Card
Warranty

1 Year
