Jetway JBC320U93W-2930-B NUC | Intel® Celeron® N2930

Fanless embedded Intel Baytrail NUC barebone, 2— LAN, 2— HDMI, COM, mSATA + 2.5 in. bay

$415.00

Please contact us for purchasing options.

Related Products

Description

Features:

  • Fanless Embedded Barebone System with Planned Lifecycle
    Through Q1’2019
  • Fanless Black Aluminum Enclosure
  • Intel Celeron N2930 1.83 – 2.16GHz Quad-core SoC
  • Up to 8GB DDR3L-1333 Total Memory
  • 2× HDMI Ports, Dual Display up to 1920 x 1200
  • 1× Full-size mSATA Slot, 1× 2.5″ SATA2 Drive Bay
  • 802.11 b/g/n + Bluetooth 4.0 WIFI
  • Dual Intel Gigabit LAN, HD Audio, 1× Serial Port
  • 1× USB 3.0 Port, 3× USB 2.0 Ports
  • Watchdog Timer, 36W 12V AC Adapter
  • Includes Wall Mount + VESA Mount + DIN Rail Mount kit and DIN
    Rail Clip

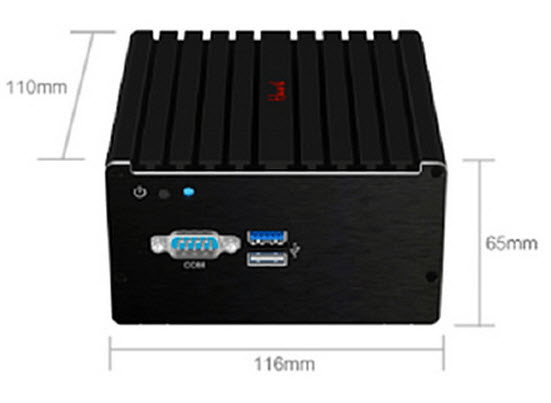

  • Only 65× 110 x 116mm (1.93″ x 4.33″ x 4.57″)

Applications:

  • Digital Signage
  • Set Top Box
  • Thin Client
  • Car Entertainment
  • Smart Mini PC
  • POS/POI
  • KIOSK
  • HTPC

Highlights:

  • INTEL Bay Trail-M N2930 SoC Processor 1.83GHz, Quad-Core, 7.5W
  • Embedded Long-life Series, 5 Year Availability
  • NUC Form Factor (101mm X 101mm) Design for Fanless Systems
  • 9V~24V DC jack on back panel for external power supply
  • Additional 2.5″ HDD Bay & 2× HDMI & 2× LAN
  • ECO-design for EuP/ErP

Additional information

Weight 3.6 lbs
Dimensions 4.57 × 4.33 × 2.56 in
Chipset Maker

Intel
Model Number

JBC320U93W-2930-B
Brand

Jetway
Dimensions

116 mm × 110 mm × 65 mm
Temperature

0 °C to 40 °C (32 °F to 104 °F)
Form Factor

NUC
Product Series

Jetway Hawk Series
Processor Series

Intel® Celeron®
Cooling

None
Power

9 V to 24 V
CPU

Intel® Celeron® N2930
Speed

1.83 GHz
Motherboard Type

NUC
Bios

AMI UEFI
Software Support

Windows, Linux
Memory Socket

1× 204-Pin DDR3L-1333 SO-DIMM Single Ch. Max. 8 GB
Storage

1× SATA2 3 Gb/s, 1× mSATA (Full-Sized)
Warranty

1 Year
