VIA Technologies VP-7910-P1Q12A1 Touch Panel PC | VIA Eden

Description

Features

• 1.6GHz VIA Eden X4 quadcore CPU
• Projected Capacitive multi-touch screen
• 1024× 768 Resolution
• Supports one mSATA and one hard disk drive bay
• Supports two minPCIe slots and two SIM card slots for
• 3G/Wi-Fi communication front panel IP65 compliant against
  water and dust

VIA VIPRO VP7910 Fanless Panel PC

The VIA VIPRO VP7910 is an embedded panel PC with a 10.4″” TFT LCD
resistive touch screen that is ideal for a wide variety of
embedded, multimedia, and industrial HMI (Human Machine Interface)
applications requiring low power consumption, fanless and
noise-free operation, and multiple IO ports.

Hardware

Powered by a 1.0 GHz dual core VIA Eden X2 E-Series processor and
the VIA VX11H media system processor featuring an integrated VIA
ChromotionHD 5.0 video processor with DirectX 11 support, the VIA
VIPRO VP7910 delivers blistering multimedia performance in a
highly-integrated panel PC form factor.

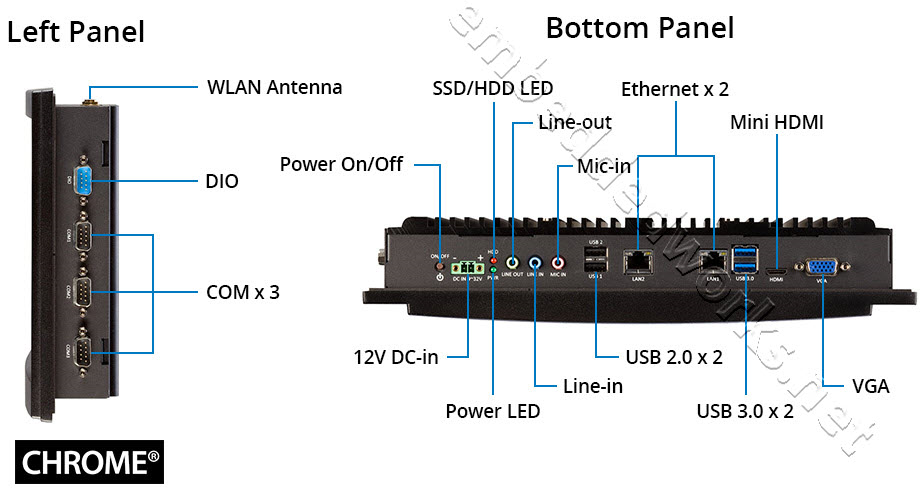

VIPRO VP7910 Hardware Overview

The system comes with a rich array of I/O features, including USB
3.0 connectivity, dual GLAN support as well as one HDMI and one
VGA port that enable dual independent displays. It also has two
MiniPCIe slots which offer dual SIM card support in order to
reduce roaming charges for cross-border transportation
applications, plus one mSATA socket and a 2.5″ internal HDD drive
bay for storage. A variety of mounting options are available for
flexible installation.

Wake On LAN (WOL) and pre-boot execution environment (PXE) are
also supported, allowing the creation of a host of remotely
managed IoT devices for almost any environment.
