Jetway JBC512F3DPW-1900-B Embedded PC | Intel® Celeron® J1900

Description

POE Application for Network Video Recorder (NVR) and Digital
Security,  Fanless Barebone, Bay Trail, Intel Celeron J1900
SoC, 4GB Onboard Memory, 2*Intel GbE LAN, 4*10/100 with POE+ (25W
per port), DVI-I, 1*2.5″ SATA Bay, mSATA/mPCIE, 802.11b/g/n+BT 4.0
WIFI, 1*USB3, Audio, Wall+DIN Rail Mount, AC Terminal Block
(Phoenix Contact)

Features:

• Intel Celeron Bay Trail J1900 SoC Processor
• Embedded Long-life Series, 5 Year Availability
• POE System for Network Video Recorder (NVR) and Digital
  Security

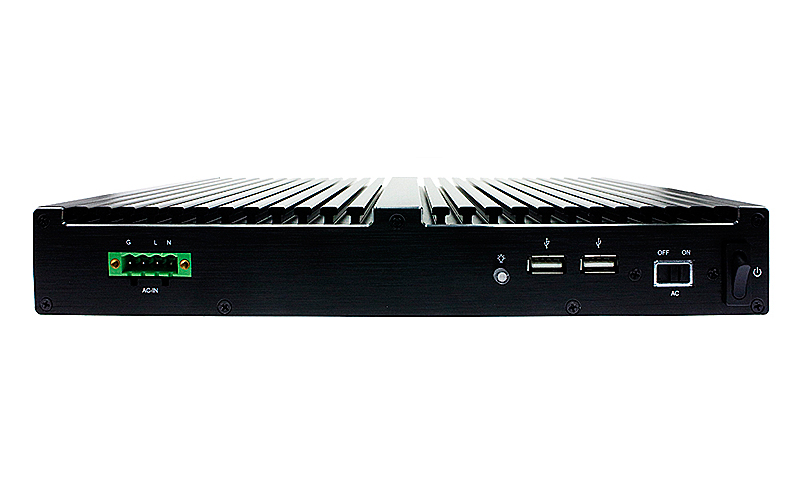

• Built-in 150W AC-DC Power with a AC Terminal Block (Phoenix
  Contact)

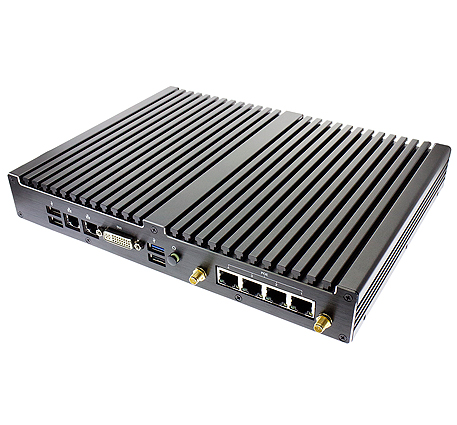

• 4 * 10/100 LAN with POE, up to 25W per port
• Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
• ECO-design for EuP/ErP

The max output power is 150W with a wide range AC input voltage
from 90Vac to 264Vac. The output power is one channel +12V, 6A,
and the other channel is -52.5V, 1.65A. The power have the power
factor correction, output short circuit protection, output over
current protection, output overvoltage protection, PG monitor
signal and over temperature protection functions, etc.

Includes:

• Power Cord x1
• Wall Mount Kit
• 4 Pin Male Phoenix Contact Terminal Block x1
• DIN RAIL x2
• CD Disk x1
• Manual x1
• Screw Pack x1
• WIFI antenna (with HBJC512F3DPW-1900-B model)
