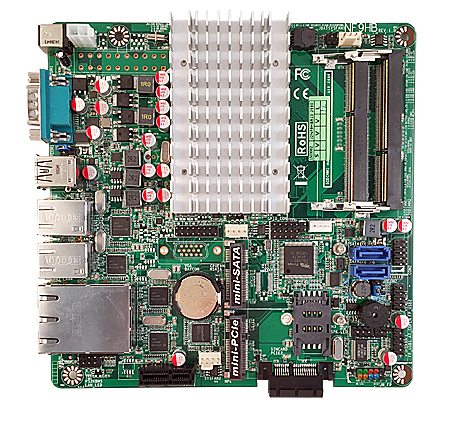

Jetway NF9HB-2930 Mini ITX | Intel® Celeron® N2930

Description

• Intel Celeron N2930 SoC Processor
• Embedded Class Planned Lifecycle through Q2.2019
• Quad Gigabit Intel LAN & 1 Pair LAN Bypass
• Ultra Slim Design with 20mm z-height and Low Profile IO Shield
• 12V DC-in or Alternate Internal 2-pin Power Connector
• ECO-design for EuP/ErP

Applications:

• Networking/Network Appliances
• Industrial Automation/Control
• Thin Client

Features:

• Processor : Intel Celeron N2930 SoC, 1.83GHz – 2.16GHz
  Burst, Quad-Core, 7.5W TDP/4.5W SDP
• Memory: 2× 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V
  required)
• Graphics: Intel HD Graphics, 313MHz – 854MHz
• LAN: 4× Intel i211AT Gigabit Ethernet, 1-pair
  with LAN Bypass function
• Storage:
• 2× SATA2 3Gb/s Connector
• 1× mSATA (Full size)
• Super IO: FINTEK F81768D-I

Back Panel Connectors:

• 1× 12V DC-In jack
• 1× Serial port (RS232/422/485)
• 1× USB 3.0
• 1× USB 2.0
• 4× RJ45 LAN (10/100/1000)

Onboard I/O Connectors:

• 2× PCI Express x1 Slot
• 1× Full size mSATA Slot
• 1× Full size mini PCI-E Slot
• 2× SATA2 3Gb/s Connectors
• 2× USB Pin Headers for up to 4 additional USB 2.0 Ports
• 1× Serial Port Header
• 1× SIM Card Holder
• 1× AT/ATX power switch mode select jumper
• 1× Chassis Intrusion Header
• 1× VGA Header
• 1× 5-pin SMBUS(I2C) Header
• 1× 8-bit GPIO Header
• 4× 2-pin LAN LED Header
• 1× 9-pin Front Panel Header
• 1× 7-pin PS2 Keyboard Mouse Header
• 3× 4-pin Fan Headers
• 1× 2-pin +12V Alternate Power Connector (Molex 5566-2)

Environment
Operating Temperature : 0 ~ 60°
Storage Temperature : -20 ~ 85°C
