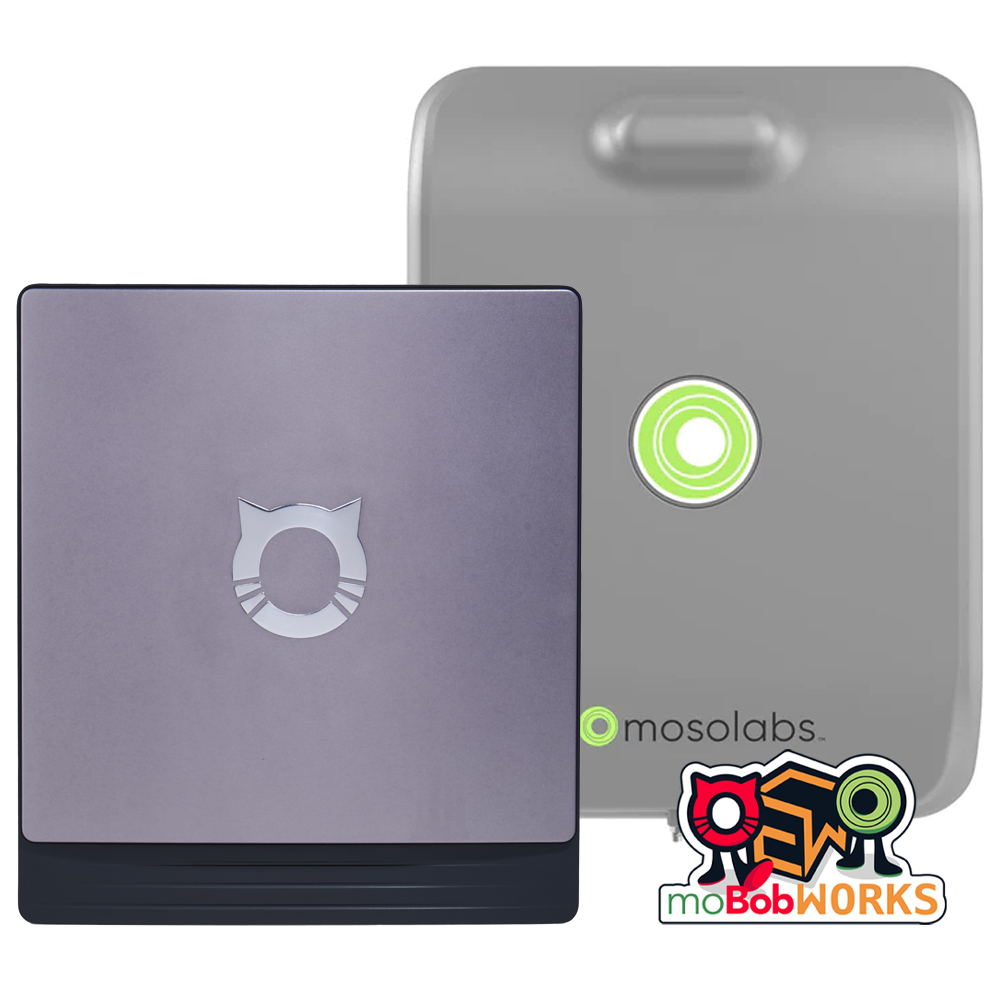

5G Miner Enclosure EZ-KIT allows for multiple CBRS radios from a single PoE power source! Includes an outdoor enclosure, 100-ft outdoor-rated Ethernet cable, and PoE switch, fully prepared and ready for installation.
🧾 All sales are final
$2,598.00
Mine HNT by supporting both LoRaWAN and 5G/LTE coverage.
Plug and play with certified CBRS LTE and 5G small cells.

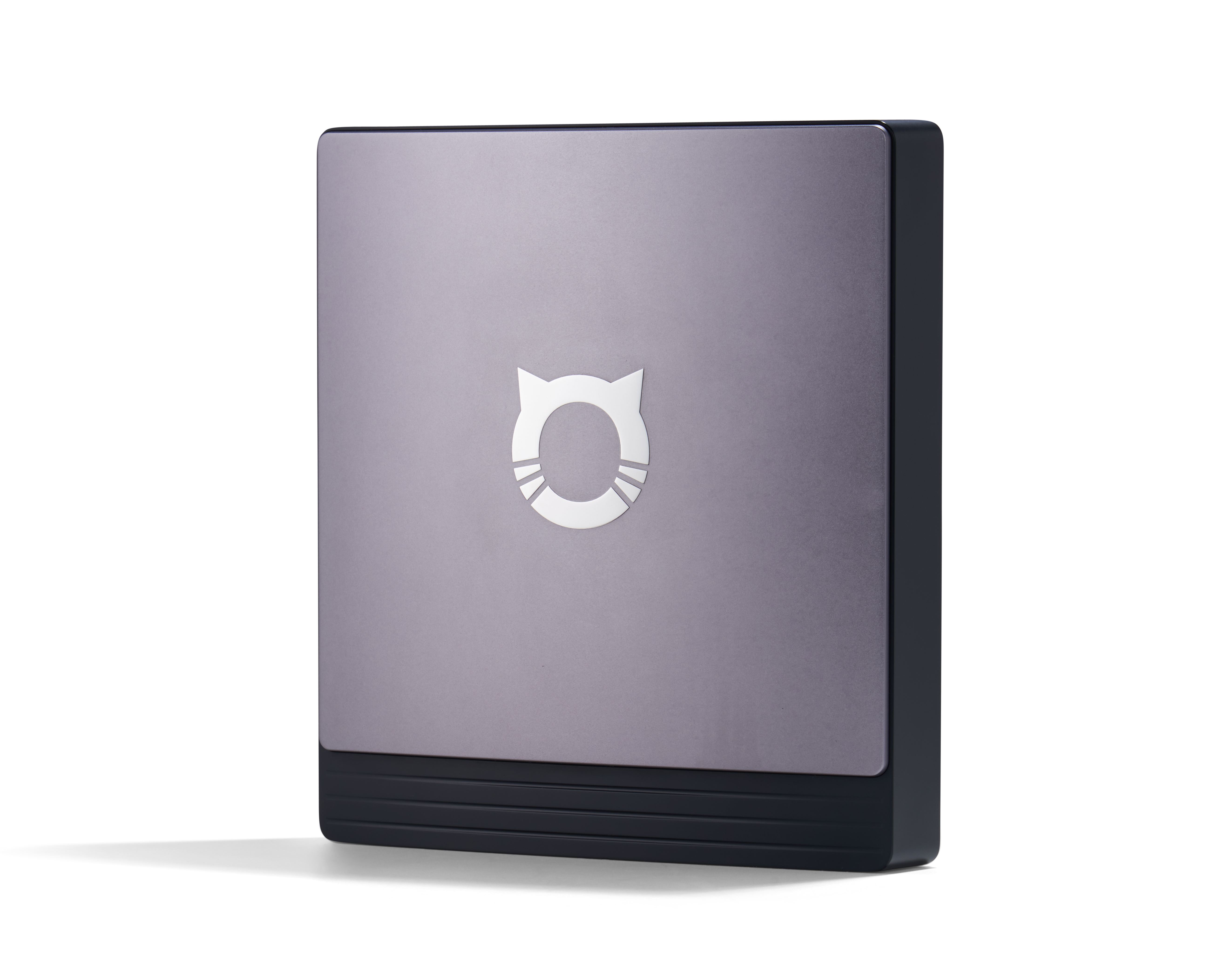

Equipped with an Intel Atom x6413e for optimal processing.
Compatible with all FreedomFi-certified CBRS small cell radios.
Seamlessly blends form and function to provide the highest quality product.
Thermal conducting material dissipates heat, preventing overheating and failure.

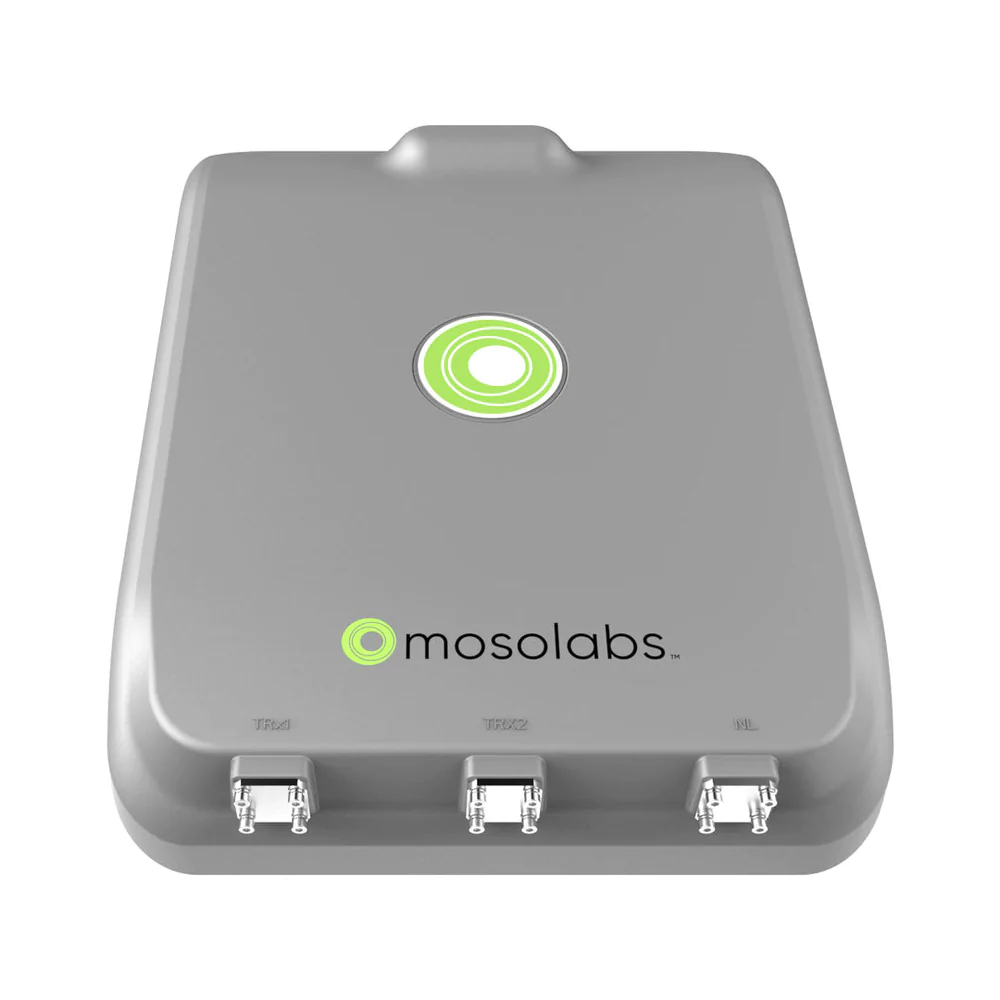

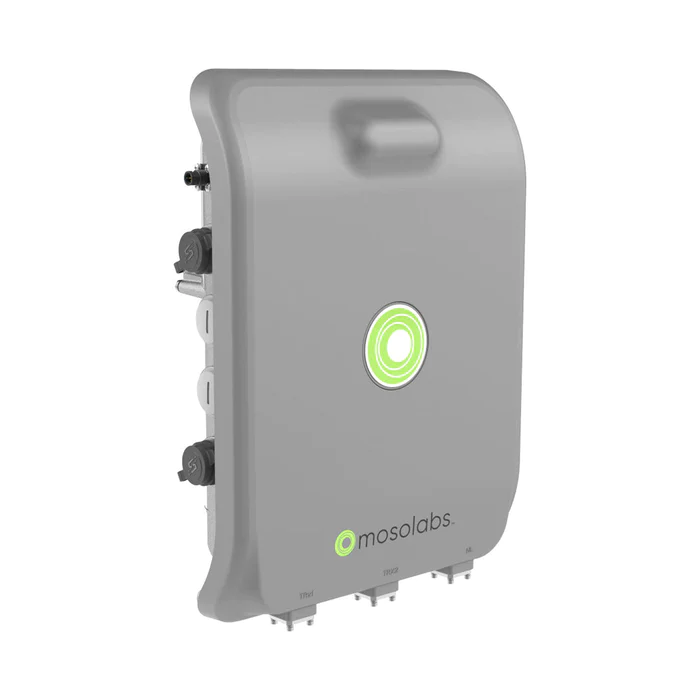

MosoLabs High-Gain Outdoor CBRS Small Cell delivers the best coverage for your Helium 5G network and is plug-and-play certified to work with FreedomFi gateways and any “Powered By FreedomFi” gateway. Pair it with your existing gateway to start building your Helium 5G network and earning MOBILE. With high-performance internal antennas, your network will have the best range possible to connect more clients and earn more crypto. You can even self-install this system without needing an on-site certified professional installer (CPI). This bundle helps you maximize your earning potential!

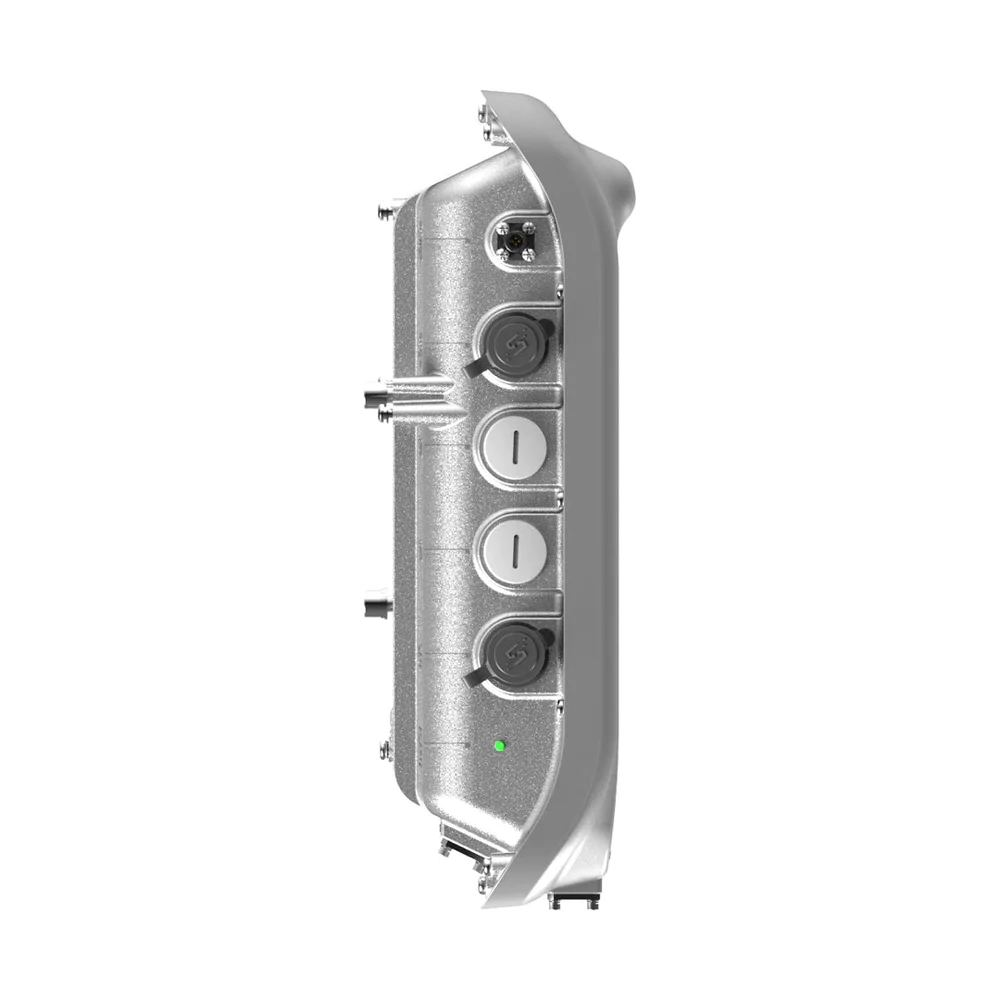

The MosoLabs High-Gain Outdoor CBRS Small Cell incorporates the latest technology, including Carrier Aggregation for optimized throughput performance and integrated high-gain antennas for maximum coverage. This small cell is built to be durable in any environment and must be deployed outdoors on a J-Arm or pole setup. Power over Ethernet (PoE) simplifies the installation with a single Ethernet cable needed to deliver power and data to the small cell.
This product is only available for use in the US as it uses the CBRS spectrum.
| Weight | 3.0 lbs |
|---|---|
| Dimensions | 9.43 × 8.31 × 2.04 in |
| Brand | Bobcat |
| Certifications | FCC (US) |
| CPU | Intel® Atom™ x6413e 3.0 GHz |
| Dimensions | Miner: 239.4 mm × 211 mm × 51.75 mm (9.43 in. × 8.31 in. × 2.04 in.) Small cell radio: 410 mm × 286 mm × 115 mm (16.14 in. × 11.26 in. × 4.53 in.) |
| Frequency | US915 |
| System Memory | 4 GB DDR4-2666 SO-DIMM |
| Model Number | MW-EZ-112-kit2 |
| Power | 12 V/5 A DC, PoE |
| Antenna Placement | External Antennas |
| Storage | 1× 64 GB M.2 SATA III SSD |
| Technology | 5G, 4G LTE, Bluetooth, LoRaWAN, Wi-Fi |
| Temperature | Operating: 0 °C to 60 °C (32 °F to 140 °F) Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Wireless Standard | 802.11bgn + BT |
