Compact form factor
🛡️ Durability: Aluminium housing ensures robustness and longevity even in harsh environments.
🔋 Versatile powering: PoE (passive) capability enables flexible powering options, compatible with a wide voltage range.
🔧 Easy installation: Integrated DIN rail bracket and compact size facilitate convenient installation in any server cabinet.
🌡 Wide temperature range: Operating temperature range from –40 °C to 75 °C ensures reliable performance in various environments.
📄 Regulatory compliance: Compliant with CE, REACH, RoHS, FCC, and other standards, ensuring safety and reliability.
(Power supply sold separately)
$76.00

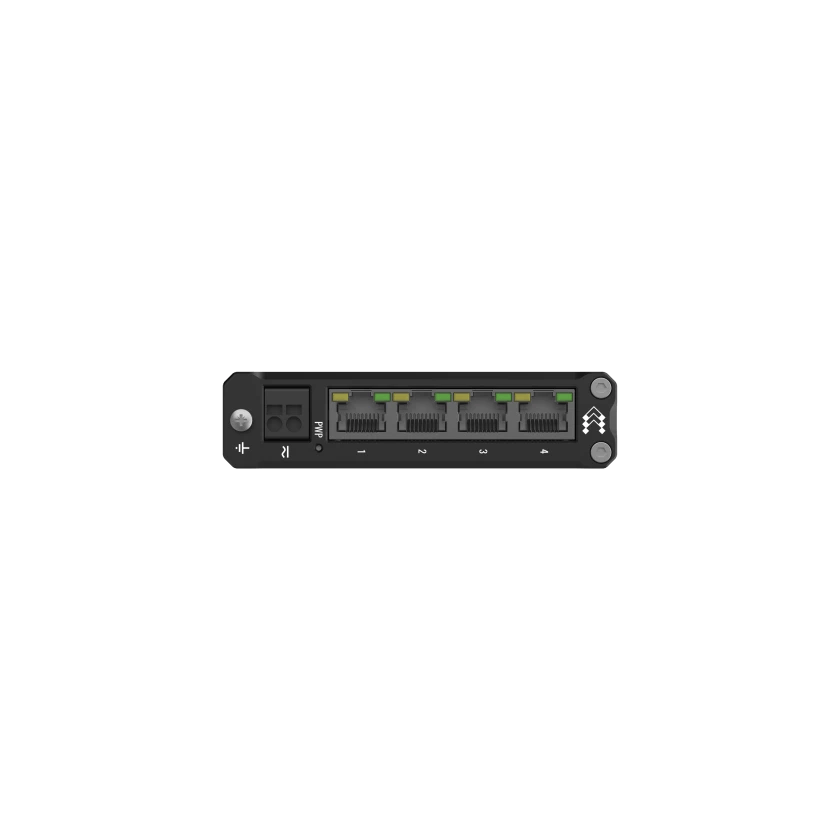

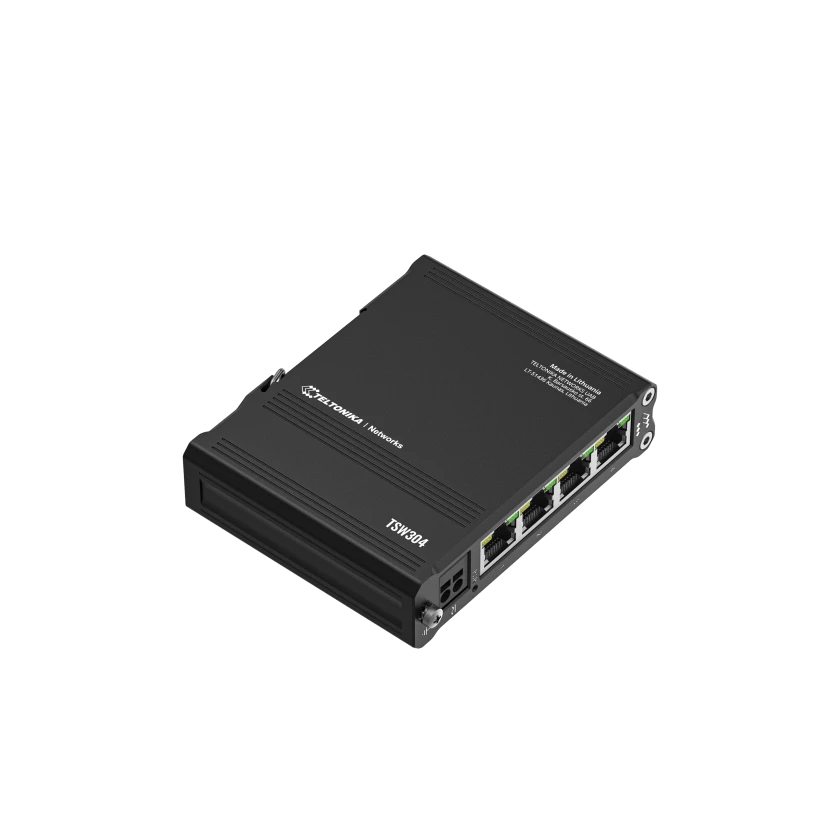

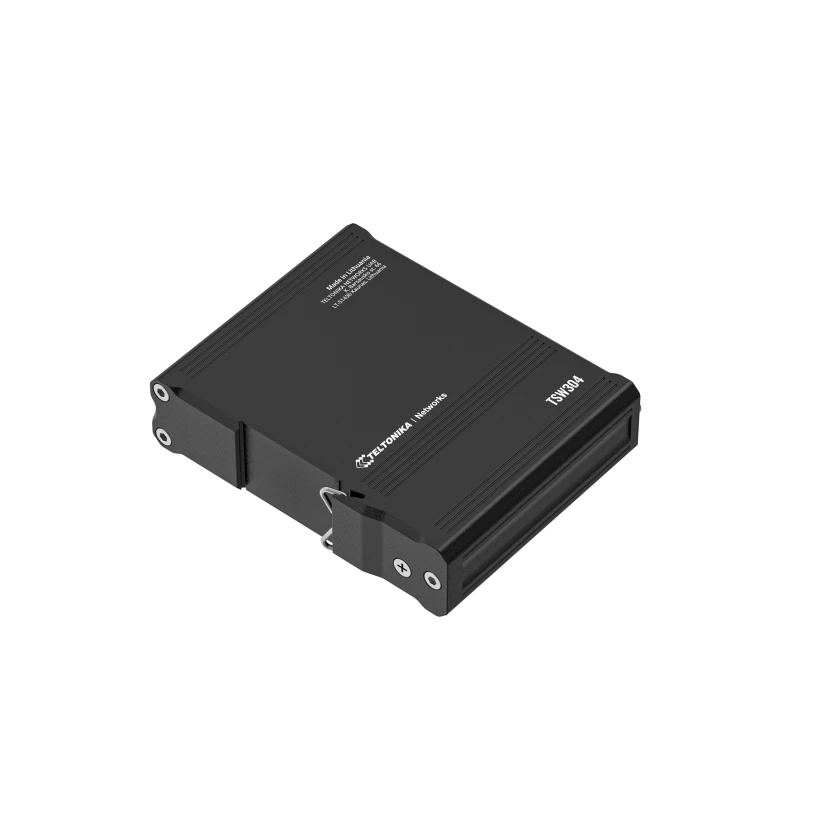

TSW304 is the tiniest Ethernet switch in the Teltonika Networks portfolio, designed for industrial applications. Its ultra-small size and integrated DIN rail mounting option make it ideal for server cabinets. With a durable, shock-resistant casing, it thrives in challenging industrial environments.
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 4.02 × 3.21 × 0.98 in |
| LAN Ports | 4 |
| Brand | Teltonika |
| Model Number | TSW304 000000 |
| Dimensions | 102 mm × 81.5 mm × 25 mm (4.02 in. × 3.21 in. × 0.98 in.) |
| Temperature | –40 °C to 75 °C (–40 °F to 167 °F) |
| Product Family | Teltonika TSW |
| Product Type | Ethernet Switch |
| Device Form Factor | Ethernet Switch |
| Accessory Type | Ethernet Switch |
| Interface | 4× RJ-45 (10/100/1000 Mbps), 1× 2-Pin DC Power |
| Power | 7 to 57 V DC |
| Certifications | CE (EEA), E-Mark (EU), FCC (US), IC (CA), REACH (EU), RoHS (EU), UKCA (UK), WEEE (EU), RCM/A-Tick/C-Tick (AU & NZ) |
