Managed switch (L2 with L3 features)
🔹 Managed switch: L2 with additional L3 features for advanced management capabilities.
🔹 Profinet and more: Supports PROFINET for automated data processing alongside other protocols, like Ethernet/IP and MRP.
🔹 Ethernet & SFP: 8× Gigabit Ethernet ports and 2× SFP ports for fiber optic communication.
🔹 WitchOS: Teltonika Networks OS for switches, intuitively designed for infinite configurations.
🔹 Performance specifications: Bandwidth of 20 Gbps, forwarding rate of 14.88 Mpps, and MAC address table size of 8K entries.
$129.00

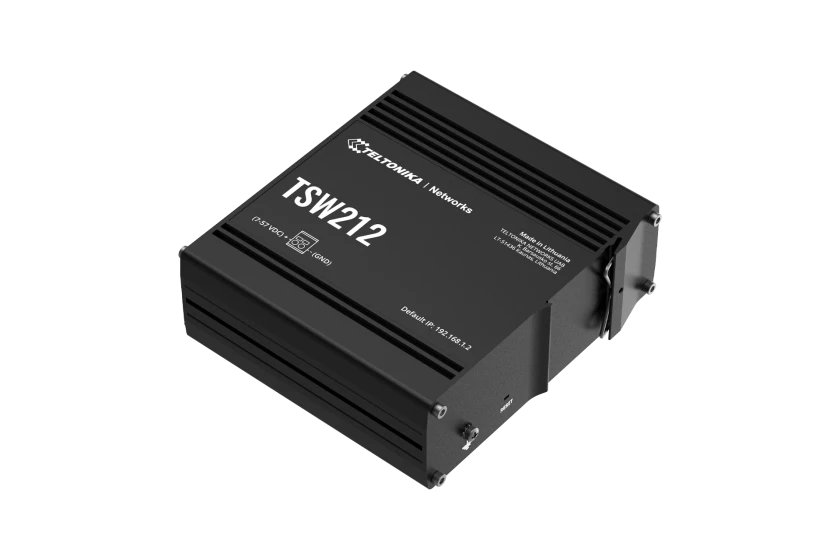

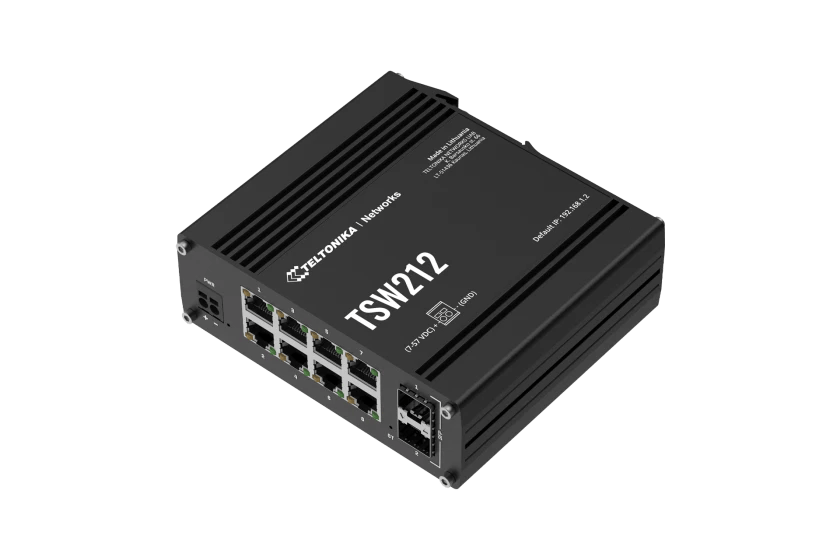

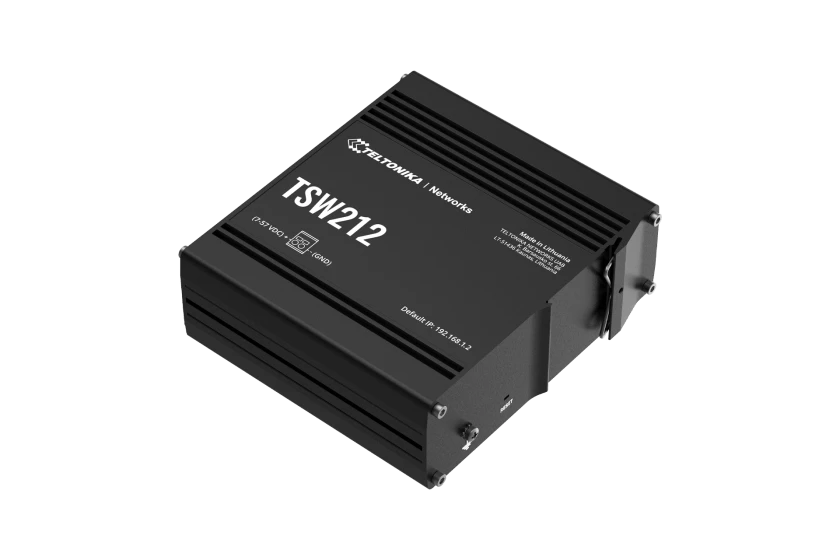

TSW212 is an L2 Teltonika Networks managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including Ethernet/IP, Ethernet , and MRP, and has eight Gigabit Ethernet ports and two SFP ports to ensure robust long-range fiber optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations—all with effortless installation thanks to an integrated DIN rail mount.
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 5.2 × 1.74 × 4.81 in |
| LAN Ports | 8 |
| Brand | Teltonika |
| Model Number | TSW212 000000 |
| Dimensions | 132 mm × 44.2 mm × 122.2 mm (5.2 in. × 1.74 in. × 4.81 in.) |
| Temperature | –40 °C to 75 °C (–40 °F to 167 °F) |
| Product Family | Teltonika TSW |
| Product Type | Ethernet Switch |
| Device Form Factor | Ethernet Switch |
| Accessory Type | Ethernet Switch |

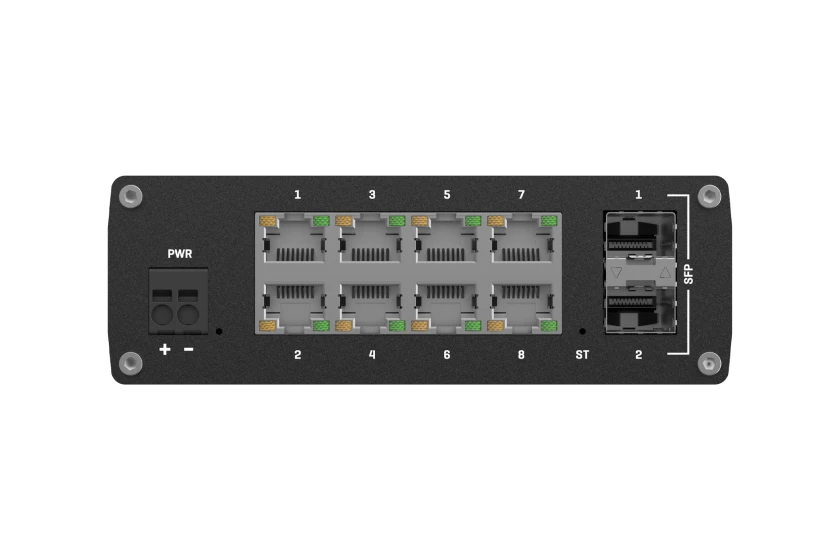

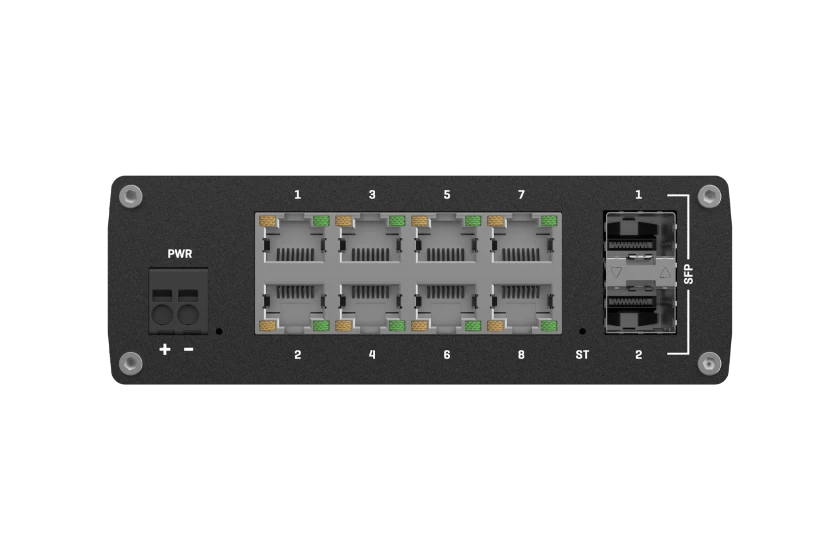

| Interface | 8× RJ-45 (10/100/1000 Mbps), 1× 2-Pin DC Power, 2× SFP |
| Power | 7 to 57 V DC |
| Certifications | ANRT (MAR), CE (EEA), FCC (US), IC (CA), REACH (EU), RoHS (EU), UKCA (UK), RCM/A-Tick/C-Tick (AU & NZ) |
