Tektelic PHOTO1NA915 Solar-Powered 8-Channel IoT Gateway | 100 W | LoRaWAN | T0008623
Tektelic PHOTO1NA915 Solar-Powered 8-Channel IoT Gateway | 100 W | LoRaWAN | T0008623 - Image 2
Tektelic PHOTO1NA915 Solar-Powered 8-Channel IoT Gateway | 100 W | LoRaWAN | T0008623 - Image 3
Tektelic PHOTO1NA915 Solar-Powered 8-Channel IoT Gateway | 100 W | LoRaWAN | T0008623 - Image 4

Tektelic PHOTO1NA915 Solar-Powered 8-Channel IoT Gateway | 100 W | LoRaWAN | T0008623

☔ IP67 rated

🌞 Solar-powered efficiency: Equipped with a solar panel and built-in batteries, the KONA Photon ensures reliable performance in all environmental conditions.

📡 Superior connectivity: Features an integrated 3G/4G modem, GPS, and support for external LoRa and cellular antennas, enhancing coverage and connectivity.

🛡️ Rugged durability: Designed to be IP67-rated, the gateway withstands extreme temperatures (–30 °C to 65 °C) and high winds (up to 150 km/h).

🔧 Remote management: Offers remote configuration, monitoring, control, and software upgrades through the KONA Link web-based interface, ensuring ease of maintenance and low operational costs.

$3,000.00

Related Products

Description

The KONA Photon IoT Gateway is the ultimate solution for autonomous remote deployments. This solar-powered LoRaWAN® gateway is designed for zero-footprint installations, making it perfect for urban and suburban areas, smart cities, agriculture, oil and gas, industrial applications, and asset tracking.

Key features

  • Solar-powered: Equipped with a solar panel that charges built-in batteries, ensuring reliable operation in various environmental conditions.
  • Connectivity: Includes a 3G/4G modem and GPS, supporting external LoRa and cellular antennas to enhance coverage.
  • Robust design: IP67-rated for durability, capable of withstanding temperatures from –30 °C to 65 °C and winds up to 150 km/h.
  • High availability: Ensures low Total Cost of Ownership with features like remote configuration, monitoring, control, and software upgrades via the KONA Link web-based interface.

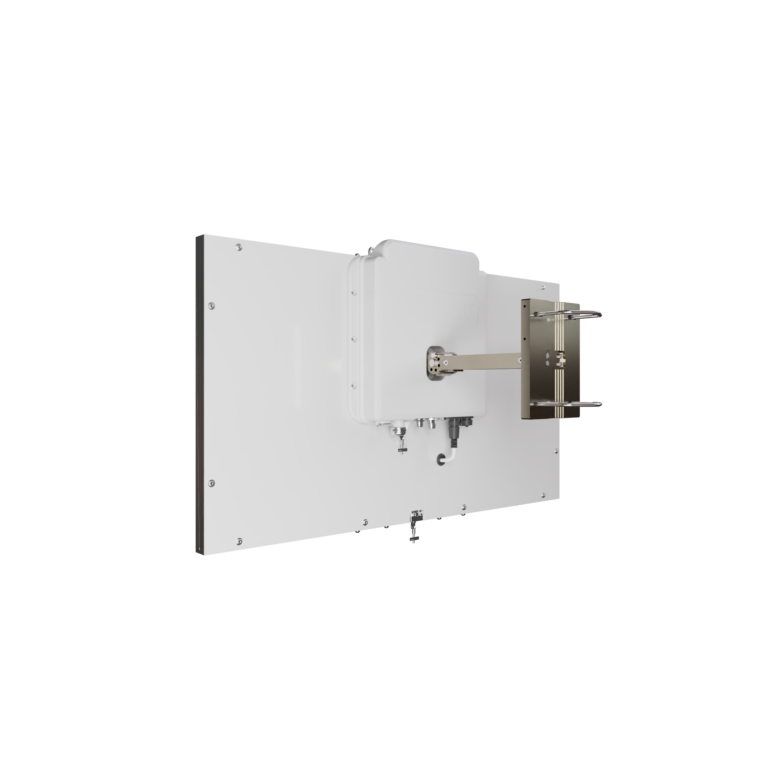

  • Flexible mounting options: Can be mounted on poles, walls, towers, or buildings.

Technical specifications

  • Frequency bands: US915, EU868, AU915, AS923 ISM bands.
  • Transmission: Time Division Duplex with 8 Rx and 1 Tx.
  • Antennas: Internal and optional external cellular antennas, with an external LoRa antenna.
  • Power: 50-hour internal battery life with 5000 charge cycles.

Compliance:

  • Safety standards: Compliant with UL / CSA / EN / IEC 62368-1.
  • Regulatory approvals: FCC, ISED, and CE certifications.

Additional information

Weight 36 lbs
Dimensions 38.19 × 21.26 × 3.54 in
Brand

Tektelic
Model Number

T0008623
Dimensions

970 mm × 540 mm × 90 mm (38.19 in. × 21.26 in. × 3.54 in.)
Temperature

–30 °C to 65 °C (–22 °F to 149 °F)
Sensor Form Factor

Gateway
Application

Networking
Technology

LoRaWAN
Power

Solar, Internal Battery
Battery Life

50 Hours
