📊 Real-Time Monitoring: Report RMS current and accumulated data at intervals as short as 1 second.
🎯 High Accuracy: Sampling frequency up to 3.3 kHz for precise current measurement.
🔋 Self-Powered: Operates without batteries or external wires.
🔧 Easy Installation: Non-invasive clamp design enables installation without power interruptions.
📐 Compact & Flexible Design: Detachable construction allows installation in tight spaces.
🌡️ Temperature Monitoring: Supports external temperature sensor for cable temperature measurements.
🌐 LoRaWAN® Compatible: Seamlessly integrates with Milesight gateways and IoT Cloud.
🔹LED Indicators: Equipped with status and alarm indicators for easy monitoring.
$149.99

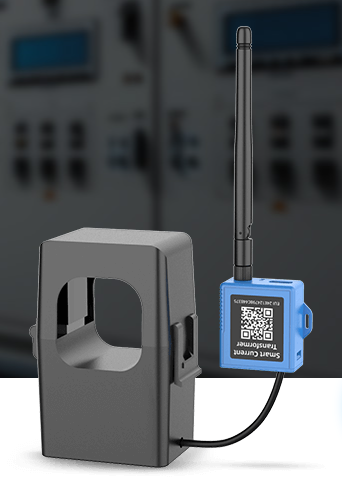

The CT10x LoRaWAN® Smart Current Transformer is an advanced energy monitoring solution designed for remote consumption analysis and real-time current monitoring. With its compact and detachable design, the CT10x ensures flexible installation in various indoor environments, without the need for de-energizing a facility, making the process quick and safe. Equipped with high accuracy and a sampling frequency of up to 3.3 kHz, it is ideal for energy monitoring in smart buildings, machine failure detection, and prevention.
The CT10x is fully compatible with Milesight LoRaWAN® gateways and IoT Cloud solutions, enabling easy monitoring via web or mobile applications. The device also supports temperature sensors for cable temperature measurements, adding versatility to its usage. Self-powered and battery-free, the CT10x provides a hassle-free energy monitoring experience while maintaining high levels of accuracy and performance.
The CT105 has a 500 A limit, with a 2000:1 transformer ratio.
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2.68 × 3.39 × 1.65 in |
| Brand | Milesight |
| Model Number | CT105-915M |
| Dimensions | 68 mm × 86 mm × 41.8 mm (2.68 in. × 3.39 in. × 1.65 in.) |
| Temperature | Operating: –20 °C to 70 °C (–4 °F to 158 °F) Storing: –25 °C to 80 °C (–13 °F to 176 °F) |
| Sensor Form Factor | Sensor |
| Application | Energy Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Current |
