📡 Robust Connectivity: Features an 8-channel LoRaWAN gateway with cellular (4G), Wi-Fi, and Ethernet for reliable multi-backhaul backups.
🚀 High Performance: Equipped with a quad-core industrial processor and SX1302 chip to handle massive traffic from over 2,000 nodes.
🏘 Extensive Coverage: Delivers long-range communication up to 15 km in rural areas and penetrates three floors in urban indoor environments.
🛡 Industrial Design: Rugged IP30-rated metal enclosure supports desktop, wall, or DIN rail mounting for versatile semi-industrial deployments.
💻 Easy Management: Includes a built-in network server and supports integration with platforms like Milesight IoT Cloud, TTN, and ChirpStack.
$429.00

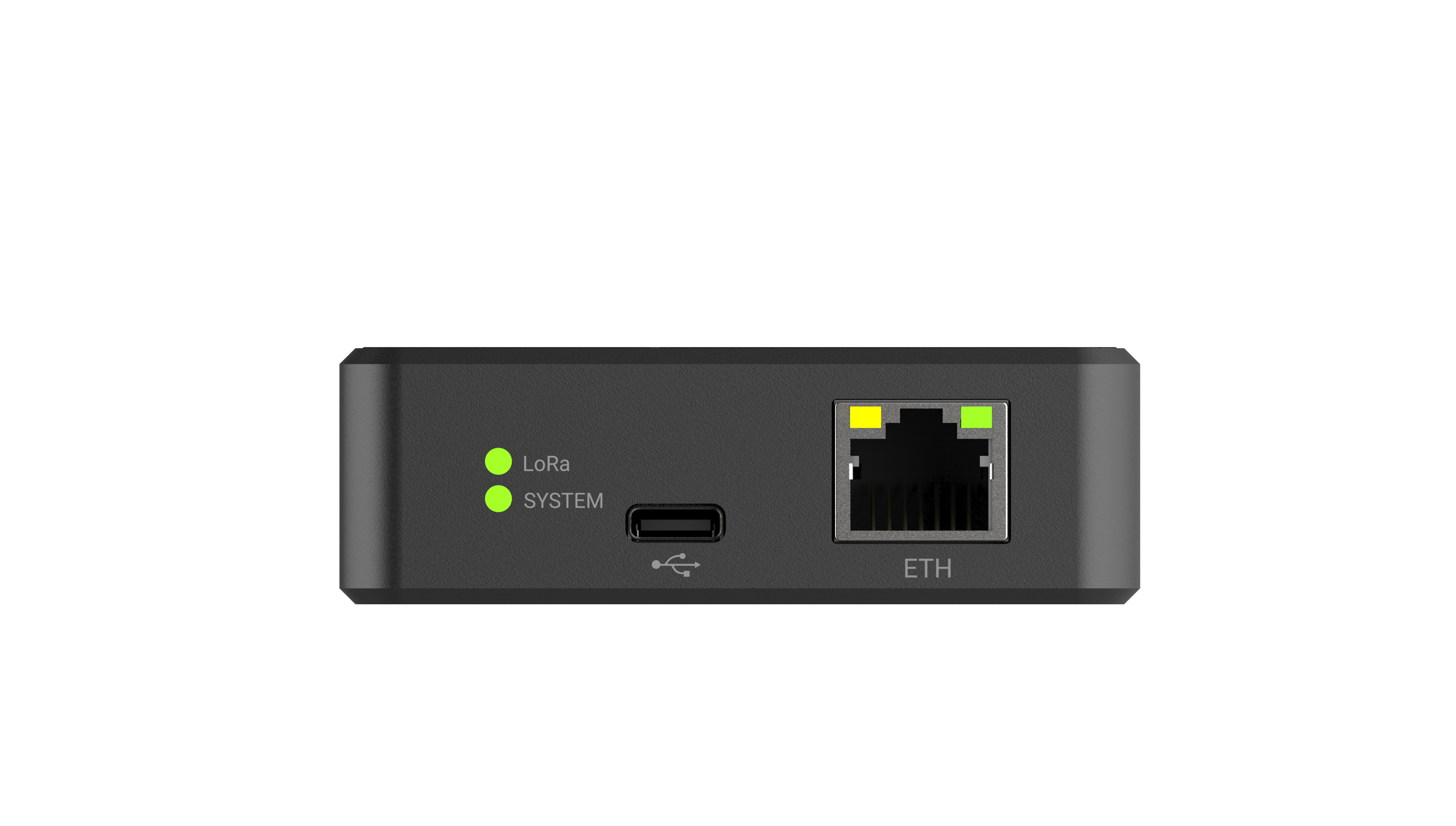

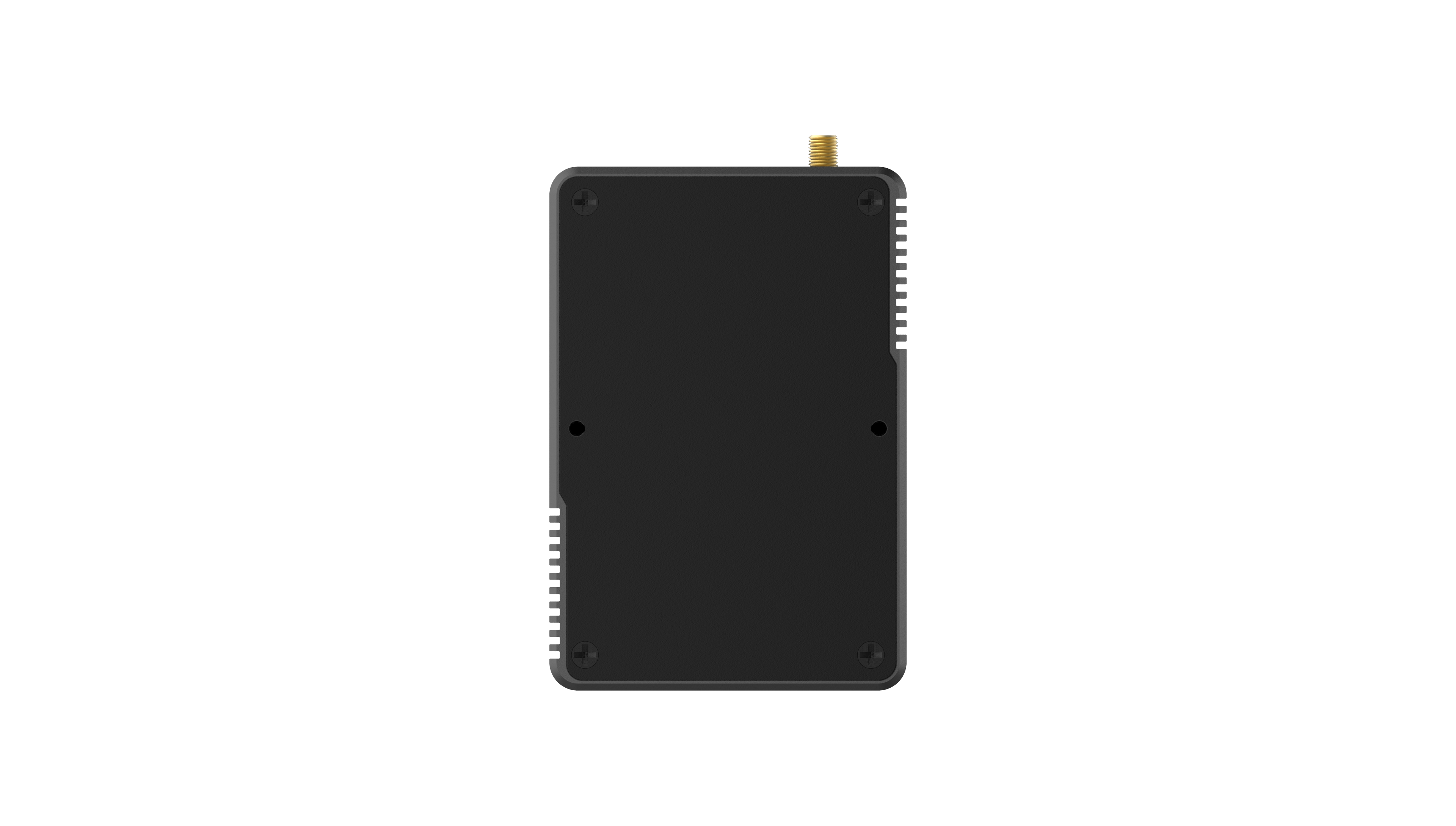

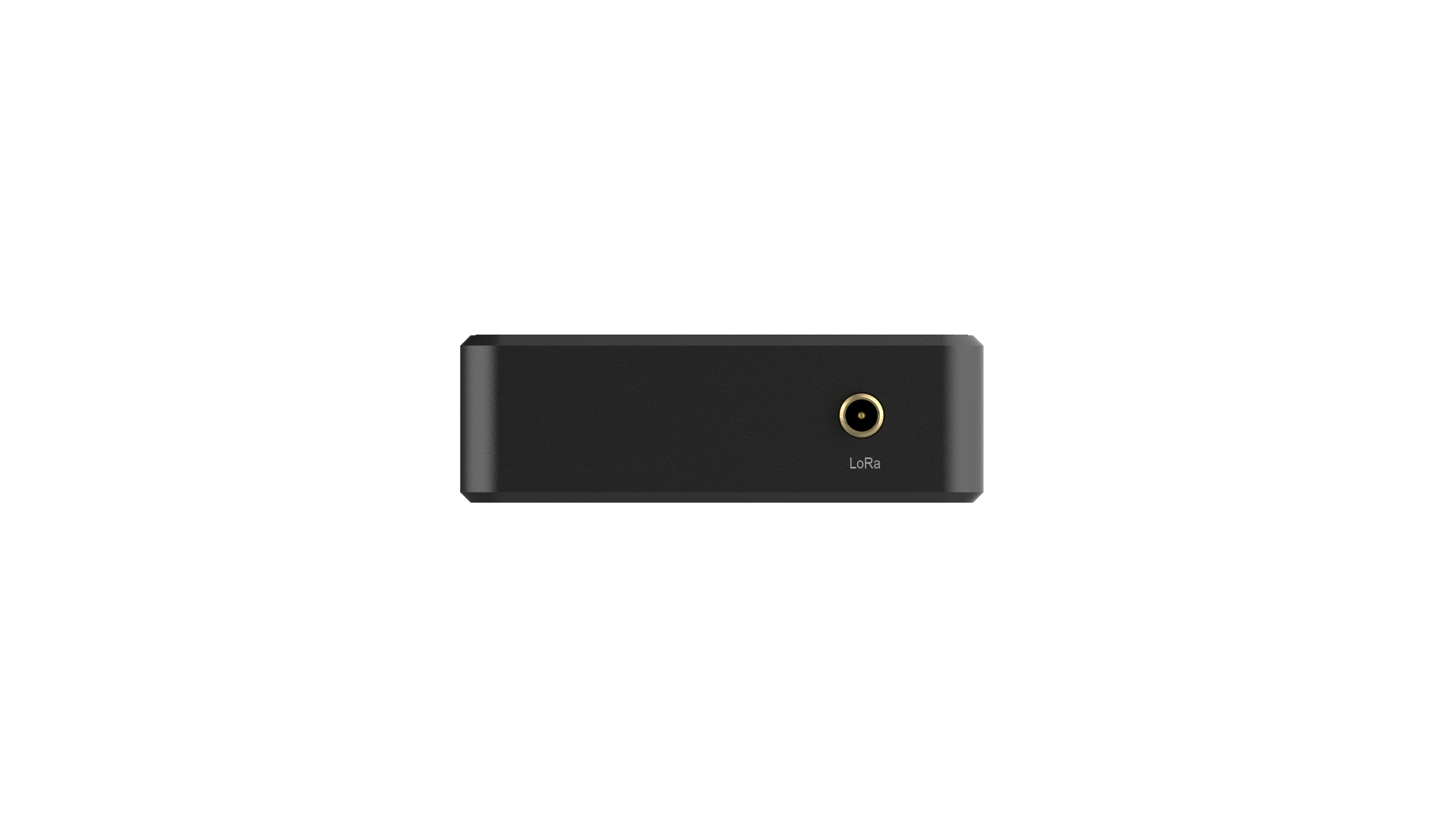

The Milesight UG56 is a robust 8-channel indoor LoRaWAN gateway designed for high-performance connectivity in smart buildings and industrial applications. Powered by a quad-core CPU and the SX1302 chip, it supports over 2,000 nodes with a line-of-sight range of up to 15 km. The gateway features multiple backhaul options including 4G LTE, Wi-Fi, and Ethernet with PoE PD support, ensuring continuous data transmission. With its compact IP30 metal enclosure, integrated network server, and compatibility with platforms like TTI and ChirpStack, the UG56 offers a scalable and easy-to-deploy solution for diverse IoT environments.
For more technical information, please see the datasheet.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5.91 × 5.91 × 1.42 in |
| Brand | Milesight |
| Model Number | UG56-L08GL-915M |
| Sensor Form Factor | Gateway, IoT Gateway |
| Application | Enterprise, Industrial, Networking, Smart Building, Smart City |
| Technology | 4G LTE, Cellular, Ethernet, LoRaWAN, Wi-Fi |
