💡 Smart Dual Control: Provides independent manual and remote LoRaWAN control for two separate electrical circuits or lighting zones.
⚡ Power Monitoring: Tracks real-time voltage, current, power factor, and energy consumption (kWh) with high accuracy.
🛡 Advanced Safety: Features integrated overcurrent protection and a flame-retardant polycarbonate housing to safeguard connected equipment.
📶 Ultra-Low Latency: Utilizes Milesight D2D protocol for direct device-to-device communication and automation in under one second without a gateway.
📲 Easy Configuration: Equipped with NFC technology for simple one-touch setup and management via the Milesight ToolBox mobile app.
$90.00

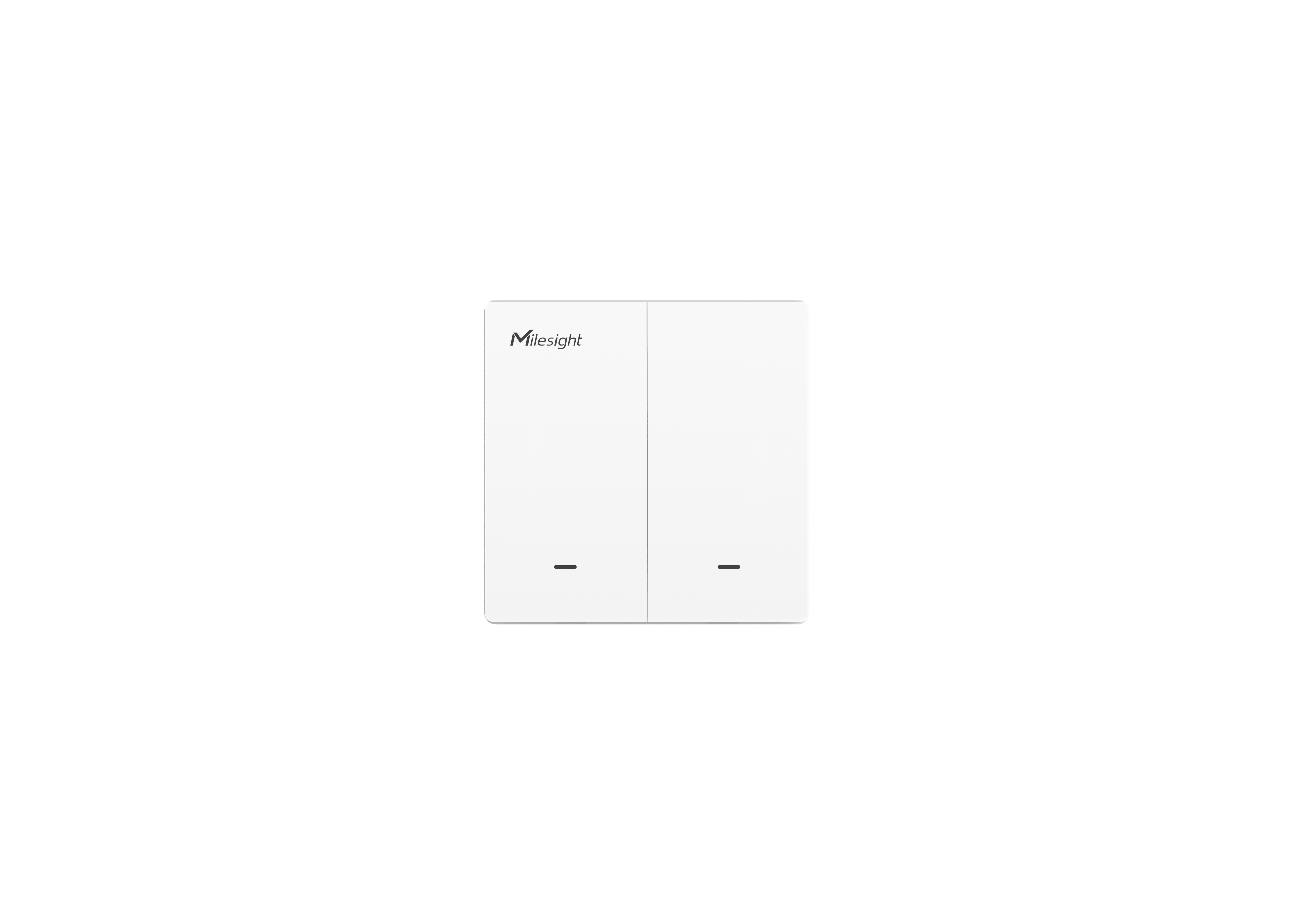

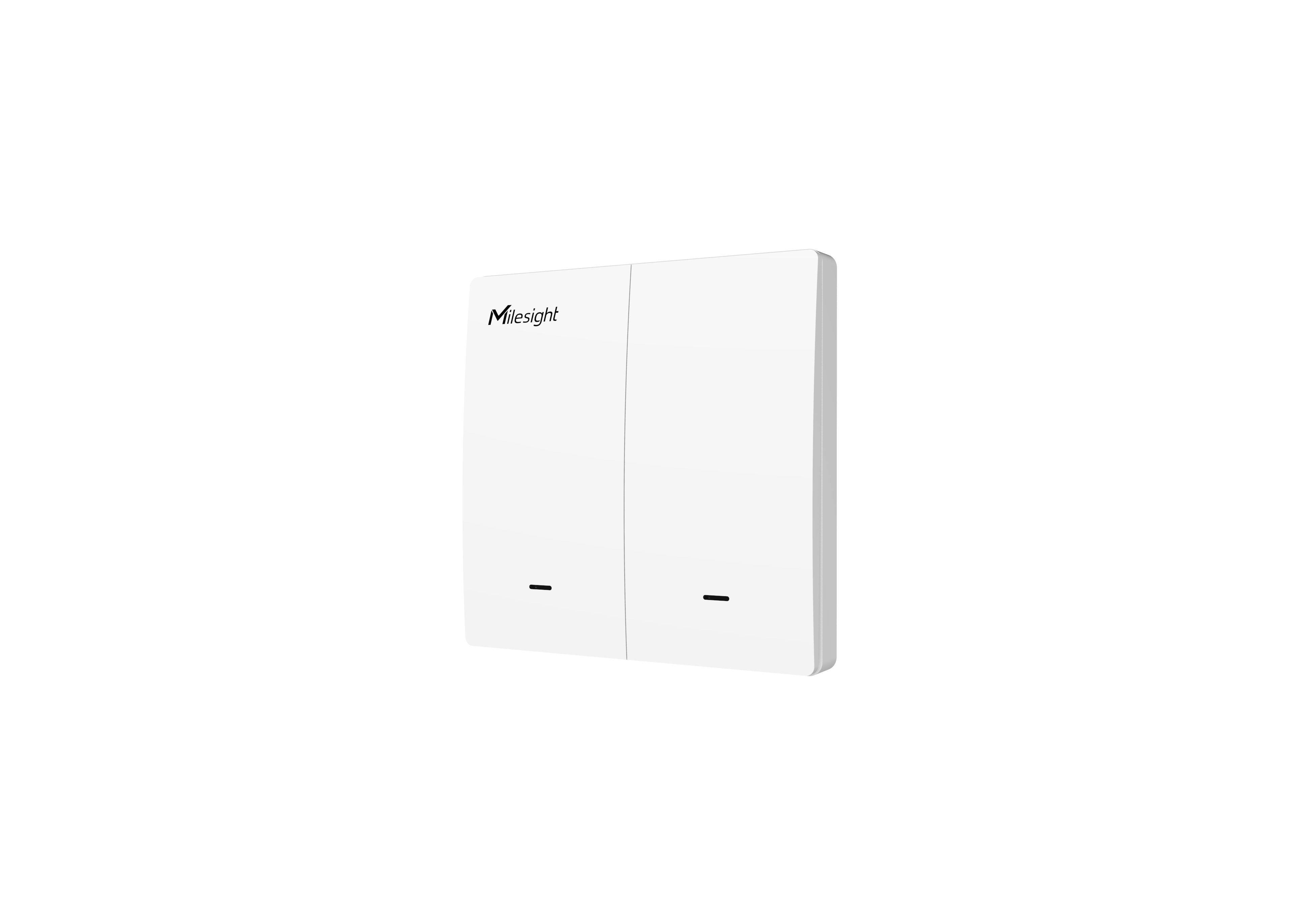

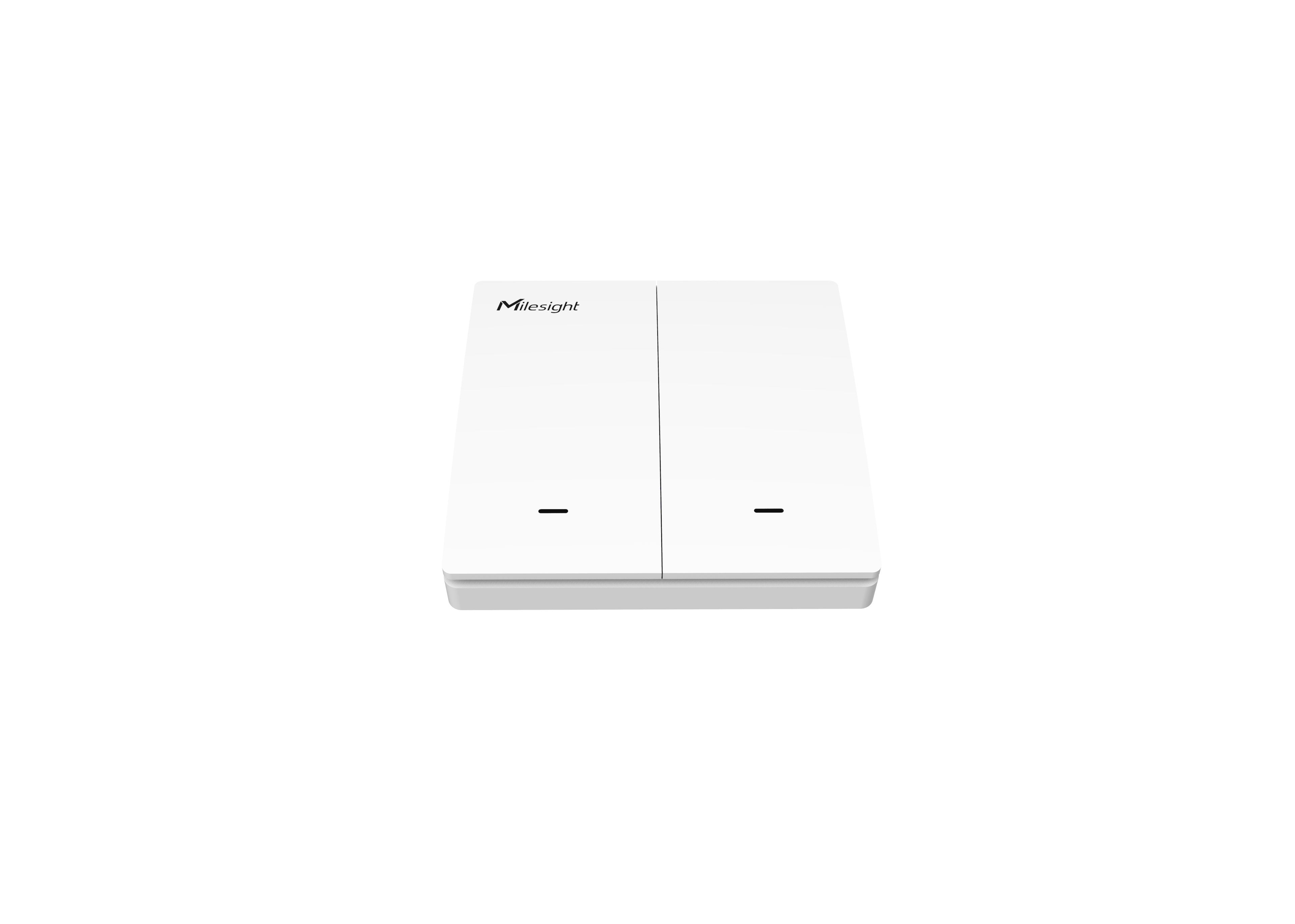

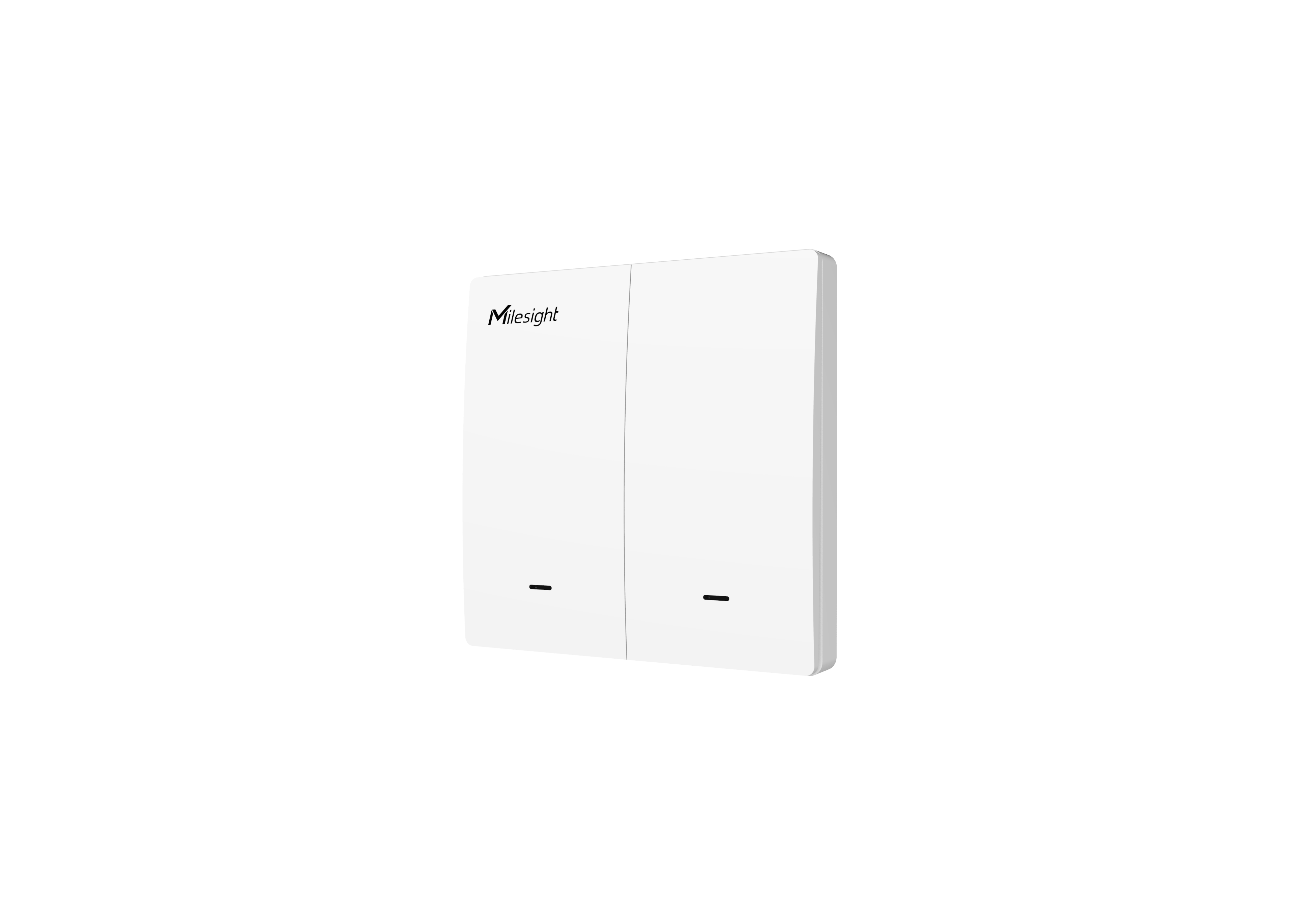

The Milesight WS502-915M-3W-W11-EU is a high-performance 2-gang LoRaWAN smart wall switch designed for intelligent lighting and appliance control in smart building applications. This 3-wire version requires a neutral wire and supports a wide input voltage range of 100-250 VAC, with a maximum load of 1000W per gang (2000W total). It features integrated power monitoring for real-time tracking of voltage, current, power factor, and consumption (kWh), alongside overload protection for enhanced safety. The switch supports the Milesight D2D protocol for ultra-low latency local automation and NFC for easy mobile app configuration. With its durable flame-retardant housing and standard EU 86-type form factor, the WS502 is an ideal solution for modernizing facilities in offices, hotels, and homes.
For more technical information, please see the datasheet.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5.91 × 5.91 × 1.42 in |
| Brand | Milesight |
| Model Number | WS502-915M-3W-W11-EU |
| Sensor Form Factor | Switch |
| Application | Energy Monitoring, Enterprise, Smart Building, Smart City |
| Technology | LoRaWAN, NFC |
| Sensor Type | Button, Current, Voltage |
