🌐 Global Connectivity: Features comprehensive 4G LTE, 3G, and 2G cellular support to ensure reliable data transmission across various regions.

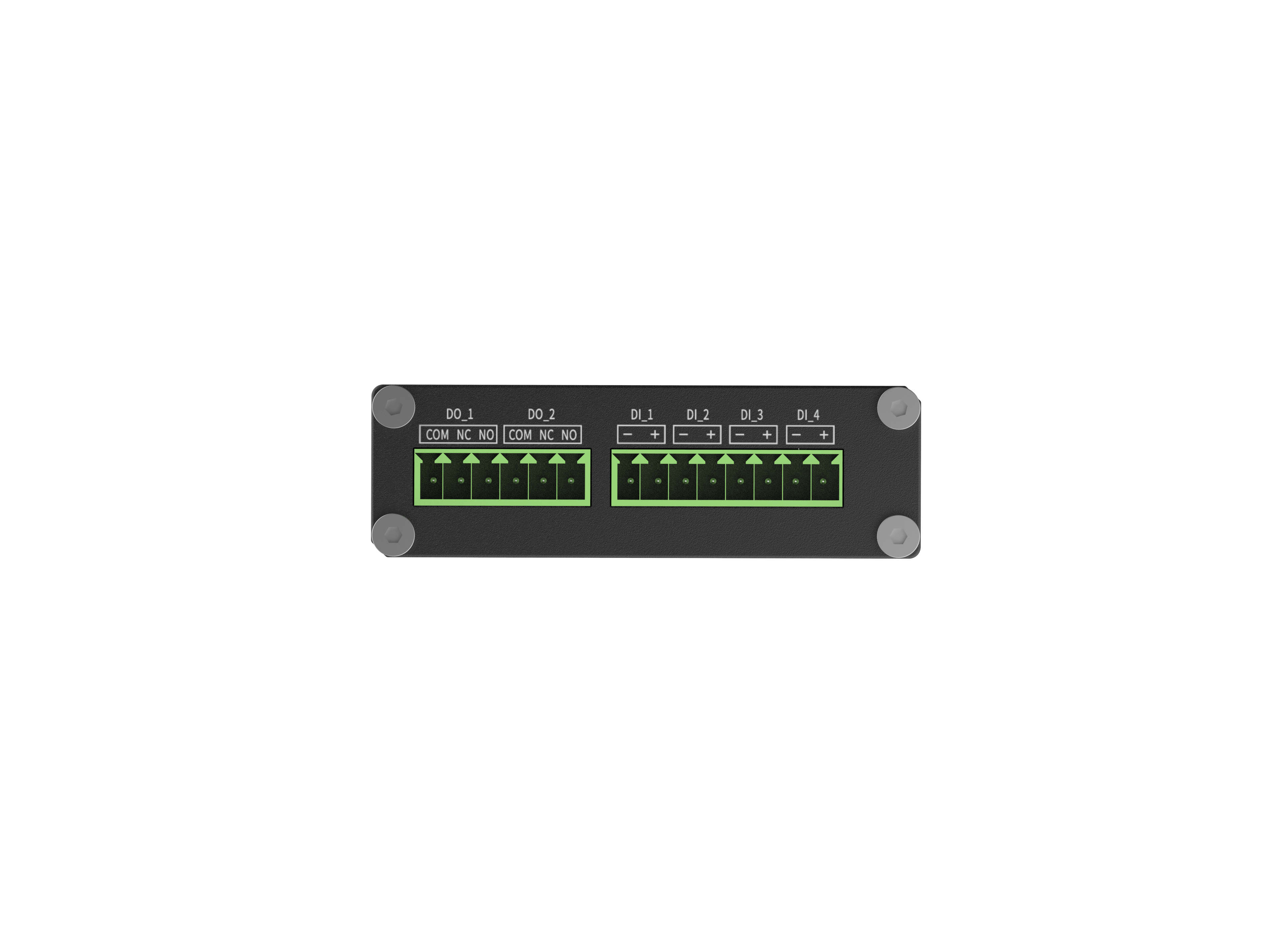

🔌 Rich Industrial Interfaces: Equipped with multiple I/O ports including 4 digital inputs, 2 relay outputs, RS232, RS485, and analog inputs for versatile device integration.
🌡 Precision Temperature Monitoring: Supports dual PT100 RTD inputs to accurately convert resistance signals into data for industrial climate control.
🤖 Autonomous Automation: Utilizes an intelligent IF-THEN command system to execute up to 16 local rules independently, even during network outages.
🏗 Industrial-Grade Durability: Housed in a rugged IP30 metal case with a wide operating temperature range, ideal for smart factories and building automation.
$315.00

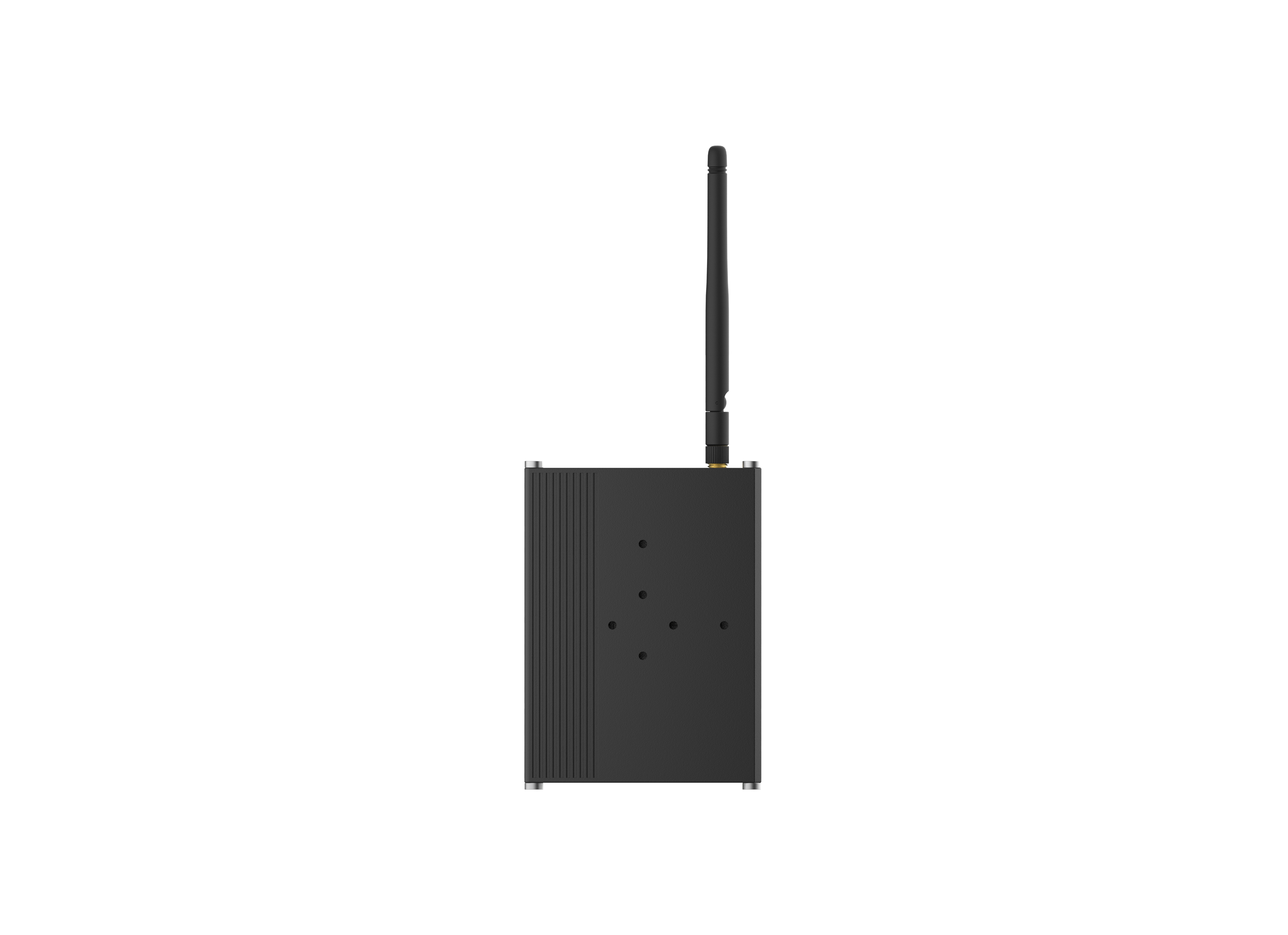

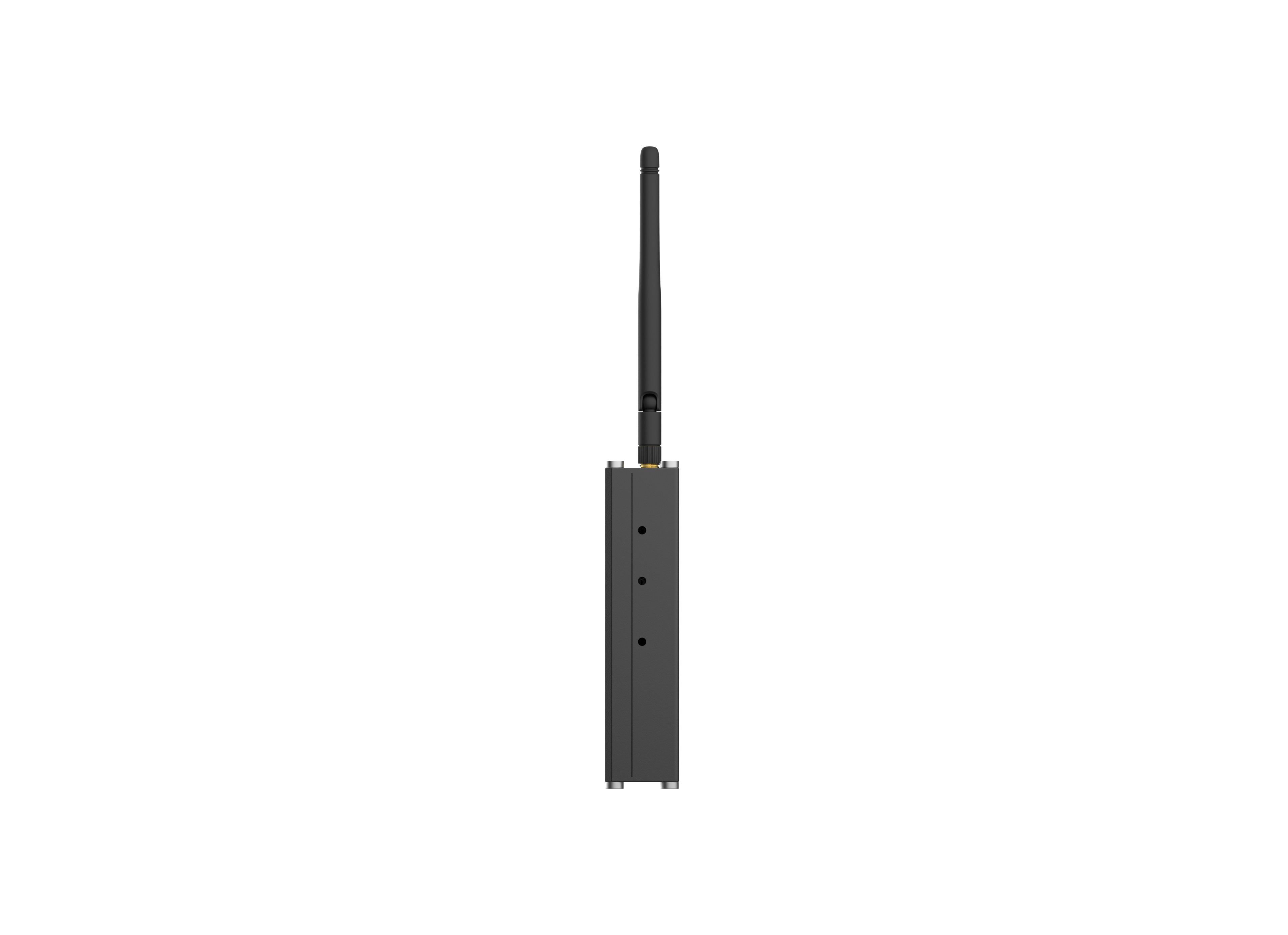

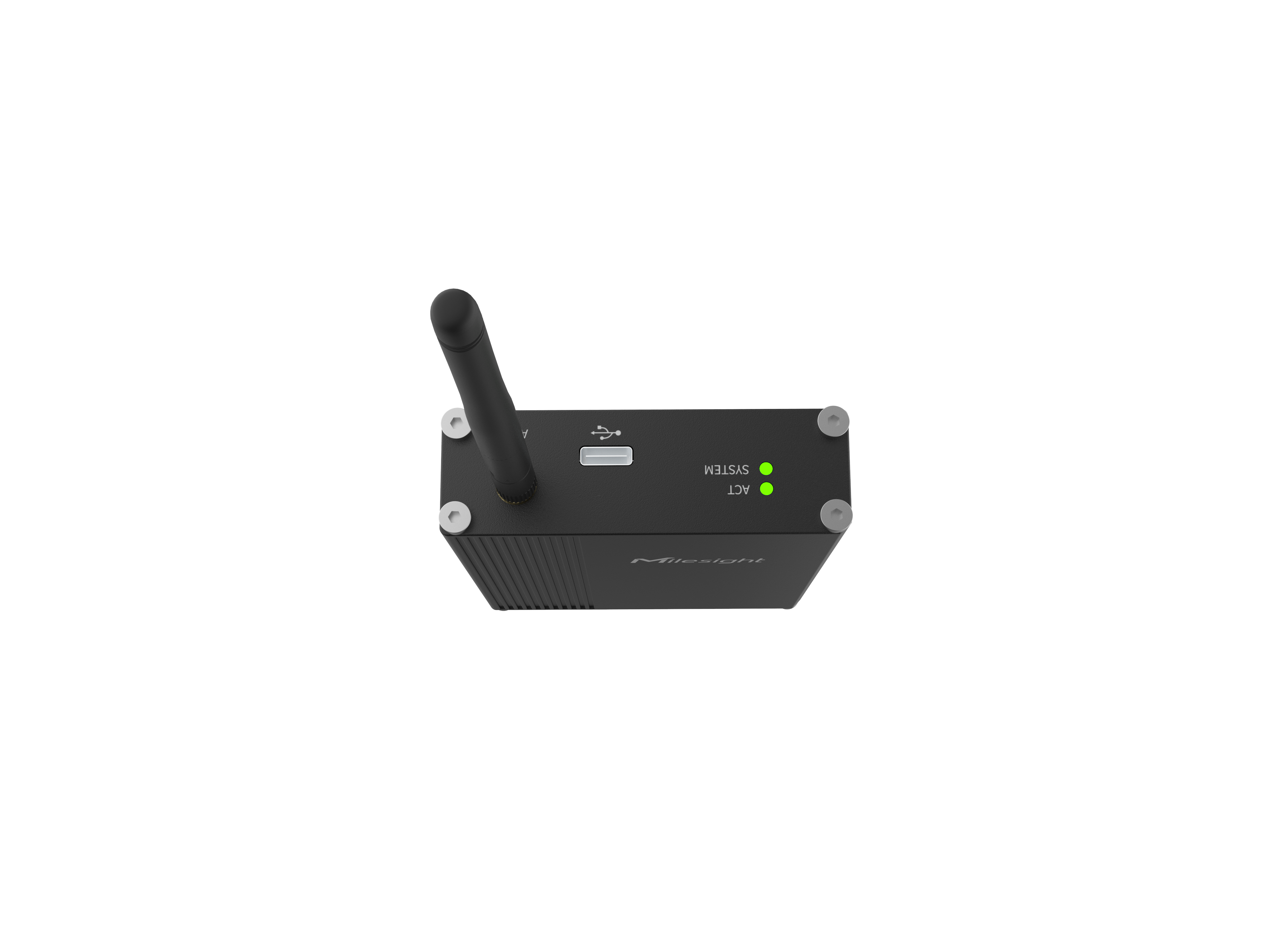

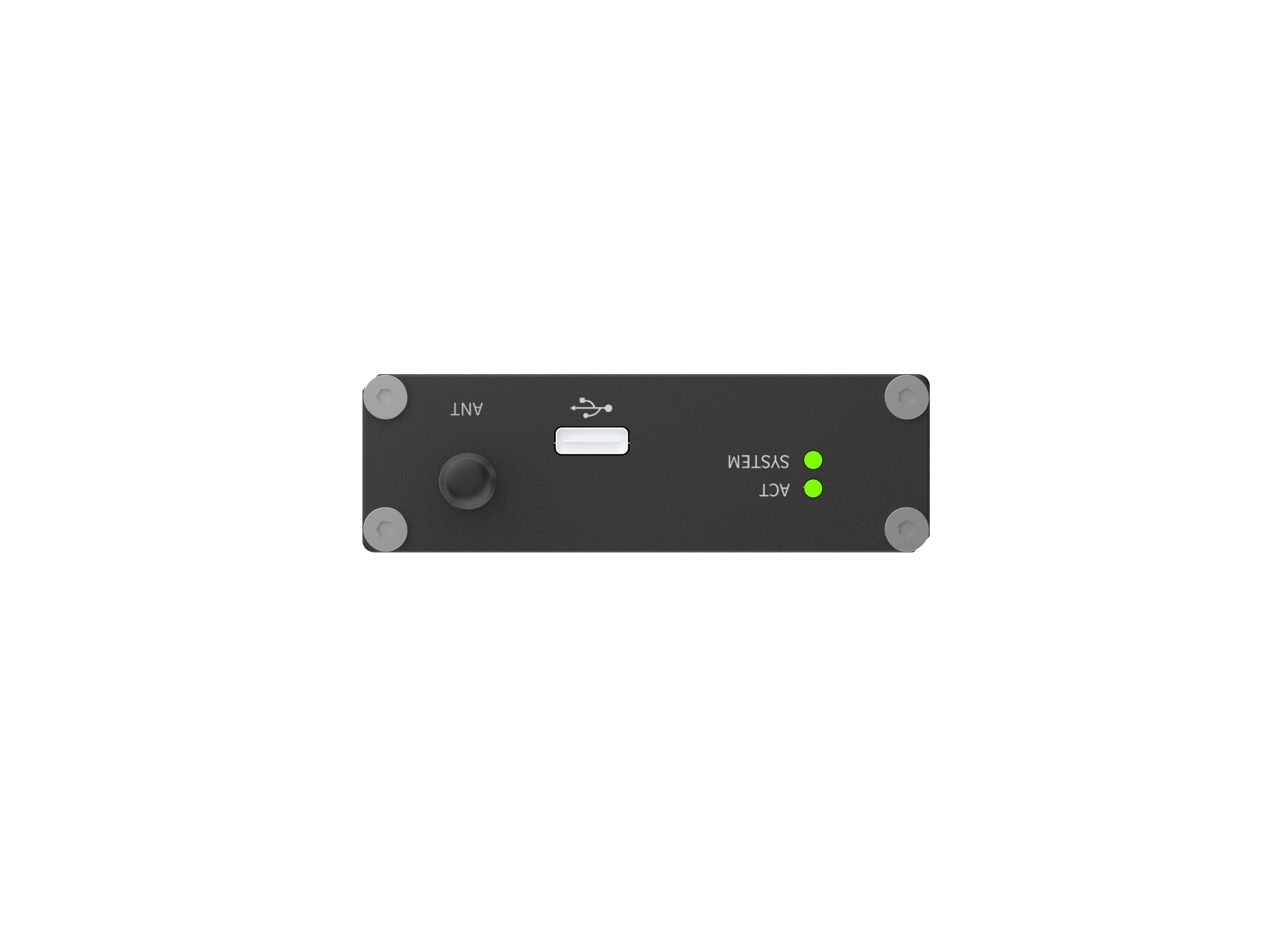

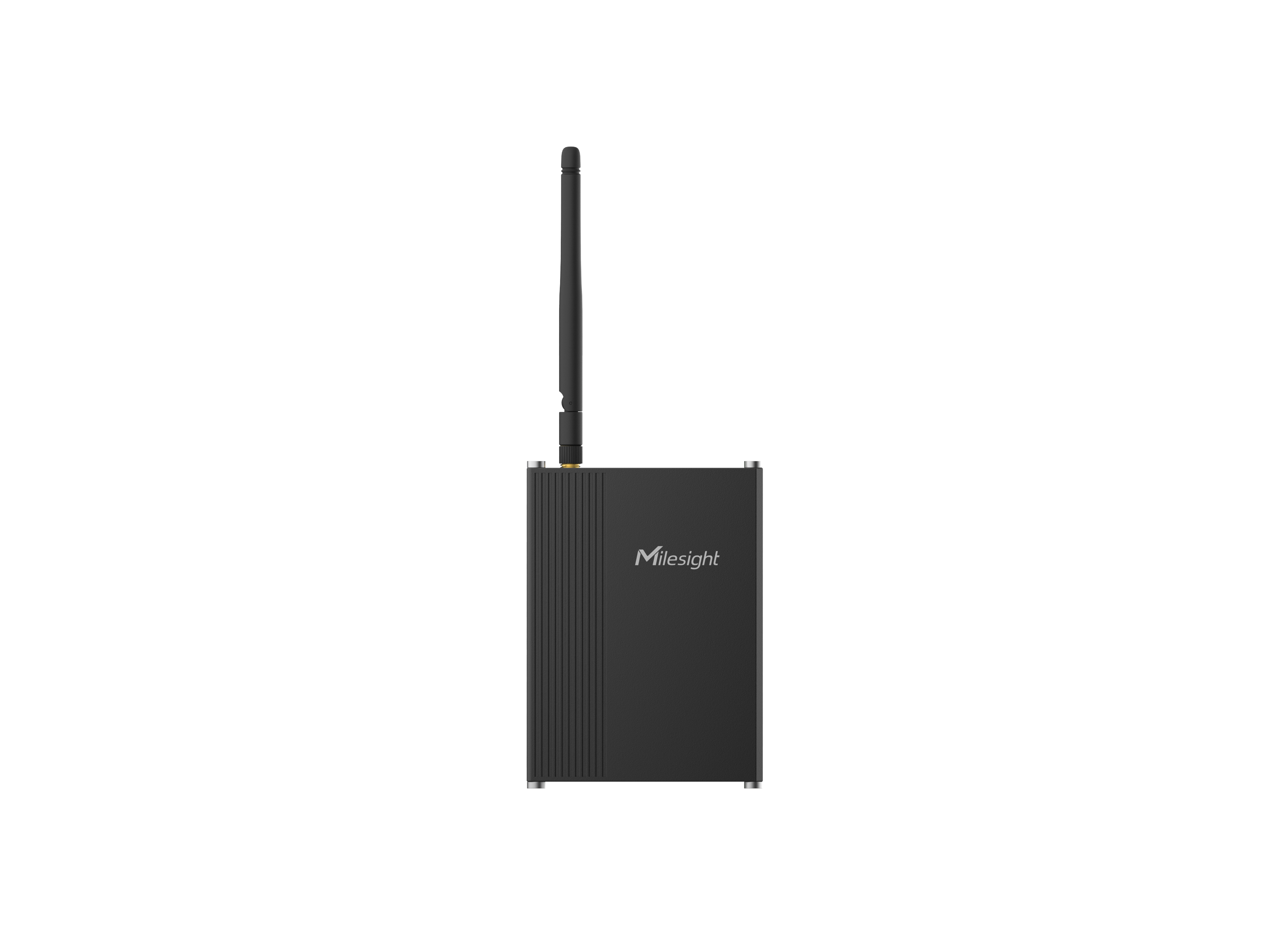

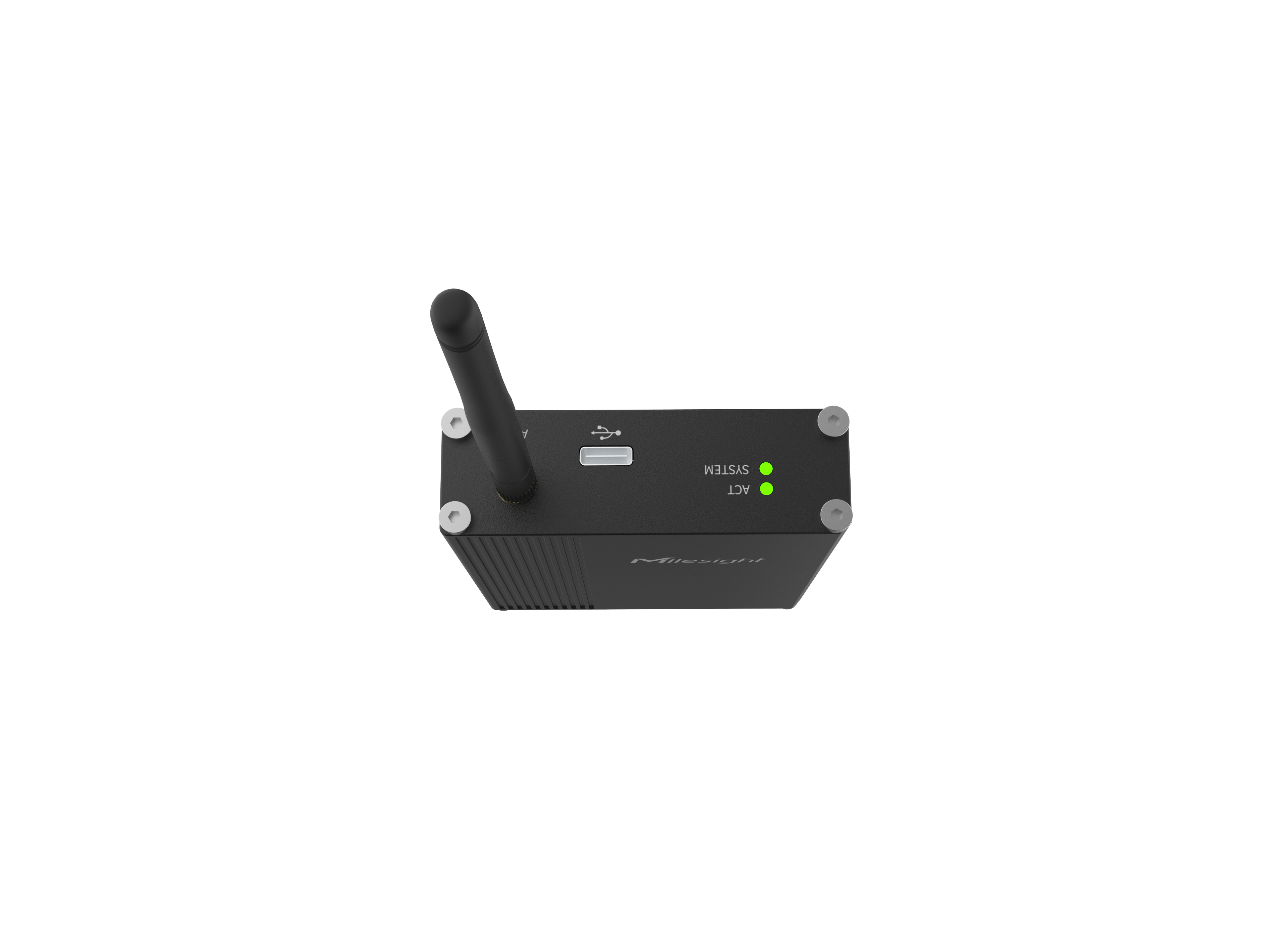

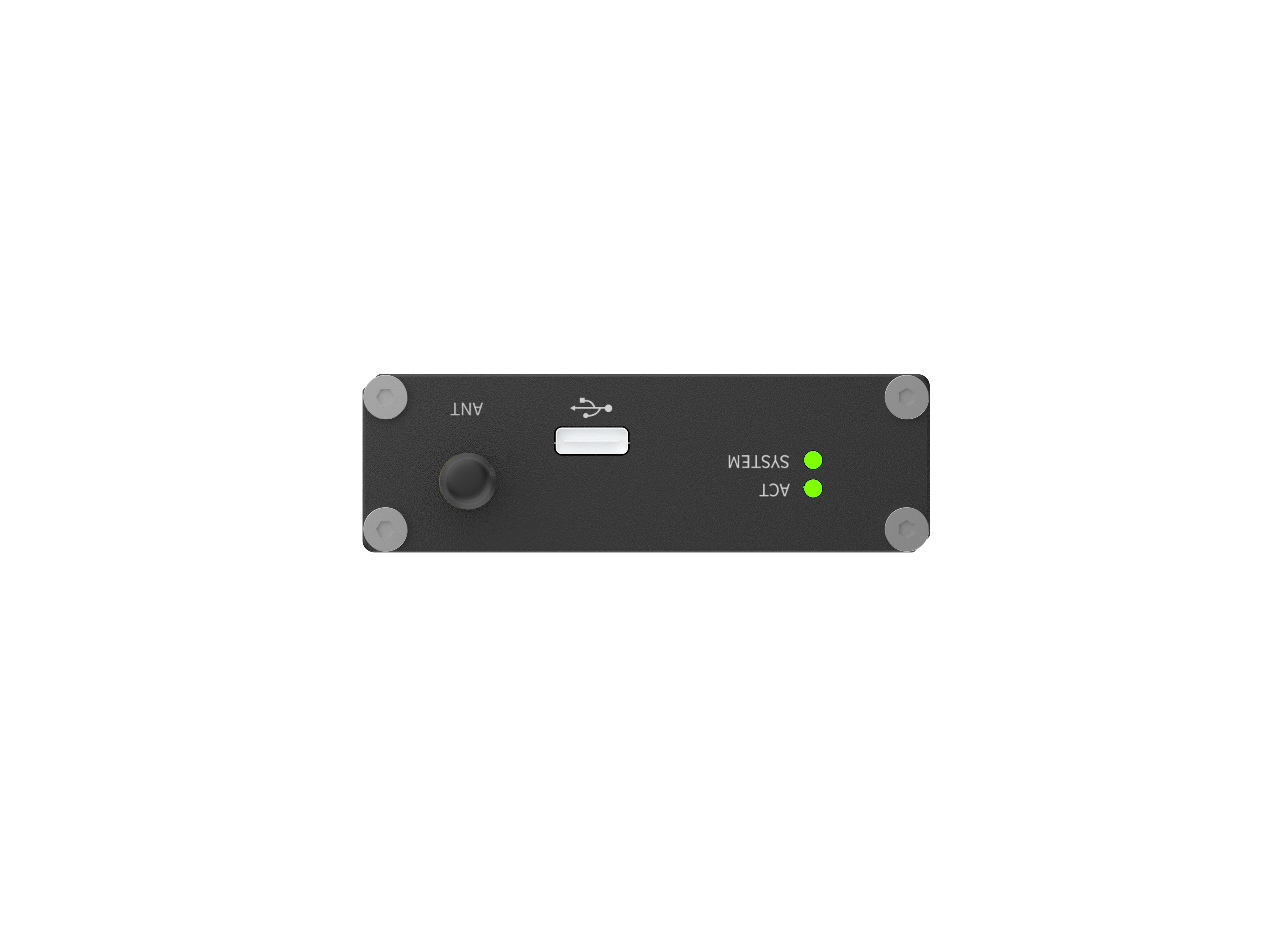

The Milesight UC300-L05EU is a versatile industrial IoT controller designed for remote data acquisition and control via 4G LTE cellular networks. It features a wide range of interfaces, including one RS232 and one RS485 serial port, four digital inputs, two digital outputs, and six analog inputs (supporting 4-20mA, 0-10V, and PT100 RTD sensors). This enables seamless connection with diverse field devices and sensors for applications like smart agriculture and building automation. The UC300 supports autonomous operation with an intelligent IF-THEN trigger system and is easily managed through the Milesight IoT Cloud or mobile app. Housed in a compact, industrial IP30 metal casing, it supports wall or DIN rail mounting and operates reliably in temperatures from -20°C to +60°C.
For more technical information, please see the datasheet.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5.91 × 5.91 × 1.42 in |
| Brand | Milesight |
| Model Number | UC300-L05EU |
| Sensor Form Factor | Controller |
| Application | Agriculture, Condition Monitoring, Industrial, Smart Building, Smart City |
| Technology | 4G LTE, 3G, Cellular, RS485 |
| Sensor Type | Pulse, Current, Dry Contact, Industrial, Temperature, Voltage |
