📶 Cellular connectivity: Provides reliable data transmission via NB-IoT and Cat M1 cellular networks for remote monitoring applications.
🔌 Multi-interface support: Features diverse I/O ports including GPIO, analog inputs, and SDI-12 for connecting various industrial sensors.
🛡 Rugged build: Housed in an IP68-rated enclosure with M12 connectors to ensure stable operation in harsh outdoor environments.
🔋 Long-lasting power: Equipped with three 9000mAh replaceable Li-SoCl2 batteries and supports 5-24V DC external power input.
📲 Effortless configuration: Enables quick wireless setup via NFC and easy device management through the Milesight IoT Cloud platform.
$264.00

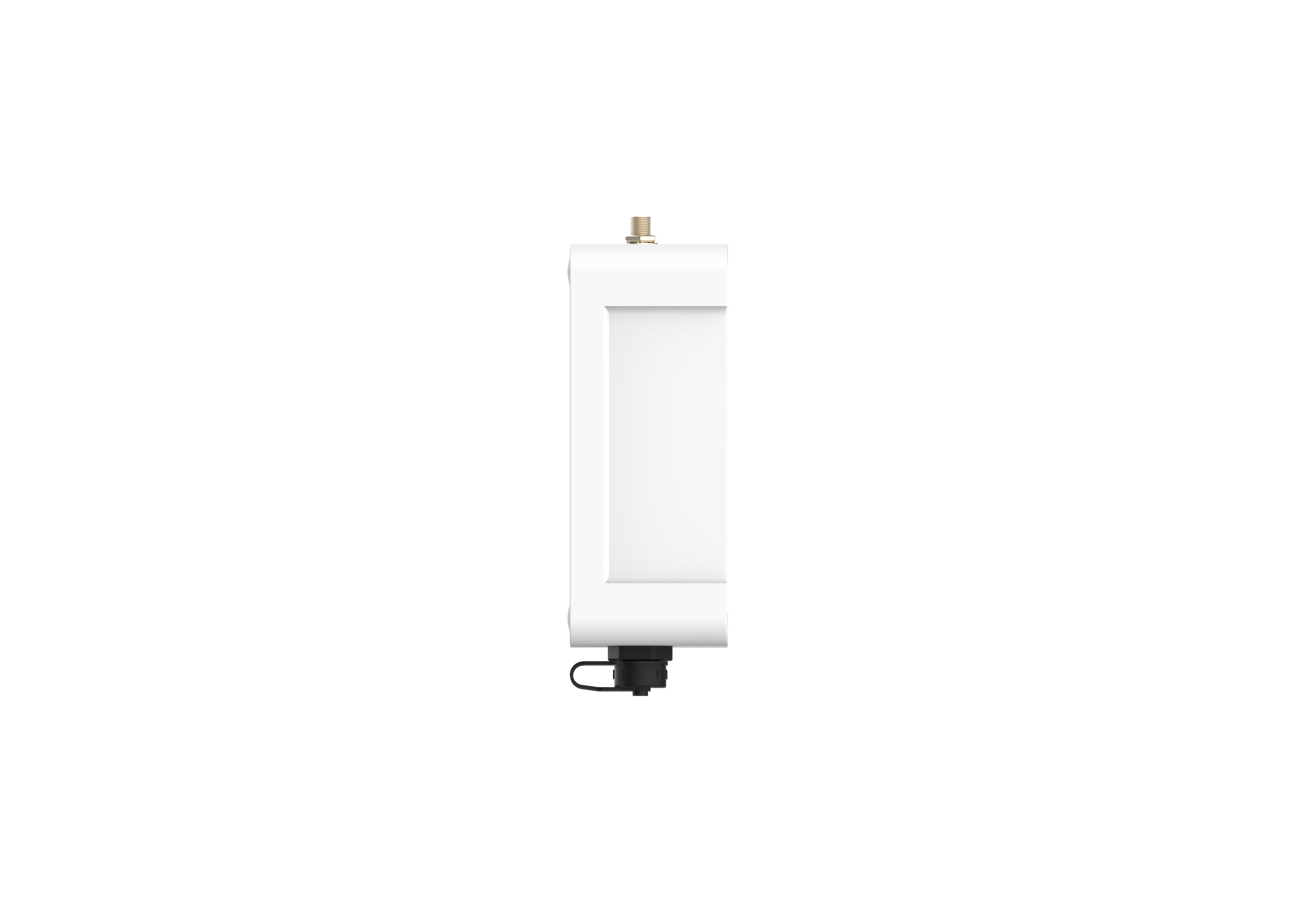

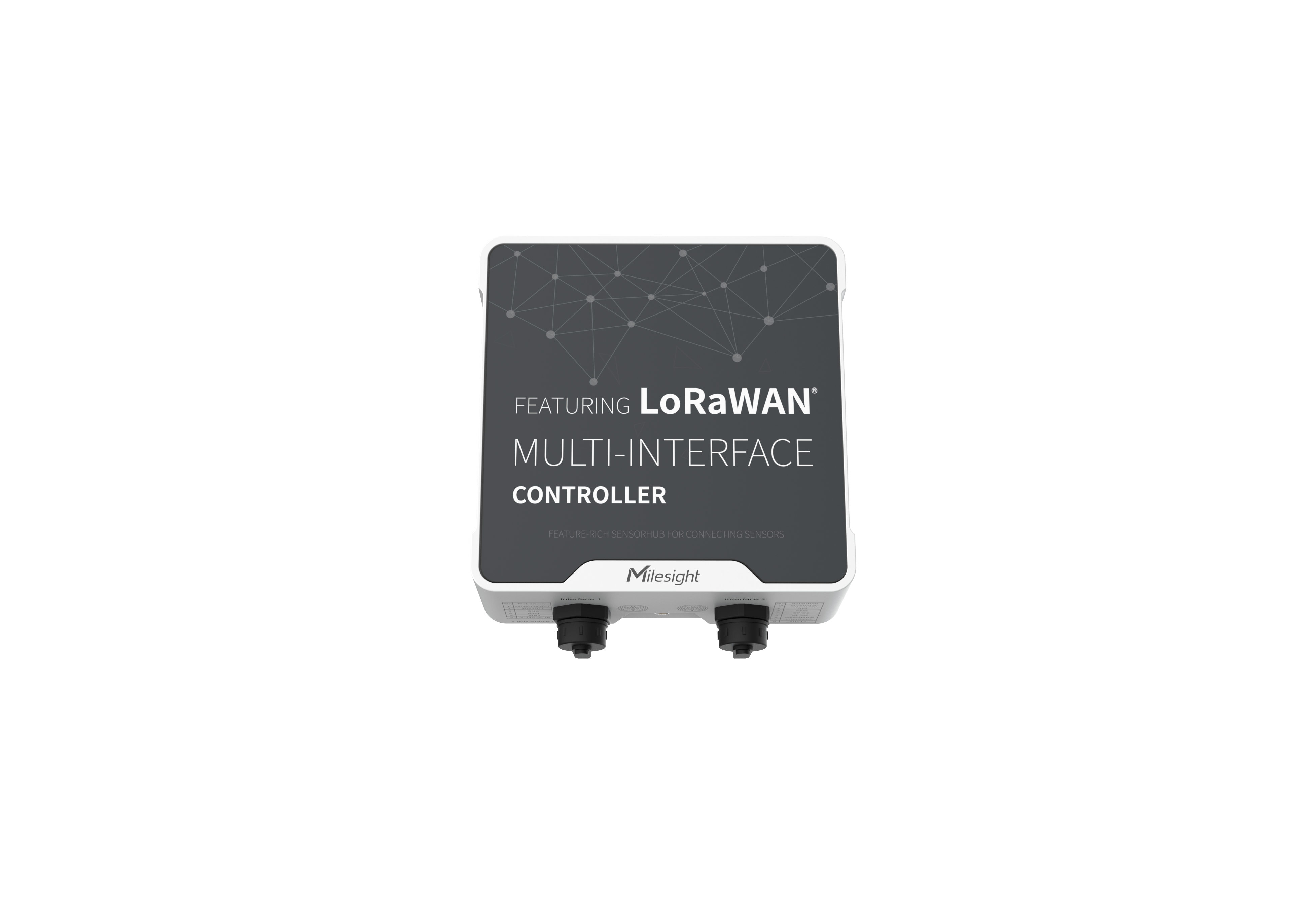

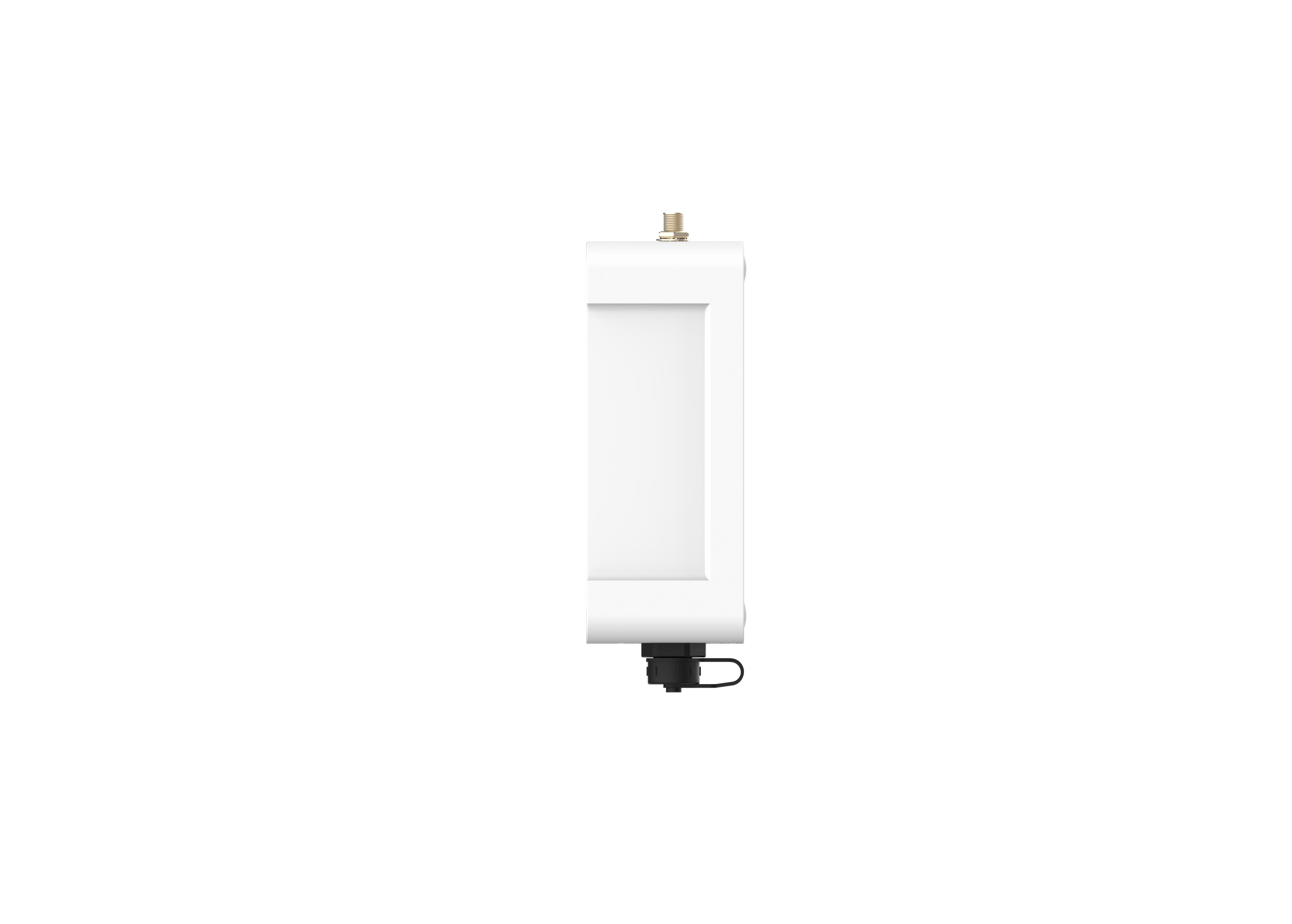

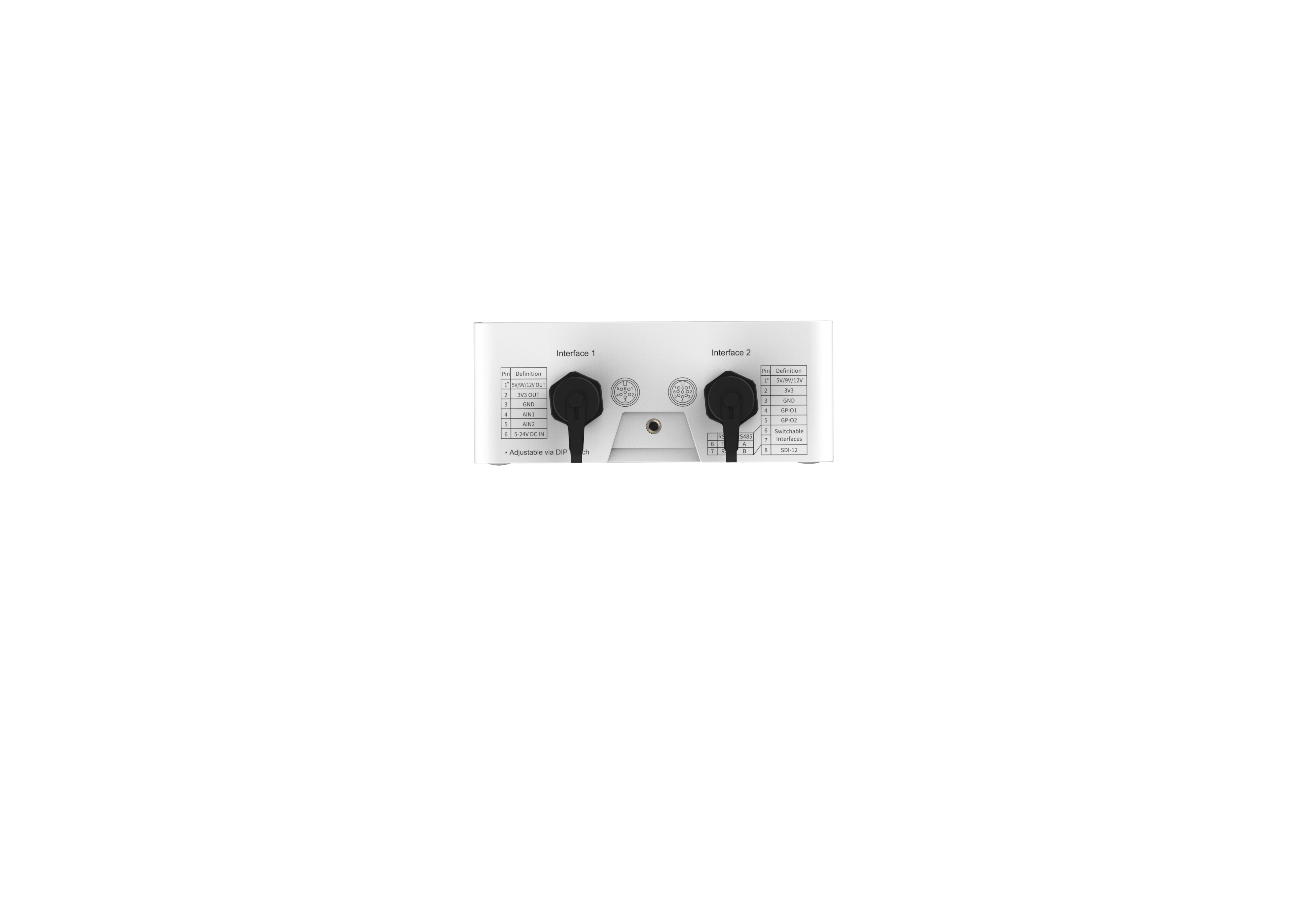

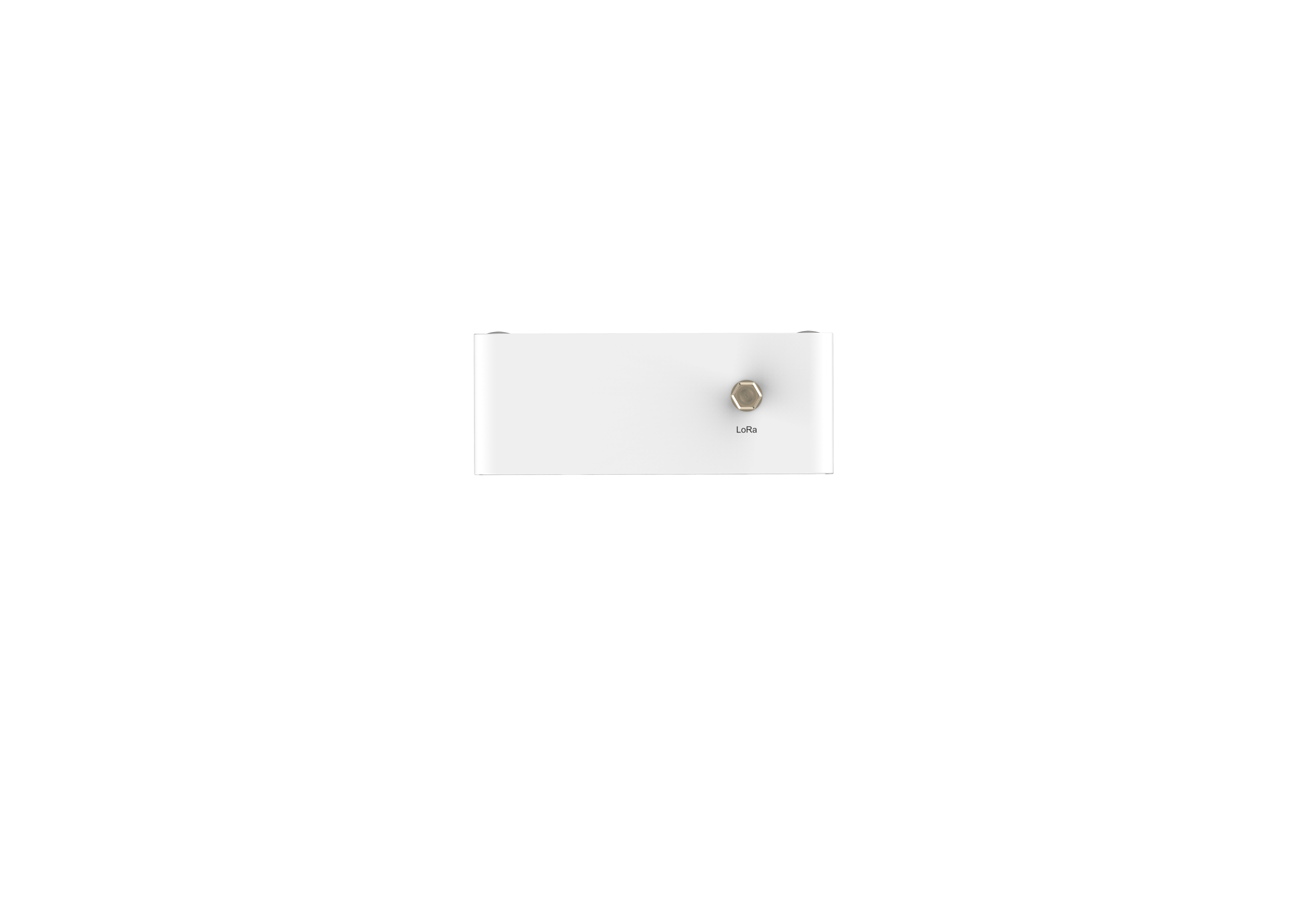

The Milesight UC502-N03GL is a versatile cellular (NB-IoT/Cat.M) controller designed for remote data acquisition from a wide range of industrial and environmental sensors. Featuring multiple I/O interfaces, it includes 2 GPIOs, 1 RS232/RS485 serial port, 2 analog inputs (4-20 mA or 0-10 V), and an SDI-12 port. The device is built for durability in harsh outdoor conditions with an IP67-rated waterproof enclosure and M12 connectors. It offers flexible power solutions, utilizing three 9000 mAh replaceable Li-SOCl2 batteries or an external 5-24 VDC supply, and supports easy configuration via NFC or a wired USB port. With the ability to bridge Modbus data and support multiple network protocols like MQTT, TCP, and UDP, the UC502-N03GL is an ideal solution for smart agriculture, environmental monitoring, and industrial asset management.
For more technical information, please see the datasheet.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 5.91 × 5.91 × 1.42 in |
| Brand | Milesight |
| Model Number | UC502-N03GL |
| Sensor Form Factor | Controller |
| Application | Agriculture, Asset Tracking, Condition Monitoring, Energy Monitoring, Healthcare, HVAC Monitoring, Industrial, Smart Building, Smart City, Smart Grid, Water Quality |
| Technology | LTE-M, LPWAN, NB-IoT |
| Sensor Type | Pulse, Current, Industrial, Voltage |
