Codepoint CS1000 Long Range Door or Window Open/Close Sensor with Temperature | LoRaWAN

Description

The CS1000 is a long-range, low-power door and window sensor supporting LoRaWAN or Coralink wireless protocols. The device provides configurable real-time alarms or regular reported statistics.

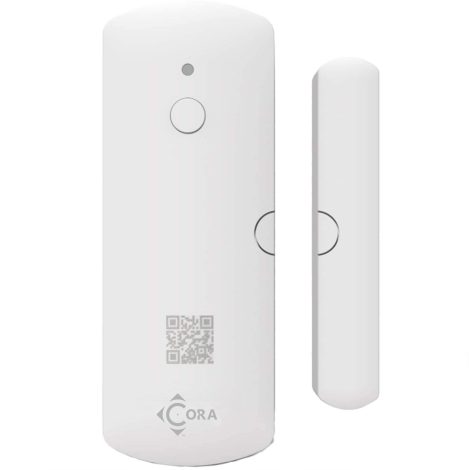

The device can be attached to doors, windows, or drawers and other equipment. The base unit detects the presence of a strong magnetic field (provided by the included magnet). Small and low profile, the device can be used for a wide variety of applications where magnetic triggered events or counting are required.

The CS1000 is powered by a two AAA batteries providing 2+ years of operation in normal conditions. Batteries can be replaced easily.

The device can be configured to provide open/closed/reminder notifications and/or provide regular reports regarding event counts, and event total and average durations. The CS1000 has temperature monitoring/notifications functions and battery charge remaining notifications.

Features

• Monitors and reports the open and closed events for windows and doors
• Configurable reminders when door remains opened or closed for too long
• Supports pairing with other Cora devices (Coralink protocol only)
• Low-power technology offers 2+ years of battery life
• Secure and simple “scan and play” device management
• Long Range: typical 300 to 500 meters
• Supports Cora Wireless Cloud Stack
• Multi-frequency, multiple LoRa regions including US (915 MHz), EU (868 MHz), CN (470 MHz), and other frequencies available
• Samples available now

Specifications

• LoRa protocols: Coralink Class A, LoRaWAN Class A
• Color: White
• Magnet trigger distance: 8 mm–25 mm (0.3 in.–1 in.)
• Dimensions:
  • Door sensor: 83.06 mm × 30.99 mm × 14.99 mm (3.27 in. × 1.22 in. × 0.59 in.)
  • Magnet: 62.99 mm × 11.18 mm × 11.94 mm (2.48 in. × 0.44 in. × 0.47 in.)
• Multi-color status LED (front)
• Set button (front)
• Power: 2 AAA batteries (3V DC)
• Environmental:
  • Operating temperature range: 0 °C to 50 °C (32 °F to 122 °F)
  • Operating humidity range:<95% non-condensing
• Intended for indoor use only

Applications

• Smart buildings and home automation: Monitor door and window status
• Security/intrusion detection applications may include activating a siren alarm and/or receiving an alert notification
• Metering and logistics
• Monitor mailbox and cabinet status: Discrete installations on cabinets consider mount the device on the inside of the cabinet
• Use door sensors to turn on the lights in a closet or room automatically
