V0 flame-retardant grade—Sense spontaneous combustion in trash bins in time with almost no blind spot
☔ IP67 rated
📏 2–350 cm detection range
$174.00

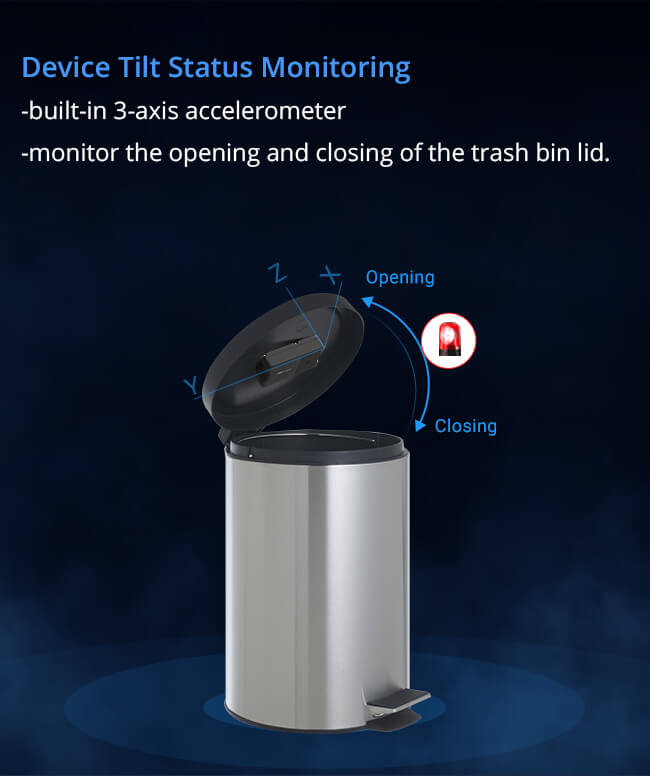

EM400-TLD is a LoRaWAN® distance sensor based on ToF (time-of-flight), mainly used for detecting the fill level and position status. With an appropriate FOV with 27° maximum field angle, it has almost no blind spot when installed on small-sized waste bins or containers. The embedded temperature sensor enables it to monitor whether the containers are burning for security reasons. With IP67 waterproof rating and internal damp-proof coating, it is suitable for outdoor applications. EM400-TLD has a three-axis accelerometer to detect the status of the container lid. Compatible with the Milesight LoRaWAN® gateway and IoT Cloud solution, users can know the container status and fill-level in real time, allowing effective and remote management.
| Weight | 1 lbs |
|---|---|
| Dimensions | 4.65 × 2.56 × 1.18 in |
| Brand | Milesight |
| Model Number | EM400-TLD-915M |
| Dimensions | 118 mm × 65 mm × 30 mm (4.65 in. × 2.56 in. × 1.18 in.) |
| Temperature | –30 °C to 70 °C (–22 °F to 158 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Distance, Level |

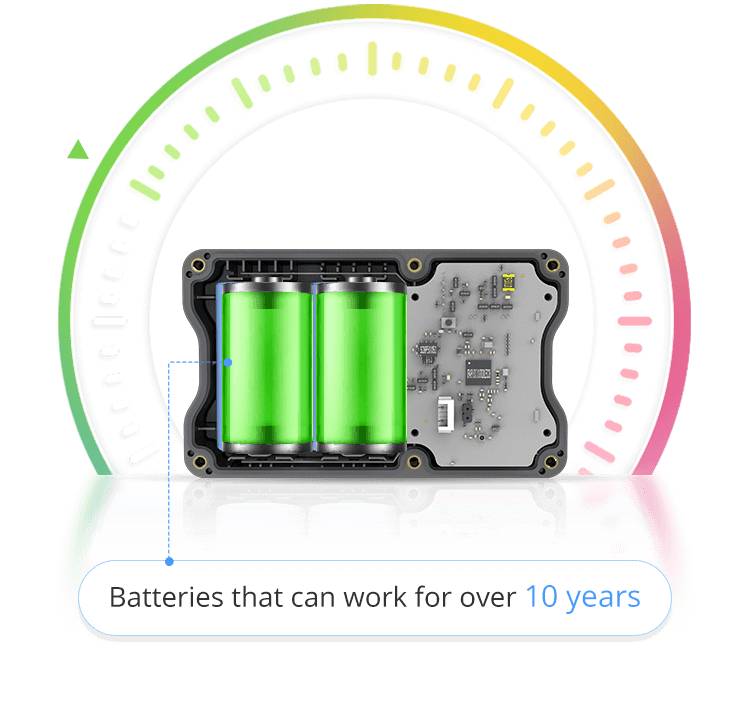

| Power | 9000 mAh ER26500 Li/SOCl₂ Battery (×2) |
| Battery Life | ~10 Years (>10 Years @ 10-Min Intervals in Standard Mode, >10 Years @ 20-Min Intervals in Bin Mode) |
| Warranty | 2 Years |
