Easy people-counting data acquisition from LoRaWAN® or Ethernet port (CGI)
Obtain depth map without image capturing—Free from privacy concerns

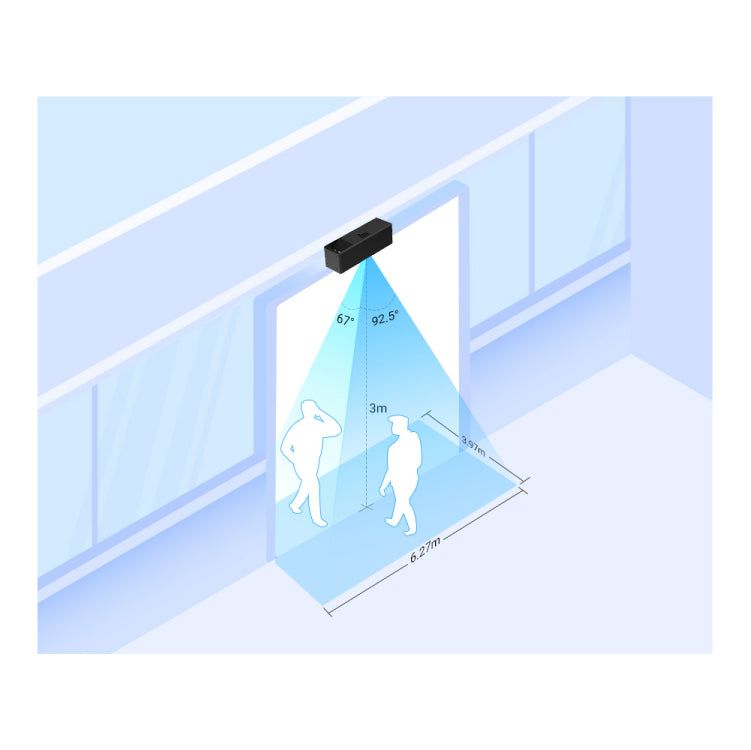

📏 0.5–3 m detection range
📷 92.5° horizontal, 67° vertical FoV
$1,026.00

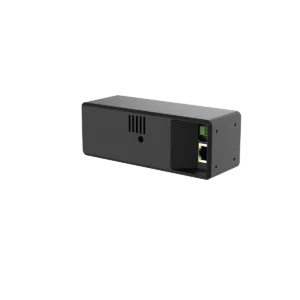

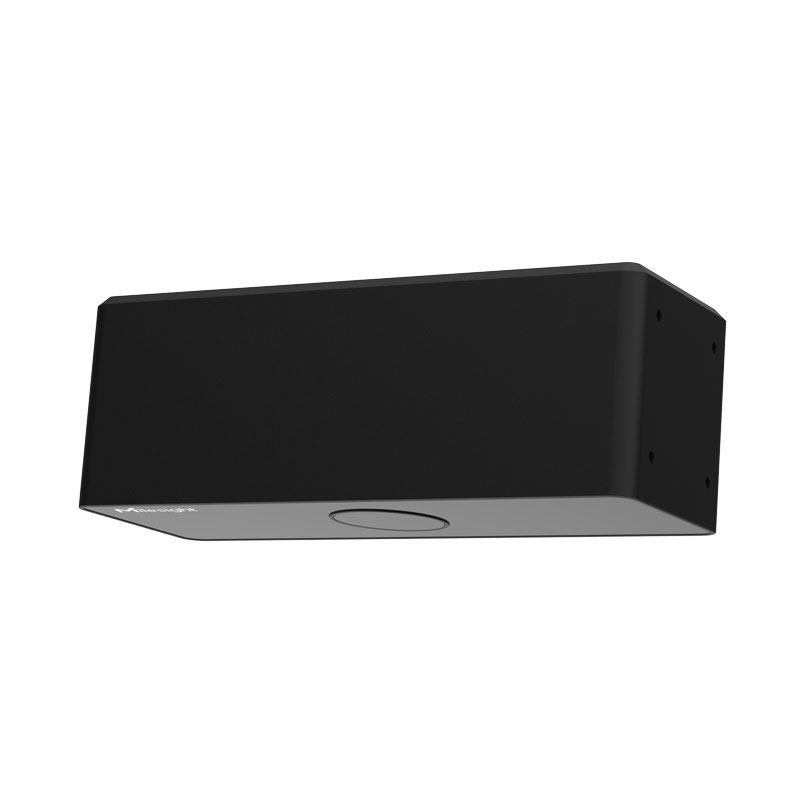

VS132 is a LoRaWAN® 3D ToF people-counting sensor designed to count the number of people entering and exiting. With the most advanced Time-of-Flight technology, VS132 obtains depth maps instead of images to protect privacy and provide a high level of accuracy of up to 99.5%. Cooperating with the Milesight LoRaWAN® gateway and the Milesight IoTCloud solution, it allows users to monitor the flow of people and trigger linkage to control other devices via browser or mobile app remotely.
With easy installation, VS132 has great use in entrances or corridors of retail stores, malls, offices, subways, etc.
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 5.51 × 1.97 × 1.97 in |
| Temperature | Operating: –10 °C to 60 °C (14 °F to 140 °F); Storing: –20 °C to 60 °C (–4 °F to 140 °F) |
| Brand | Milesight |
| Model Number | VS132-915M |
| Dimensions | 140 mm × 50 mm × 50 mm (5.51 in. × 5.51 in. × 1.97 in.) |
| Sensor Form Factor | Sensor |
| Application | People Counting |
| Technology | LoRaWAN |
| Sensor Type | Occupancy |
| Power | 12 V DC, POE |
| Warranty | 2 Years |
