2G/3G/4G cellular with 10/100 Mbps Ethernet with PoE, GPS, and Wi-Fi support

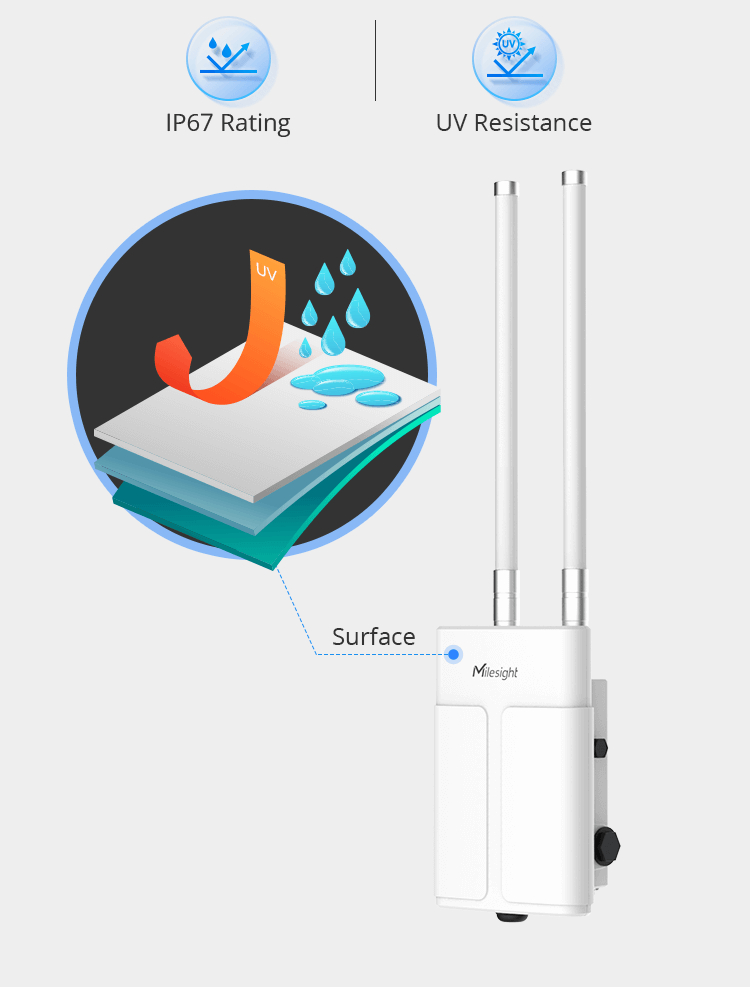

☔ IP67 rated
$1,275.00
UG67 is a robust 8-channel outdoor LoRaWAN® gateway. Adopting an SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connections with more than 2000 nodes. UG67 has a line of sight of up to 15 km and an IP67 waterproof case—ideally suited to smart agriculture, smart metering, and many other outdoor applications.
UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi, and cellular but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 9.45 × 6.46 × 3.58 in |
| Temperature | Operating: –40 °C to 70 °C (–40 °F to 158 °F); Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Brand | Milesight |
| Model Number | UG67-L04AF-915M |
| Dimensions | 240 mm × 164 mm × 90.9 mm (9.45 in. × 6.46 in. × 3.58 in.) |
| Sensor Form Factor | Gateway |
| Application | Networking |
| Technology | Cellular, LoRaWAN |
| Power | PoE |
| Warranty | 3 Years |
