$79.99

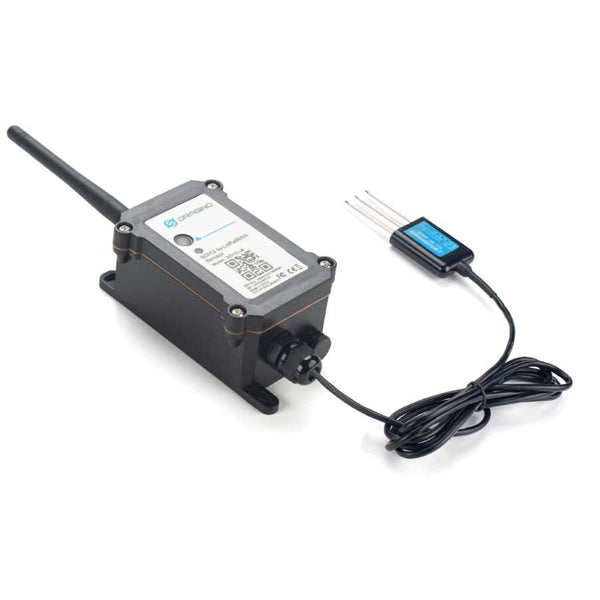

The Dragino SDI-12-LB is an SDI-12 to LoRaWAN Converter designed for Smart Agriculture solutions. SDI-12-LB uses an SDI-12 interface with a 12 V output to power the external SDI-12 sensor. After obtaining the data via SDI-12, it sends the information over LoRaWAN at extremely long ranges at low data rates, allowing ultra-long-range spread spectrum communication and high interference immunity while minimizing current consumption. SDI-12-LB is powered by an 8500 mAh Li-SOCl₂ battery, designed for longterm use of up to 5 years. Each SDI-12-LB comes preloaded with a set of unique keys for LoRaWAN registrations, and registering these keys to a local LoRaWAN server will cause it to automatically connect after powering on.
| Weight | 1 lbs |
|---|---|
| Dimensions | 7.68 × 4.92 × 2.17 in |
| Brand | Dragino |
| Model Number | SDI-12-LB |
| Dimensions | 195 mm × 125 mm × 55 mm (7.68 in. × 4.92 in. × 2.17 in.) |
| Temperature | –40 °C to 80 °C (–40 °F to 176 °F) |
| Sensor Form Factor | Converter |
| Application | Agriculture |
| Technology | LoRaWAN |
| Power | 8500 mAh Li/SOCl₂ Battery |
| Battery Life | 5 Years |
| Warranty | 2 Years |
