RS485 interface to connect to the main weather station main processor WSC1-L
$329.99

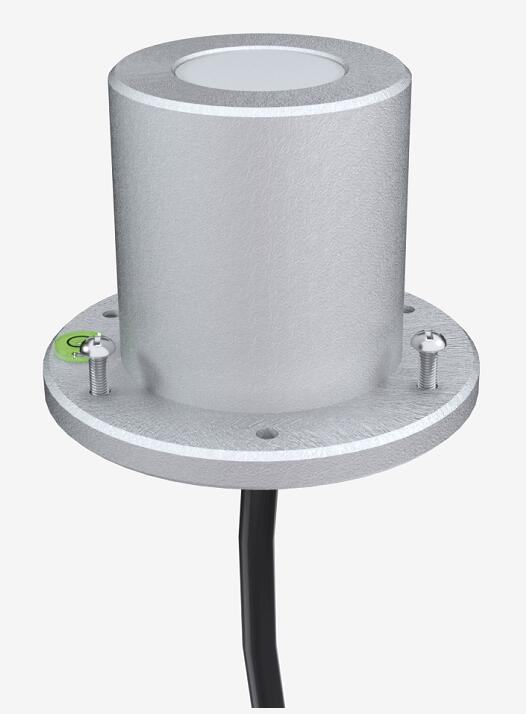

The Dragino WSS-06 is an RS485 weather monitoring instrument that can measure the total solar radiation from 300 to 3000 nm. If the sensor is pointed down, the shading ring can be used the measure scattered radiation instead. The WSS-06 has a high-precision photo-sensitive element as its core, while a radiation cover outside the sensing element limits environmental factors from affecting performance. Users can connect the WSS-06 RS485 interface to the weather station main processor WSC1-L, which can auto-detect and upload the collected data into the LoRaWAN server.
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 5.91 × 4.33 × 2.36 in |
| Brand | Dragino |
| Model Number | WSS-06 |
| Dimensions | 150 mm × 110 mm × 60 mm (5.91 in. × 4.33 in. × 2.36 in.) |
| Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | RS485 |
| Sensor Type | Solar Radiation |
| Power | 5 to 24 V DC |
| Warranty | 2 Years |
