☔ IP65 waterproof
$79.99

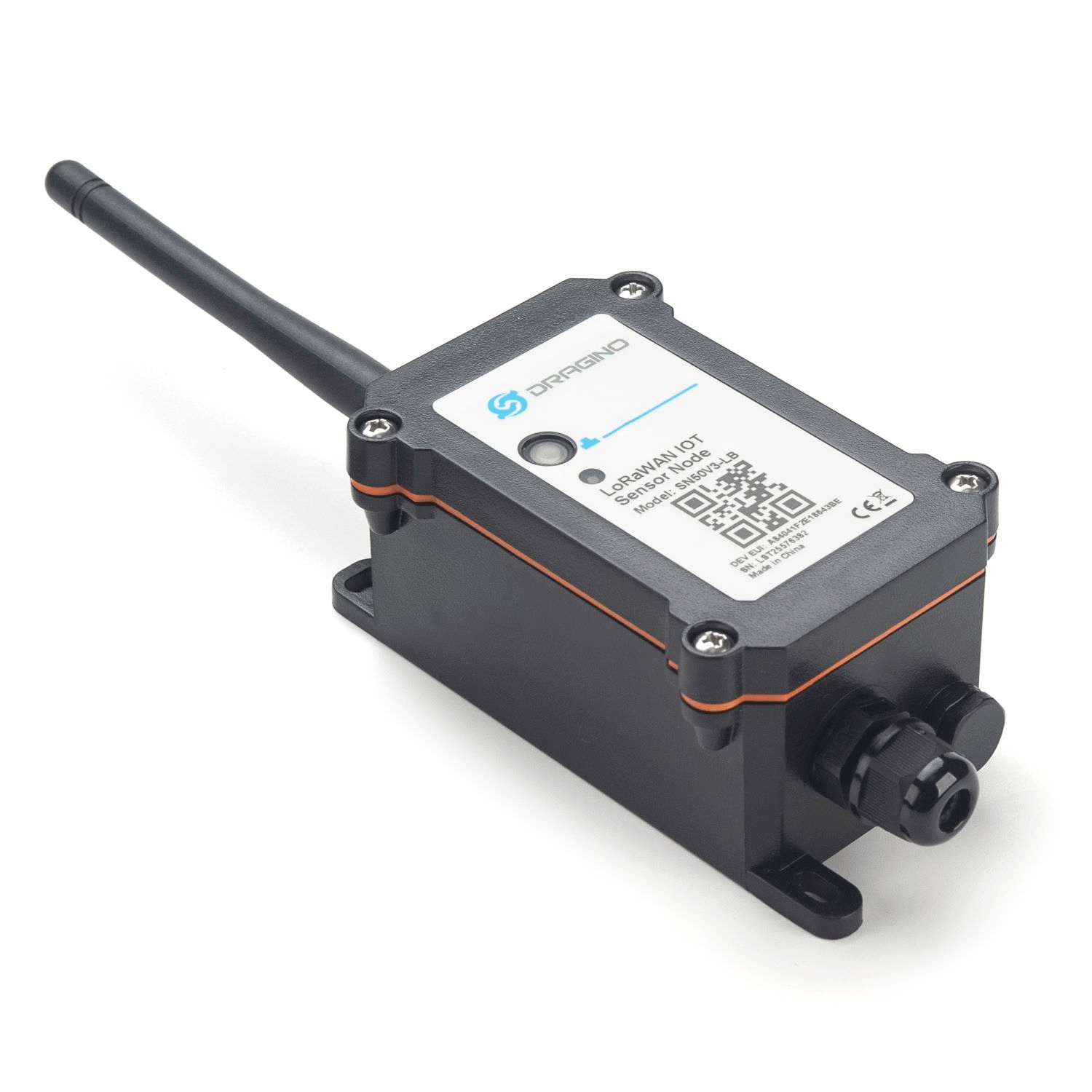

The Dragino SN50v3-LB is a long-range LoRaWAN sensor node designed for outdoor use, powered by a 4000 mAh or 8500 mAh Li/SOCl₂ battery for long-term use. It is designed to facilitate developers to rapidly deploy industrial-level LoRaWAN and IoT solutions. It is easy to program, allowing users to create and connect their things everywhere.
SN50v3-LB wireless part is based on the LoRa transceiver SX1262, which allows the user to send data and reach extremely long ranges at low data rates. It provides ultra-long range spread spectrum communication and high interference immunity while minimizing current consumption.
SN50v3-LB has a high-performance ARM microcontroller operating at a 32 MHz frequency, with 256 Kbytes of Flash program memory and an extensive range of enhanced I/Os and peripherals. SN50v3-LB also has a built-in BLE module that supports OTA upgrades.
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5.71 × 3.15 × 1.97 in |
| Brand | Dragino |
| Model Number | SN50v3-LB |
| Dimensions | 145 mm × 80 mm × 50 mm (5.71 in. × 3.15 in. × 1.97 in.) |
| Temperature | –40 °C to 85 °C (–40 °F to 185 °F) |
| Sensor Form Factor | Node |
| Application | Networking |
| Technology | LoRaWAN |
| Sensor Type | Industrial |
| Power | 2.5 to 3.6 V |
| Warranty | 2 Years |
