No cellular capabilities | Includes wall-mounting kit
🔹 IP65 rated
🔹 Quad-core industrial processor with large memory
🔹 Eight half-duplex channels
🔹 Rugged metal enclosure for industrial applications
🔹 Desktop or wall mounting
🔹 Multi-backhaul connectivity backups with Ethernet and Wi-Fi
🔹 DeviceHub and Milesight IoT Cloud provide easy and centralized management of remote devices
🔹 Security communication with multiple VPNs like IPsec, OpenVPN, L2TP, PPTP, DMVPN, etc.
🔹 Compatible with mainstream network servers like TTN, ChirpStack, Actility, etc.
🔹 Detect and analyze the noise level and provide intuitive diagram for deployment
🔹 Built-in network server and MQTT/HTTP/HTTP API for easily integration

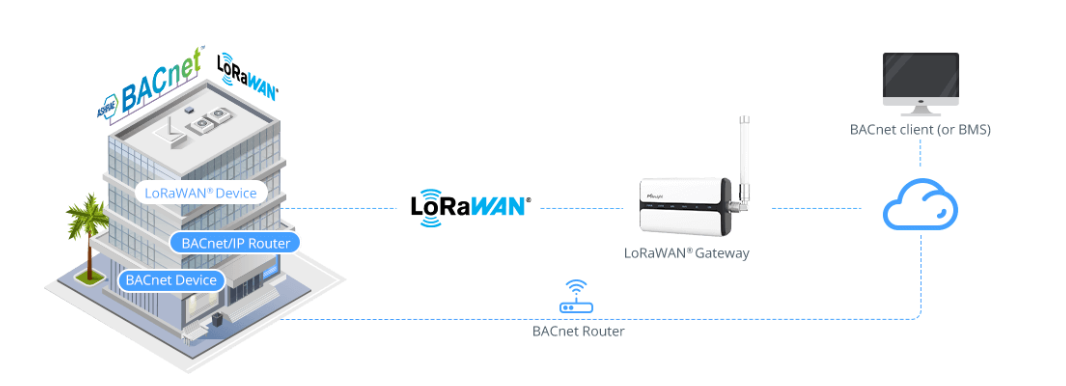

🔹 BACnet/IP to integrate LoRaWAN data to BMS system easily
🔹 Python SDK for users secondary development
🔹 Fast and user-friendly programming with Node-RED development tool
$555.00
UG65 is a robust 8-channel indoor LoRaWAN® gateway. Adopting an SX1302 chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has a line of sight of up to 15 km and can cover about 2 km in an urbanized environment—ideally suited to smart buildings, smart industries, and many other indoor applications.

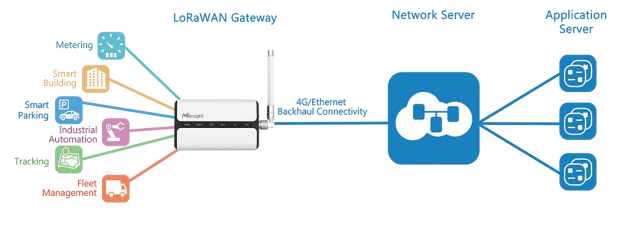

UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi, and cellular but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 7.09 × 4.33 × 2.22 in |
| Temperature | Operating: –20 °C to 60 °C (–4 °F to 140 °F); Storing: –40 °C to 85 °C (–40 °F to 185 °F) |
| Brand | Milesight |
| Model Number | UG65-915M-EA |

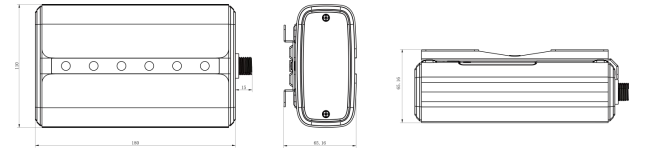

| Dimensions | 180 mm × 110 mm × 56.5 mm (7.09 in. × 4.33 in. × 2.22 in.) |
| Sensor Form Factor | Gateway |
| Application | Networking |
| Technology | Cellular, LoRaWAN |
| Power | 9 V to 24 V DC, PoE |
| Warranty | 3 Years |
