2.9-inch black and white E Ink screen, 128—296 pixels
🔹 Programmable E Ink screen for flexible display
🔹 Set up to six scenes—each scene can consist of multiple devices
🔹 NFC for one-touch configuration, supporting card-emulation mode
🔹 Milesight D2D protocol to enable ultra-low latency and directly control without gateway
🔹 Compatible with standard LoRaWAN® gateways and network servers
🔹 Compliant with Milesight IoT Cloud
🔹 Easy and multi-installation
$135.00

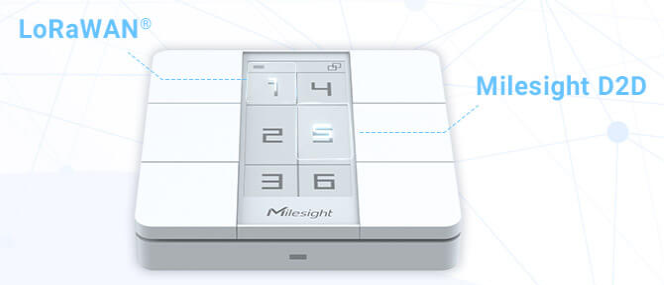

WS156 LoRaWAN® Smart Scene Panel gives a multi-button control panel that can activate different predefined scenes with one press. Without any additional cables, WS156 can be installed anywhere easily and used to control devices via LoRaWAN® or Milesight D2D communication protocol. It’s equipped with a user-defined E Ink screen to suit different scenes. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, WS156 can be linked to control other Milesight devices without any development. WS156 can be used for wireless control in smart offices, smart homes, hotel multi-scene controls, and more.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 3.39 × 3.39 × 0.55 in |
| Brand | Milesight |
| Model Number | WS156-915M |
| Dimensions | 86 mm × 86 mm × 14 mm (3.39 in. × 3.39 in. × 0.55 in.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Sensor Form Factor | Controller |
| Application | Smart Building |
| Technology | LoRaWAN |
| Sensor Type | Button |
| Power | 590 mAh Lithium Coin Cell Battery (×2) |
| Battery Life | 3 Years |
| Warranty | 2 Years |
