📷 190° horizontal, 112° vertical FoV PIR
💡 1–60000 lux light sensor
🔹 Occupancy or motion detection based on passive infrared and Fresnel lens
🔹 Easy to install with the convenient size
🔹 Built-in light sensor—combine PIR sensor to achieve triggers
🔹 Ultra-wide-distance wireless transmission up to line of sight of 15 km
🔹 NFC for one-touch configuration, supporting card-emulation mode
🔹 Milesight LoRa D2D protocol to enable ultra-low latency and directly control without gateway
🔹 Functions well with standard LoRaWAN® gateways and network servers
🔹 Compliant with Milesight IoT Cloud
$90.00

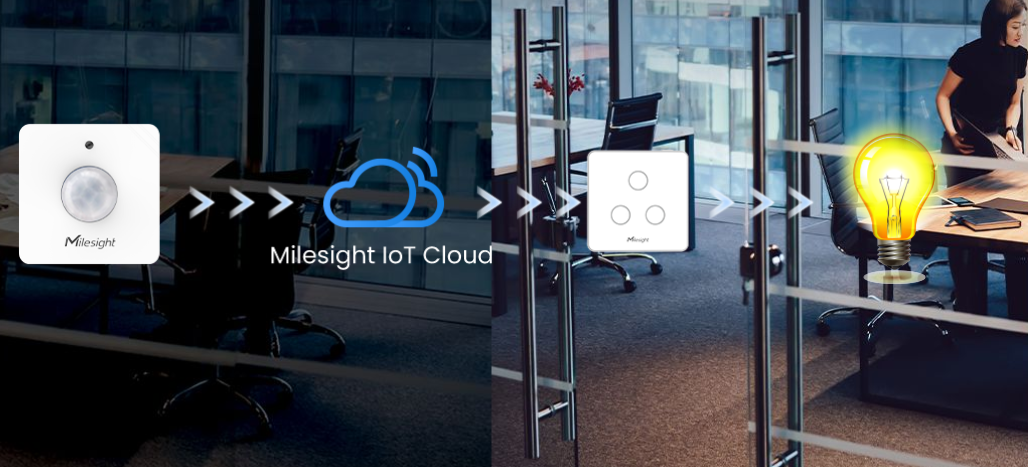

Milesight WS202 is a LoRa PIR sensor based on passive infrared technology to detect motion or occupancy. WS202 can detect movement six to eight meters away and send the changes via the LoRaWAN® network. Further, the WS202 is equipped with light sensors that can link PIR detection results to trigger scenes. Being compact and battery-powered, WS202 is easy to install everywhere. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the alarm or occupancy of rooms and trigger other sensors or appliances easily via a webpage or mobile app remotely. WS202 can be widely used in smart homes, smart offices, schools, warehouses, and more!
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 1.97 × 1.97 × 0.94 in |
| Brand | Milesight |
| Model Number | WS202-915M |
| Dimensions | 50 mm × 50 mm × 23.8 mm (1.97 in. × 1.97 in. × 0.93 in.) |
| Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Light |
| Power | 1650 mAh Li/SOCl₂ Battery |
| Battery Life | 4 Years |
| Warranty | 2 Years |
