Detects CO₂
🌡 Temperature (MEMS): –20 °C to 60 °C ±0.2 °C
💧 Humidity (MEMS): 0 to 100% RH ±2% RH
🏃 Motion (PIR): 80° horizontal, 55° vertical, 5 m
☀ Light (photodiode): 0–60000 lux
🚬 TVOC (MEMS) 1.00 to 5.00 ±1
🗜 Pressure (MEMS) 260 to 1260 hPa ±0.5 hPa
☁ CO₂ (NDIR): 400 to 5000 ppm ±[30 ppm + 3%]
$486.00
AM307 is a compact indoor ambiance-monitoring sensor that measures temperature, humidity, light, motion, CO₂, TVOC, and barometric pressure. The collected data will be shown on the E Ink screen in real-time, allowing you to quantify the indoor condition and comfort. Apart from the screen display, sensor data is also transmitted via LoRaWAN®. Combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. Use the AM307 for offices, stores, classrooms, hospitals, and more!
🔹 Multiple sensors like humidity, temperature, CO₂, and more

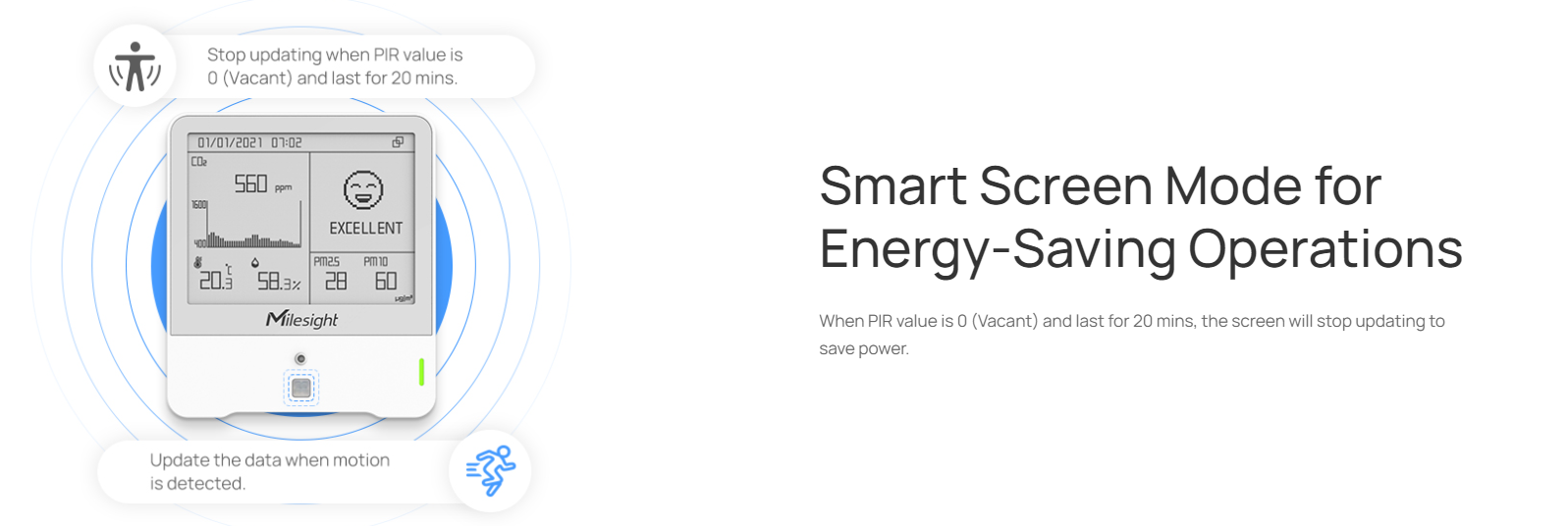

🔹 Visual data and clear emoticon to understand the comfort level easily via E Ink screen
🔹 Traffic light indicator to indicate device status and threshold alarms

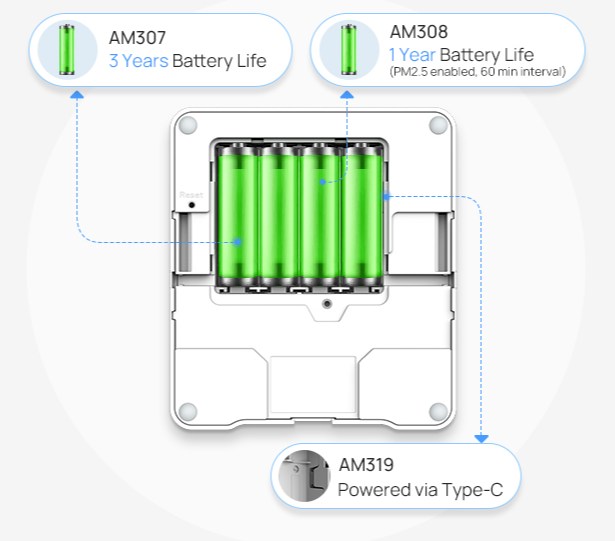

🔹 Battery lasts more than three years before needing replacement
🔹 Stores 18,000 historical records locally and supports retransmission to prevent data loss
🔹 Compatible with standard LoRaWAN® gateways
🔹 Quick and easy management with Milesight IoT Cloud solution
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 3.97 × 4.49 × 0.87 in |
| Brand | Milesight |
| Model Number | AM307-915M |
| Dimensions | 100.8 mm × 114 mm × 22 mm (3.97 in. × 4.49 in. × 0.87 in.) |
| Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Air Quality, Humidity, Light, Motion, Pressure, Temperature |
| Power | 2700 mAh Li/SOCl₂ Battery (×4), USB-C 5 V |
| Battery Life | 3 Years |
| Warranty | 2 Years |
