☔ IP67 rated
🔹 3–50 cm-wide measuring range with short blind zone
🔹 Easy to install, suitable for various types of waste bins or containers
🔹 Built-in triple-axis accelerometer sensor to monitor device tilt status
🔹 IP67 waterproof and salt spray resistant enclosure for outdoor applications and easy to clean
🔹 Ultra-wide-distance wireless transmission up to line of sight of 15 km
🔹 NFC for easy configuration
🔹 Compatible with standard LoRaWAN® gateways and network servers
$168.00

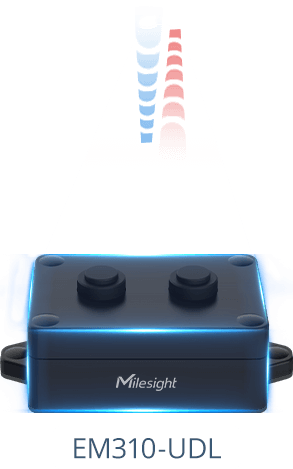

EM310-UDL is a LoRaWAN® ultrasonic distance sensor that can detect the height of a trash in a waste bin. With a compact size and wide measuring range, the EM310-UDL can be installed to any type of waste bin or container to monitor the level. Further, the EM310-UDL triple-axis accelerometer can detect the status of the container cover. Sensor data is transmitted via LoRaWAN®. Combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually while receiving alarms via the mobile app. Use the EM310-UDL for waste management, water tank monitoring, manhole cover monitoring, and more.
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 4.37 × 2.44 × 1.57 in |
| Brand | Milesight |
| Model Number | EM310-UDL-915M |
| Dimensions | 111 mm × 62 mm × 40 mm (4.37 in. × 2.44 in. × 1.57 in.) |
| Temperature | –15 °C to 60 °C (5 °F to 140 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Distance, Level |
| Power | 3500 mAh Li/SOCl₂ Battery (×2) |
| Battery Life | 10 Years |
| Warranty | 2 Years |
