☔ IP67 rated
🔹 Range/accuracy: 0.3 to 10 m ± 1% FS
📏 Distance and level detection: Capable of object distance or level detection without physical contact.
📡 Long-range transmission: Offers ultra-wide-distance transmission with a line of sight range of up to 10 km.
🔋 Long battery life: Equipped with a built-in 19000 mAh replaceable battery, providing up to 10 years of operation without replacement.
🔗 NFC for easy configuration: Includes NFC for convenient and straightforward configuration.
🌐 LoRaWAN compatibility: Compliant with standard LoRaWAN® gateways and network servers.
☁ Cloud management: Provides quick and easy management through the Milesight IoT Cloud solution.
🌊 Applications: Suitable for various outdoor scenarios, including water level monitoring, flood monitoring, and smart agriculture applications like grain silo level monitoring.
$855.00

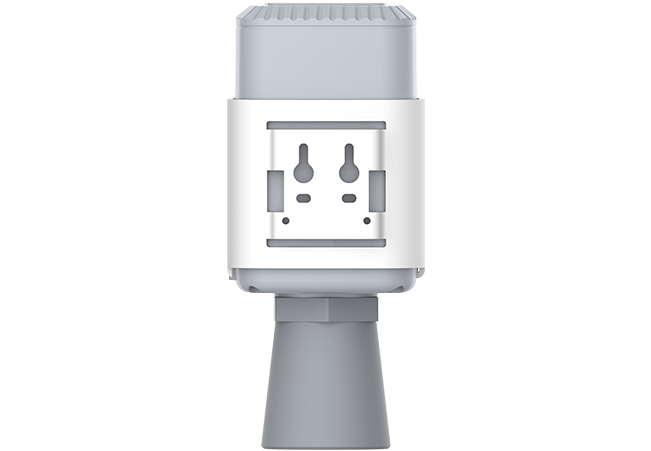

The EM500-UDL is designed for distance or level detection in harsh environments and data transmission using LoRaWAN® technology. This sensor features low power consumption, allowing it to operate for up to 10 years with its 19000 mAh battery. When combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can remotely and visually manage all sensor data. The EM500-UDL finds wide applications in outdoor scenarios, including flood monitoring and granary-level monitoring.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 6.15 × 2.8 × 2.74 in |
| Brand | Milesight |
| Model Number | EM500-UDL-915M-W050 |
| Dimensions | 156.1 mm × 71 mm × 69.5 mm (6.1 in. × 2.8 in. × 2.7 in.) |
| Temperature | –30 °C to 65 °C (–22 °F to 149 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Distance, Level |
| Power | 19000 mAh Li/SOCl₂ Battery |
| Battery Life | 10 Years |
| Warranty | 2 Years |
