☔ IP67 rated transceiver
🌡 Temperature: –200 °C to 50 °C ± 0.5 °C
🌡 Wide temperature range—The EM500-PT100 temperature sensor is designed to measure a broad range of temperatures in challenging environments, making it versatile for various applications.

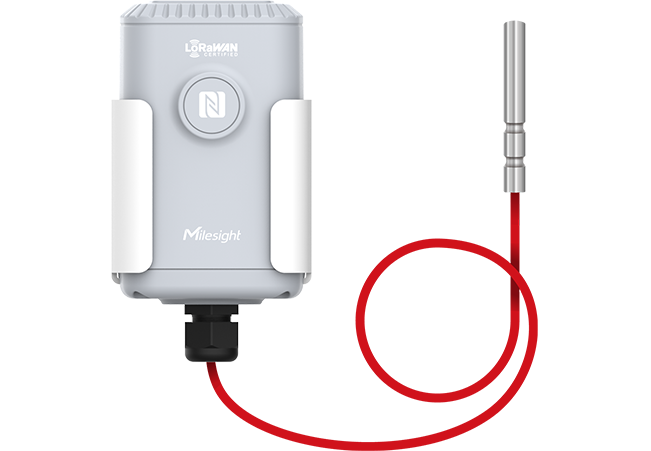

🔗 Corrosion-resistant design—Featuring a corrosion-resistant cable and multiple probe options, this sensor is built to withstand harsh conditions and ensure long-term durability.
🎯 High-precision measurement—With a three-wire connection, this sensor offers high precision in temperature measurement, providing accurate data for critical applications.
📡 Extended wireless range—Benefit from an ultra-wide-distance transmission capability, reaching up to 10 km in line-of-sight scenarios, ensuring data collection in remote areas.
🌊 Ready for tough conditions—Housed in an IP67 waterproof enclosure, this sensor is well-suited for harsh environments, making it ideal for a wide range of industrial and monitoring applications.

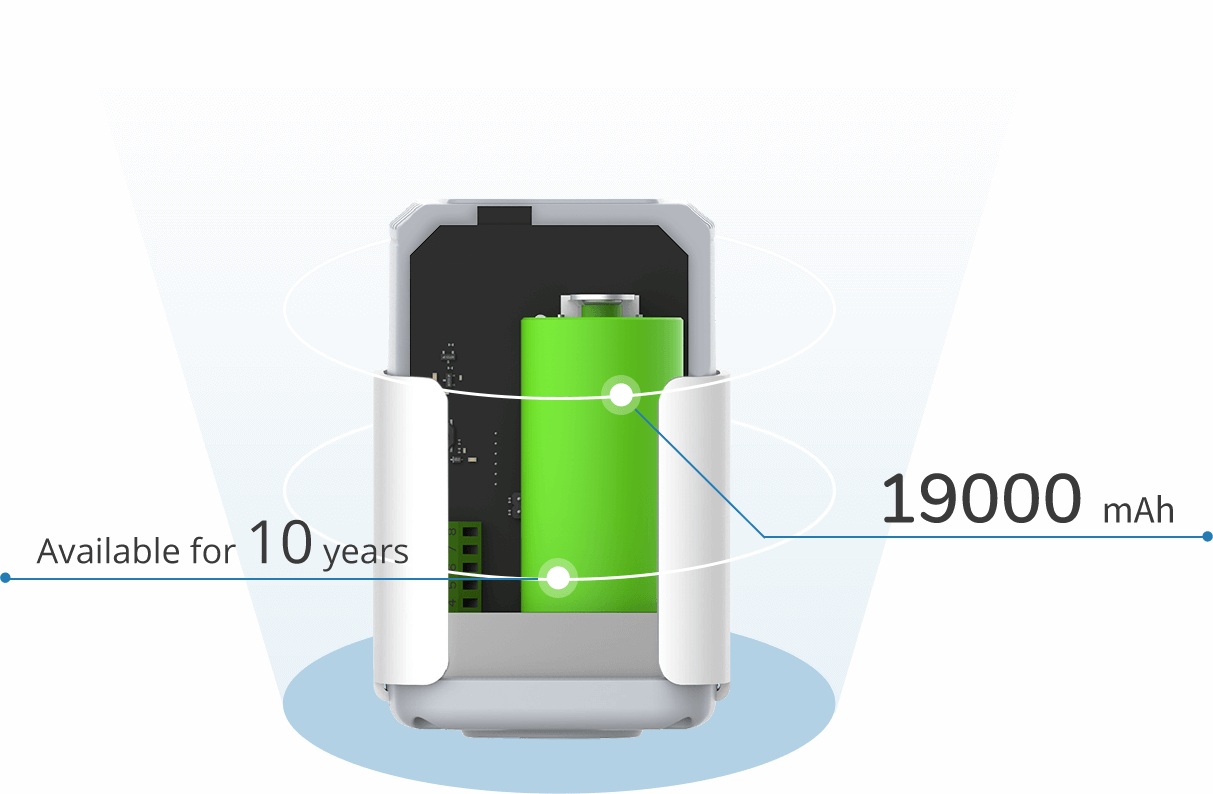

🔋 Long-lasting performance—Equipped with a 19000 mAh replaceable battery, the EM500-PT100 can operate continuously for up to 10 years, minimizing maintenance efforts.
🏠 NFC configuration—Streamline the setup process with NFC technology, simplifying the configuration of this sensor for easy deployment.

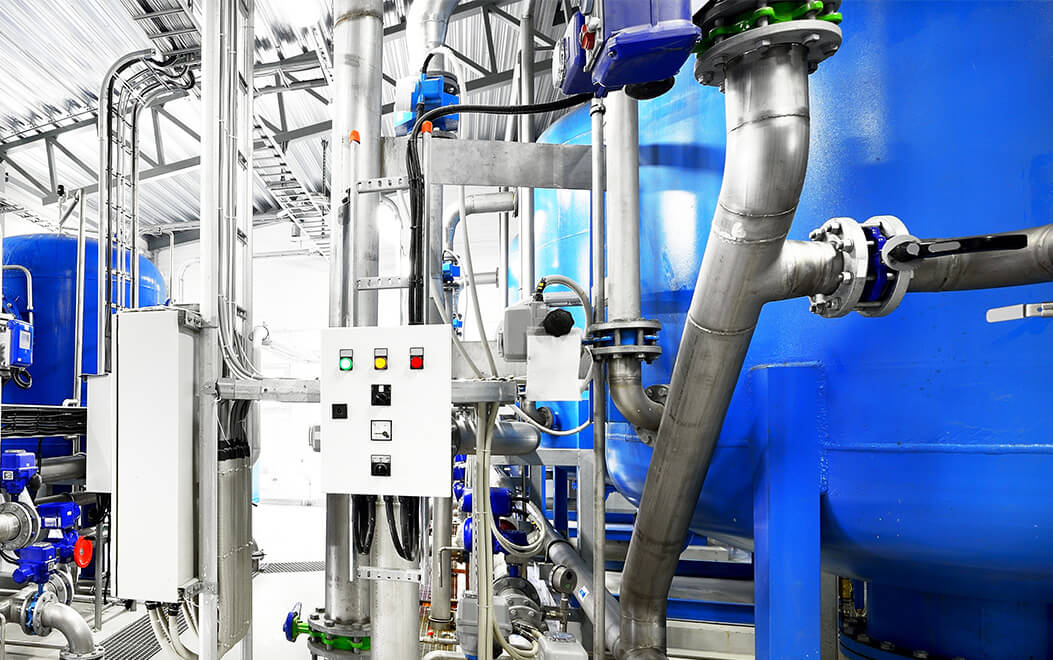

🏭 Diverse applications—From liquid and gas monitoring to industrial machinery, oven and cooking processes, chimney and boiler temperature monitoring, and medical or laboratory use, this sensor serves various temperature monitoring needs.
📊 Remote data management—When integrated with the Milesight IoT Cloud solution and LoRaWAN® gateway, users gain remote and visual control over all sensor data, enhancing convenience and efficiency.
$255.00
The EM500-PT100 resistance temperature sensor is designed for measuring a wide range of temperatures in harsh environments and transmitting data using LoRaWAN® technology. This sensor boasts low power consumption, allowing it to operate for up to 10 years with its 19000 mAh battery. When combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can remotely and visually manage all sensor data. The EM500-PT100 is widely used for temperature monitoring applications such as industrial machines, ovens, pipes, and more.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 4.15 × 2.8 × 2.74 in |
| Brand | Milesight |
| Model Number | EM500-PT100-915M-T050 |
| Dimensions | 105.4 mm × 71 mm × 69.5 mm (4.1 in. × 2.8 in. × 2.7 in.) |
| Temperature | –30 °C to 70 °C (–22 °F to 158 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Temperature |
| Power | 19000 mAh Li/SOCl₂ Battery |
| Battery Life | 10 Years |
| Warranty | 2 Years |
