☔ IP67 rated transceiver, IP68 rated level sensor
🔹 Range/accuracy: 0 to 5 m ± 0.5% FS
🌊 Liquid level measurement—The EM500-SWL is tailored for measuring liquid levels in challenging environments, making it suitable for diverse applications.
🔗 Corrosion-resistant probe—Featuring a stainless probe with corrosion resistance, this sensor is built to withstand harsh conditions and ensure long-term durability.
📡 Extended wireless range—Benefit from an ultra-wide-distance transmission capability, reaching up to 10 km in line-of-sight scenarios, ensuring data collection in remote areas.
🌊 Ready for tough conditions—Housed in an IP67 waterproof enclosure, this sensor is well-suited for harsh environments, making it ideal for liquid level monitoring in various industrial and environmental applications.

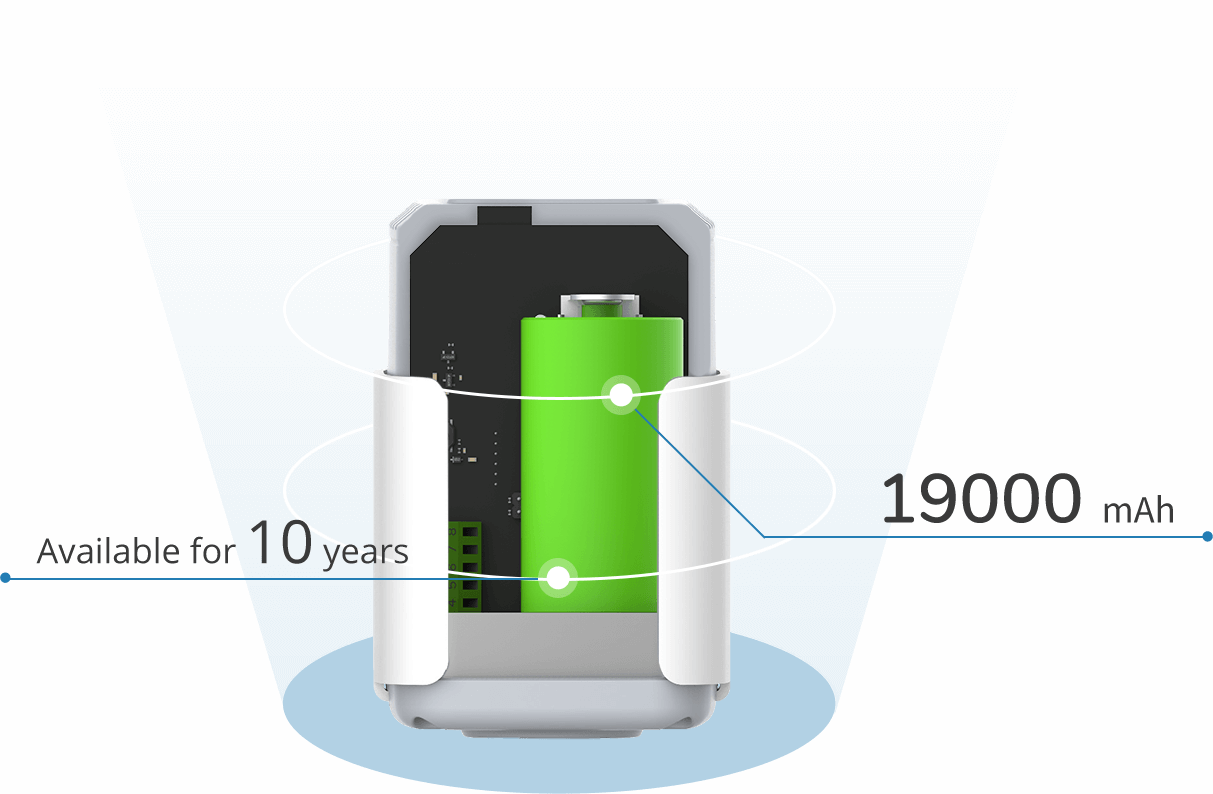

🔋 Long-lasting performance—Equipped with a 19000 mAh replaceable battery, the EM500-SWL can operate continuously for up to 10 years, minimizing maintenance efforts.
🏠 NFC configuration—Streamline the setup process with NFC technology, simplifying the configuration of this sensor for easy deployment.
🏭 Diverse applications—From water tank level monitoring and water resource level monitoring to ISO tank level monitoring, waste water tank monitoring, and oil store tank level monitoring, this sensor serves various liquid level monitoring needs.
📊 Remote data management—When integrated with the Milesight IoT Cloud solution and LoRaWAN® gateway, users gain remote and visual control over all sensor data, enhancing convenience and efficiency.
$510.00
The EM500-SWL is designed for measuring liquid levels in harsh environments and transmitting data using LoRaWAN® technology. This sensor features low power consumption, allowing it to operate for up to 10 years with its 19000 mAh battery. When combined with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can remotely and visually manage all sensor data. The EM500-SWL is widely used for applications like tank level monitoring, river level monitoring, and more.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 4.15 × 2.8 × 2.74 in |
| Brand | Milesight |
| Model Number | EM500-SWL-915M-L005-4846W |
| Dimensions | 105.4 mm × 71 mm × 69.5 mm (4.1 in. × 2.8 in. × 2.7 in.) |
| Temperature | –30 °C to 70 °C (–22 °F to 158 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Distance, Level |
| Power | 19000 mAh Li/SOCl₂ Battery |
| Battery Life | 10 Years |
| Warranty | 2 Years |
