☔ IP67 rated transceiver
Non-rechargable 19000 mAh battery
📡 Sensor connectivity simplified—The UC500 Series is a versatile LoRaWAN® controller designed for seamless sensor connectivity.
🌧 All-weather operation—With an IP67 waterproof rating, these controllers can operate reliably in all weather conditions.
🌏 Wide connectivity range—Compatible with industry-standard LoRaWAN® gateways, offering a range of up to 15 km in rural areas and 2 km in urban areas.
🔧 Industrial interfaces—Rich industrial interfaces including RS232, RS485, GPIO, and analog input enable connection to various sensors and appliances.

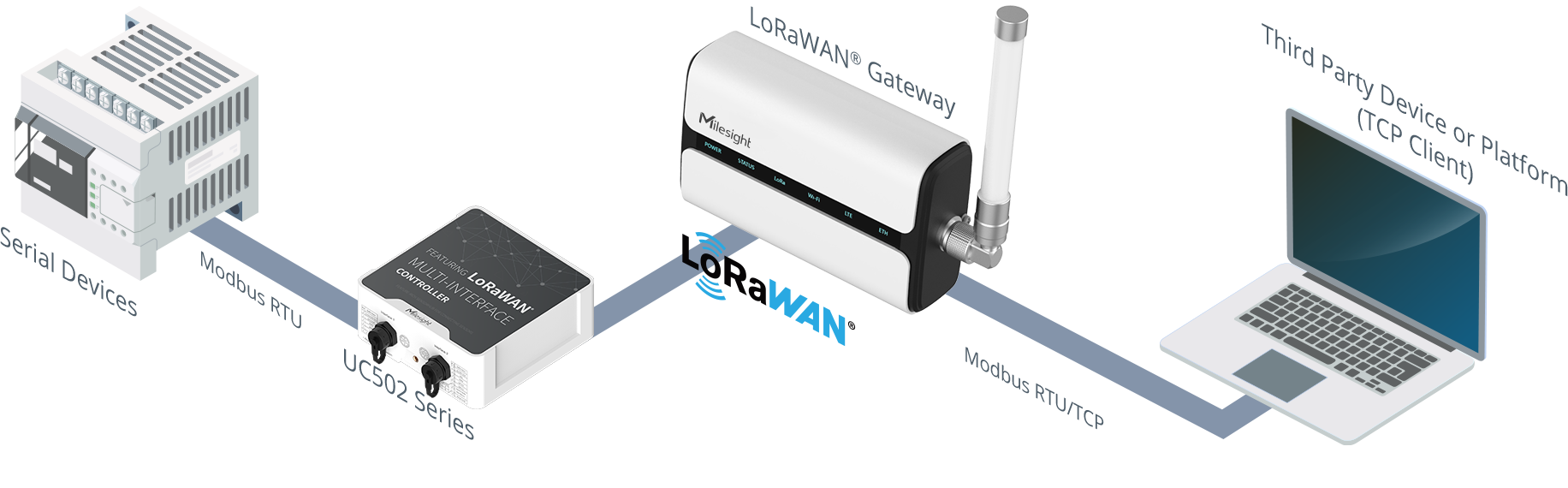

🔄 Modbus conversion—Acts as a Modbus to LoRaWAN® Converter, facilitating the bridging of Modbus data between serial and Ethernet networks via LoRaWAN.
📊 Pulse counter—Monitors gas, water, electricity consumption, or electricity production.
📊 Milesight IoT Cloud—Easily stores, manages, and analyzes data, with Android & iOS versions available for device management.
🏆 Versatile solution—These controllers offer a robust solution for a wide range of applications thanks to their feature-rich design and flexibility.
$246.00
The UC50x Series is a versatile LoRaWAN® controller designed for data acquisition from various sensors and equipment. It offers different I/O interfaces, including analog input, digital input, digital output, serial port, and more, making it easy to deploy and replace LoRaWAN® networks. The UC50x series supports quick and simple configuration via NFC or a wired USB port. For outdoor applications, it provides flexible power options like a built-in solar panel or a high-capacity battery and features an IP67-rated enclosure and M12 connectors for protection against water and dust in harsh environments.
| Weight | 4 lbs |
|---|---|
| Dimensions | 4.73 × 4.73 × 2.18 in |
| Brand | Milesight |
| Model Number | UC502-915M |
| Dimensions | 120.1 mm × 120.1 mm × 55.4 mm (4.73 in. × 4.73 in. × 2.18 in.) |
| Temperature | –20 °C to 60 °C (–4 °F to 140 °F) |
| Sensor Form Factor | Controller |
| Application | Smart Building |
| Technology | LoRaWAN |
| Power | 19000 mAh Li/SOCl₂ Battery |
| Warranty | 3 Years |
