☔ IP67 rated
📏Distance (pressure): ≤ 2.5 m ± 0.5%.
📌Pressure-based liquid-level detection: Utilize pressure-based technology for accurate liquid level detection.
📱Remote monitoring: Enable remote monitoring capabilities through a wireless module, ensuring seamless connectivity and accessibility.
🗨Three pipe thread sizes: Choose from a variety of pipe thread sizes (1.5, 2, 2.25 inches) for versatile installation options.
🔋Low power consumption: Experience energy efficiency with a low power consumption battery and the option for external power as needed.
$264.00

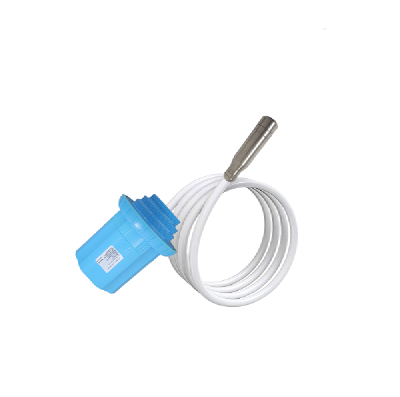

The DF556 liquid-level sensor uses a submerged pressure sensor to determine the height of the liquid it is submerged in. Using this technique, the DF556 can achieve an accuracy of 0.5%, with standard measurement ranges being up to 2.5 meters. This sensor is integrated with LoRaWAN and other wireless modules like NB-IoT, CAT-M, 4G LTE, and more. The DF556 has a wide range of applications including liquid tanks, sewage, industrial water, pools, and rivers.
| Weight | 2 lbs |
|---|---|
| Dimensions | 4.8 × 3.78 × 3.78 in |
| Dimensions | Enclosure: 122 mm × 96 mm × 96 mm (4.8 in. × 3.78 in. × 3.78 in.); Sensor: 140 mm × 30 mm × 30 mm (5.51 in. × 1.18 in. × 1.18 in.) |
| Brand | Dingtek |
| Model Number | DF556 |
| Temperature | –30 °C to 85 °C (–22 °F to 185 °F) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Distance, Level |
| Power | 8500 mAh Li-ion Battery |
