Battery Included
☔ IP67 rated
☔ IP67 rating: Suitable for outdoor or extreme environments, ensuring reliable performance in challenging conditions.
🔹 Multifunctional: Features two generic inputs for external sensors and four internal sensors for comprehensive monitoring capabilities.
🔋 Long-lasting battery life: Enjoy up to 10 years of operation without frequent battery changes, ensuring continuous monitoring and minimal maintenance.
💡 Smart configurability: Effortlessly adjust sensor settings via NFC or downlink commands, ensuring seamless integration with your specific requirements.
🔧 Customizable: Configurable for various external sensors and functionalities, offering flexibility for diverse applications and requirements.
$172.00
The ELT2 is a wireless LoRaWAN® multifunctional sensor for versatile applications. With an IP67 rating, it is suitable for outdoor or extreme environments. In addition to four internal sensors: temperature, humidity, accelerometer, and atmospheric pressure, the ELT2 features two generic inputs, allowing simultaneous measurement from up to two external sensors. With a long battery life of up to 10 years, maintenance is minimal, and battery replacement is hassle-free. Configuration adjustments, including sample rate, data rate, encryption keys, triggers, and activation, are easily managed via NFC with a smartphone or through downlink commands.

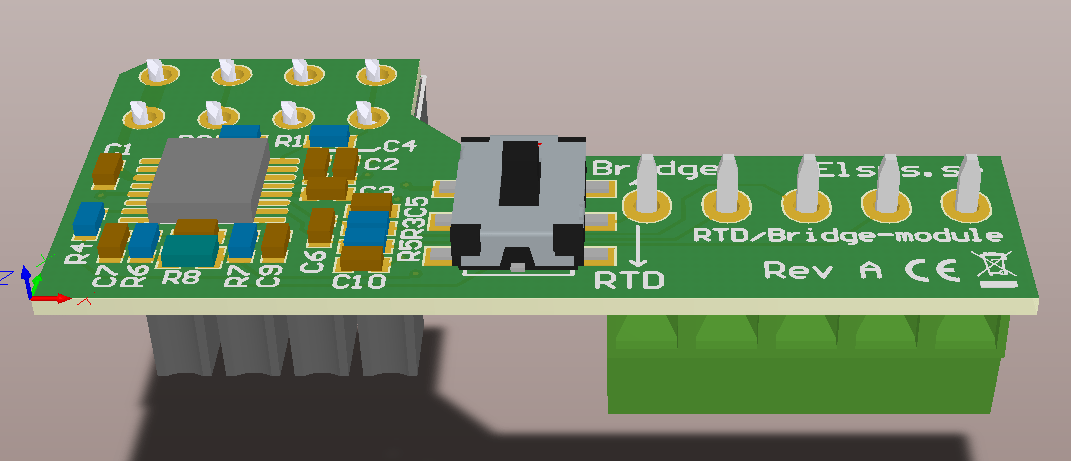

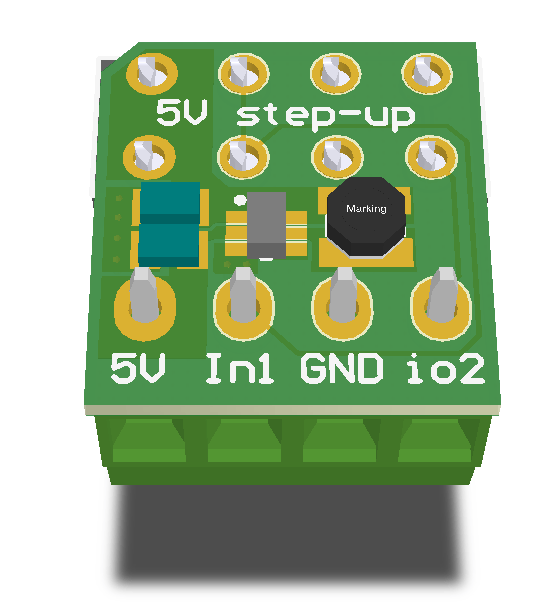

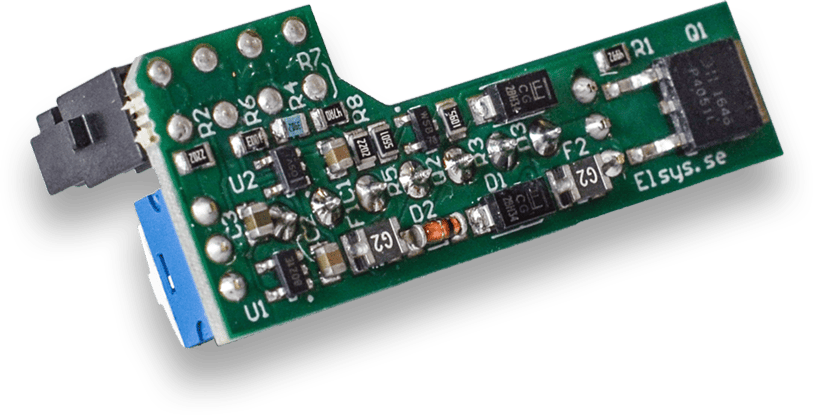

The ELT2 can be configured for various external sensors and functionalities, such as temperature probes, pulse counting, analog 0–10 V input, digital input, water leak detection, switch, distance sensor, soil moisture sensor, and more. Additionally, add-on modules are available for extra features like external PT1000 sensors, load cell input, or output control.
Antennas and batteries not included. This product requires one AA 3.6 V lithium battery (ER14505).
Important!
For applications with external sensors, tighten the cable gland properly for the sensor to be IP67-rated.
For applications without external sensors, replace the cable gland with a plug or a breathable membrane for the sensor to be IP67-rated.
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 3.7 × 2.32 × 1.38 in |
| Included Items | 1× 3.6 V Lithium AA Battery |
| Brand | ELSYS |
| Model Number | ELT2-HP |
| Dimensions | 94 mm × 59 mm × 35 mm (3.7 in. × 2.32 in. × 1.38 in.) |
| Sensor Form Factor | Sensor |
| Application | Condition Monitoring |
| Technology | LoRaWAN |
| Sensor Type | Acceleration, Humidity, Pressure, Temperature |
| Power | 3.6 V ER14505 Lithium AA Battery |
| Battery Life | <10 Years |
| Warranty | 1 Year |
